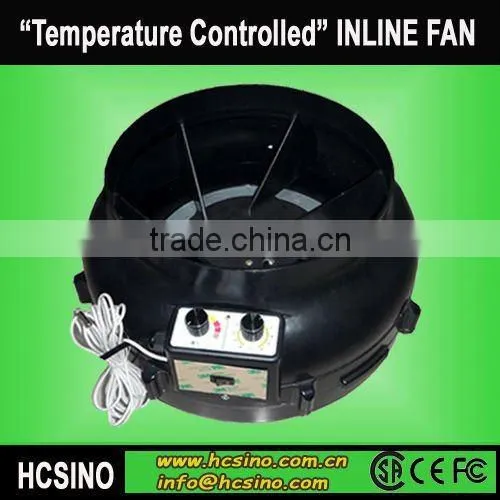

HCSINO "Temperature Controlled" Ventilation AC Fan

Specifications

Temperature Controlled,Variable Speed
High quality moulded impeller
Thermally protected AC motor
With CE,EMC,FCC,SAA Certif

[HCSINO Quality] Hydroponics Speed & Temperature Controlled AC Ventilation Fans

*Configurable idle speed

*Configurable temperature setting

*Remote probe with 4m cable

*Integrated thermal cut-out with automatic reset

*High-quality moulded impeller

*Easy installation and dismantling

*Duct mountable in many positions, bracket included



There are two control dials to set the required temperature and airflow. If the air temperature rises above the thermostat threshold (maximum set temperature), the motor will automatically switch to the maximum speed.
As the air temperature drops below the thermostat threshold the motor will switch to the pre-set speed to maintain the desired temperature.

Temperature controlled ventilation provides the ideal solution for horticultural spaces that experience the temperatures of HID lighting, giving plants a more stable growing environment and higher productivity.

Colour available: Black, White ,etc

It is used to transmit and strengthen the air flow inside a network of ventilation ducts.

The Plastic Inline Duct Fan is equipped with ball bearing and visible propeller with a protective grate. The installations can be mounted horizontally and vertically.

The propeller blades are directed backwards, ensuring higher pressure and work effciency.

The casing is made from Plastic (ABS) and the fan sat included fixings for a secure installation.



Specific technical parameters

Model	Voltage	Frequency	Power	Rotate	Air Flow	Pressure
(HCEU-TC)	(V )	(HZ)	(W)	(R/Min)	(M3/H)	(Pa)
Φ100mm	120 / 230	60 / 50	69	2590	0~350	360
Φ125mm	120 / 230	60 / 50	71	2535	0~440	390
Φ150mm	120 / 230	60 / 50	100	2350	0~610	430
Φ160mm	120 / 230	60 / 50	130	2580	0~700	475
Φ200mm	120 / 230	60 / 50	190	2150	0~1050	620
Φ250mm	120 / 230	60 / 50	195	2250	0~1200	635
Φ305mm	120 / 230	60 / 50	245	2450	0~1850	690
Φ315mm	120 / 230	60 / 50	250	2520	0~1900	720
