Specifications
Cosmetic Discharge Machine
1. Widely used for liquid and viscous material filling
2. SS304, SS316, Q235-B
3. CE, ISO, SGS
High Viscosity Discharging Machine
China Chemical High Viscosity Discharging Machine Price
word $
Introduction of The Discharge Machine
1. Discharge Machine is a machine assorts to Planetary Mixer or Dispersion machine or Power mixer
2. Discharge Machine is widely used for filling liquid material, especially viscous materials.
3. Discharge Machine has a simple structure and it's easy to operate. The aircraft is made of the rack, lifting frame, cylinder, pressure plate, hydraulic system, the regulator system, the material flow control system, electric control box.
4. Discharge Machine can be equipped with vacuum system, which increase a vacuum-sealed cover on the based of the hydraulic discharge machine, to strengthen the rack and can meet the demand of special high viscosity materials in a vacuum state.
High Viscosity Discharging Machine Machine
Technica Parameters of The Discharge Machine
Model |
Volume(Liters) |
Structure |
Pressure |
Oil pump power |
Oil cylinder |
YLJ-20 |
20 |
Single-Arm |
~2T |
/ |
ΦD120/d60/H600 |
YLJ-60 |
60 |
Single-Arm |
~8T |
2.2w |
ΦD140/d80/H600 |
YLJ-100 |
100 |
Gantry Type |
~20T |
3kw |
ΦD160/d100/H700 |
YLJ-200 |
200 |
Gantry Type |
~30T |
3kw |
ΦD160/d100/H800 |
YLJ-350 |
350 |
Gantry Type |
~50T |
4kw |
ΦD180/d120/H900 |
YLJ-600 |
600 |
Gantry Type |
~80T |
5.5kw |
ΦD220/d160/H950 |
YLJ-1000 |
1000 |
Gantry Type |
~120T |
7.5kw |
ΦD230/d180/H1200 |
YLJ-2000 |
2000 |
Gantry Type |
~120T |
11kw |
ΦD300/d230/H1500 |
YLJ-4000 |
4000 |
Gantry Type |
~240T |
15kw |
ΦD300/d230/H1800 |
High Viscosity Discharging Machine Machine
Applications of The Discharging Machine
High Viscosity Discharging Machine

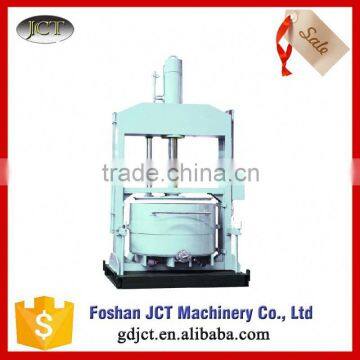

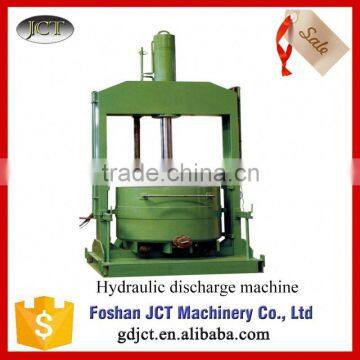

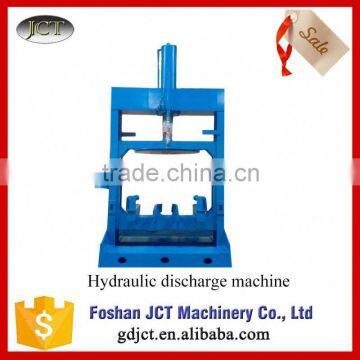

Pictures of The Discharge Machine
High Viscosity Discharging Machine
Discharge Machine
High Viscosity Discharging Machine

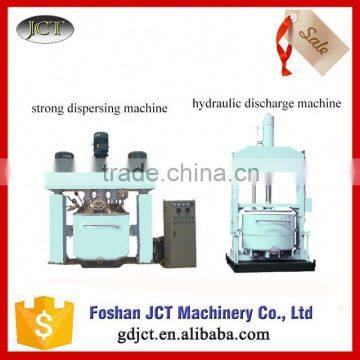

Dispersion machine and Discharge Machine 1
High Viscosity Discharging Machine
Dispersion machine and Discharge Machine 2
High Viscosity Discharging Machine
Experimental Planetary mixer and Discharge Machine
High Viscosity Discharging Machine Machine
Packaging &Shipping
Discharge Machine
High Viscosity Discharging Machine Machine
About Us
1.Introduction
1) Foshan JCT Machinery Co., Ltd formed at 2005, with 4,000 square meters factory. Professional R&D department with engineers of 20 years experiences, specialize in producing various types of blending, mixing, kneading, dispersing and response machines.
2) From 2009 our company open the door to overseas market. Now, we have stepped in Europe, Africa, the Middle East, South America and South Asia.
3) Any clients from the world are welcome.
High Viscosity Discharging Machine Machine
Why choose us?
High Viscosity Discharging Machine Stirred
1). Profession:
We have focused on this area for over 10 years, and the boss of JCT is a professional engineer who has 20 years’ experience in what we are concentrating on!
2). Powerful team:
A 5-experienced-engineer designing team + a 35-skilled-technician team + a 10-passionate-sales team make up the JCT big team.
3). Achievement:
JCT was set up at 2004, through about 10 years’ endeavor, our products has been sold to most important industrial district in China, such as Guangdong, Shangdong, Jiangsu, Zhejiang, Fujian and so on. And we have edged ourselves into the top 5 in China.
From 2009, JCT started the international marketing. Now, we have set our feet in North America, Europe, South Aria, Africa etc.
Some of the JCT's certificates and official documents.
Cosmetic Discharge Machine
High Viscosity Discharging Machine
