Specifications
high speed disperser for ink
1.Frequency control
2.Technology supply
3.Blending & Shearing
4.ISO9001, CE
1. Instruction of the Strong disperser:
1) The lab disperser is a good choices, which designed for mixing, vulcanization,
nitration, sulfonation, hydrogenation, dehydration in viscous fluid.
2) The lab disperser has 3 motors & 1 reducer. 2 high speed motor to cut the material.
The motor in center has reducer to output a big moment of force,its rotate E type blades
is designed for scraping the wall and the bottom.
3) The lab disperser has special seal structure to keep inside low up to -0.096Mpa.
4) There is a double layer jacket type movable vessels.The heat transfer media can
be chosen by thermal oil, water or steam.
5) The material mixing in the movable vessel, when it finished push it out.
6) The discharging mode are:YLJ series hydraulic discharging machine or ball valve.
7) There are variety of equipments can be installed such as: stroke control,
safety control, measurement, temperature Pt-Rh sensor, etc.
8) In default the steel is SUS304+Q235.The motor capacity will be selected according
to the viscosity of the material.
9) Other issues will be designed according to the best solution.
2.Strong Disperser applies for:
1) Silicone sealant
2) paint
3) cosmetics
4) Others: other viscosity liquid and paste material
disperser
high speed disperser for ink
3. The parameter of theStrong disperser:
|
Specifications and Models |
volume ( L) |
Motor Power (KW) |
Revolving Speed (rpm) |
Vacuum Degree (PMa) |
Remarks |
||
Mixing |
Dispersion |
Mixing |
Dispersion |
|
|
||
QF-5 |
5 |
1.1 |
1.1 |
~20 |
0-1000 |
-0.095 |
Laboratory Equipment |
QF-350 |
350 |
5.5 |
15*2 |
|
|||
QF-600 |
600 |
11 |
22*2 |
||||
QF-1100 |
1100 |
22 |
30*2 |
||||
|
1. Lifting Way: Hydraulic lifting 2. It can be heated and cooled as needed 3. Pressure range: -0.098MPa 4. Speed control method: Variable frequency speed regulating | |||||||
high speed disperser for ink
4. Pictures of the Strong disperser

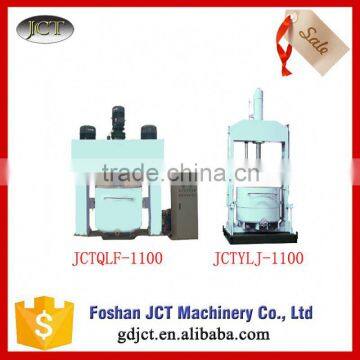

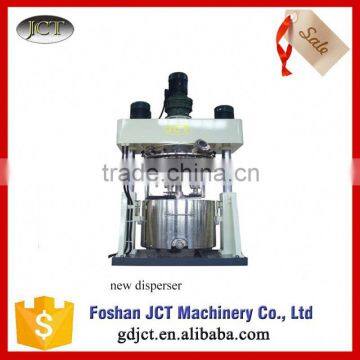

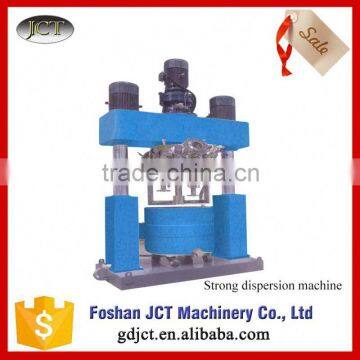

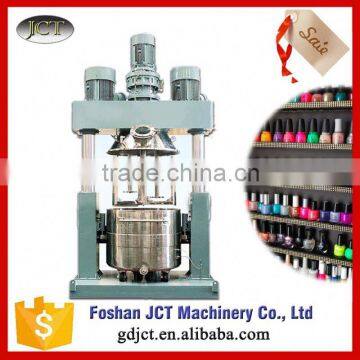

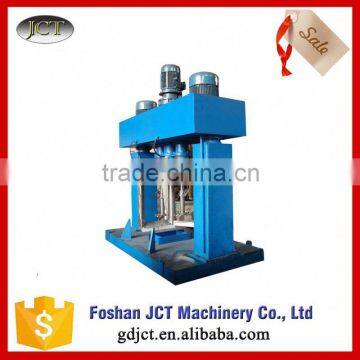

Large-scale Lab Disperser & Hydraulic discharge machine
Medium-scale Lab Disperser& Hydraulic discharge machine
Small-scale Lab Disperser& Hydraulic discharge machine
Blade of Strong Disperser
high speed disperser for ink
5.Packaging & Shipping Lab disperser
Lab disperser
1. Wooden case packing if necessery.
2. Very big machines packed by plastic bags OR nude package.
3. We can supply shipper, or buyer can assign the shippers.
Lab disperser
Company Information
1. Company Introduction
1)Foshan JCT Machinery Co., Ltd. (www.gdjct.en.china.cn)
2) Professional manufacturer for chemical machineries, with 13 years' rich experience in this field.
3) JCT specializes in all kinds of reactors, mixers, kneaders, dispersers and some filling machines and extruders etc. And the machines are widely used in all kinds of adhesives, resins, rubbers, paints, sealants, chemicals, emulsions and some food and pharmaceutical industries.
4) JCT Machinery Co., Ltd was formally set up at 2003, but the origianl entrepreneur team are all very professional engineers who were with 20 years' experience.
5) JCT's main markets: China, Europe, Africa, Middle East, South America and South Asia, we can sell machines to anywhere as long as it needs.
high speed disperser for ink
2. Certificates Lab disperser
high speed disperser for ink
3.Our Clients
Our Services
1. Warranty and After-sale Services
1) 18 months' free of charge warranty for all of our machines except of the pipes, valves, pumps etc.
2) 24 hours technical support by email, skype, mobile-phone.
3) Calling or door-to-door service.
4) Engineers are available to overseas for technical support or producing guidance.
5) Original manufacturers' price for quick-wear parts of our machines.
