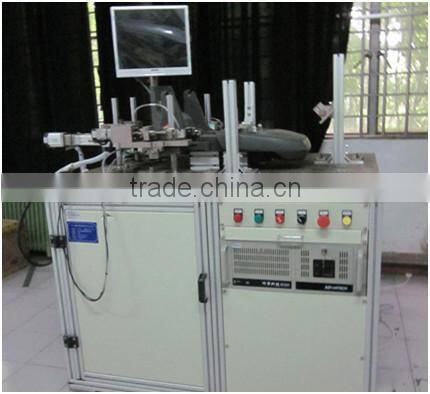

ISOFIX Connection Devices and Connectors Instructions Endurance Test

ISOFIX connection devices and connectors instructions Endurance Test

1.1 ISOFIX lock into and pulled out of the speed is easy to adjust and set 1-15 times / min;

1.2 ISOFIX lock into and pull stroke adjustable to meet various ISOFIX device 0-200mm;

1.3 ISOFIX unlock the operating speed of the device can be adjusted;

1.4 ISOFIX unlock stroke adjustable to meet various ISOFIX device 0-20mm;

1.5 ISOFIX lock into the angle adjustable to meet various ISOFIX device 0-30;

1.7 Inserting and unlocking actuator using electric servo control;

1.8 Configuring load displacement sensor that can collect and record data load and displacement;

1.9 controlled by computer program interface is simple and convenient to operate;

1.10 can be set to count the number of trials and correctly;

1.11 specimen installation range enough to meet a variety of ISOFIX device;

1.12 fault diagnosis, protection functions: specimen failure identification, load discrimination protection is not in place; with sound and light failure alarm;

1.13 test rig designed to meet different sizes and different test specimens mounted unlock button and hook action requirements;

1.14 has a manual mode, you can meet the test in manual, automatic test process control and fault identification;

1.15 Test Bench capability has expanded the ability to apply to changes in standards.

Applicable standard: GB 27887-2011 "motor vehicle occupant restraint system for children."

GB 14166-2015 "motor vehicle occupants to wear seat belts, restraint systems, child restraint systems."

Work voltage: 220V

Work power: 2.5KW
