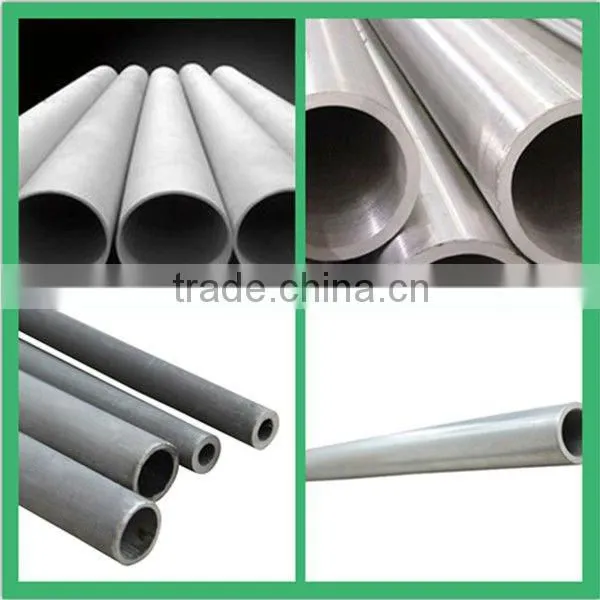

304Stainless Steel Welded Tube
US$ 1,000 - 10,000
MOQ: 1 Ton
Key Specifications
Get Latest Price
Standard:
AISI, ASTM
Place of Origin:
Zhejiang, China
Brand Name:
TL
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ASTM A312 304/316L Seamless Tainless Steel TubeNegotiableMOQ: 1 Ton -
ASTM A554 Welded Stainless Steel PipeUS$ 2,000 - 3,500MOQ: 1 Ton
-
Stainless Steel Profiled PipeUS$ 1,000 - 10,000MOQ: 1 Ton
-
Stainless Steel Capillary PipeUS$ 10 - 50MOQ: 500 Kilograms
-
Medical Stainless Steel PipeUS$ 10 - 25MOQ: 100 Kilograms
Standard
AISI, ASTM
Place of Origin
Zhejiang, China
Brand Name
TL
Model Number
Stainless steel welded tube
Type
Welded
Steel Grade
300 Series
Application
Fluid and gas transport,decoration, construction
Certification
ROHS
Welding Line Type
ERW
Thickness
0.1mm - 5mm
Outer Diameter
6.5mm - 200mm
Specifications
ASTM A554 Stainless steel welded tube1.Material grade:201,202,304,304L,316,316L,321,etc.
2.High quality
3.Best service
ASTM A554 304/304L Stainless steel welded tube
Detailed description
| Name | 304 Stainless Steel Pipe | |||||
| Standard | ASTM A554, A312, A249, A269 and A270 | |||||
| Material Grade | 304,304L,316,316L,202,201 | |||||
| Outer Diameter | 6.5mm-200mm | |||||
| Thickness | 0.1mm - 5mm | |||||
| Length | 6m or as customers' request | |||||
| Tolerance | a) Outer Diameter: +/- 0.2mm | |||||
| b) Thickness: +/- 0.02mm | ||||||
| c) Length: +/- 5mm | ||||||
| Surface | 180G, 320G Satin / Hairline(Matt Finish, Brush, Dull Finish)400G, 600G Mirror finish | |||||
| Application | Fluid and gas transport,decoration, construction,medical equipment, aviation, boiler heat-exchanger and other fields | |||||
| Test | Squash test, Extended test, Water pressure test, Crystal rot test, Heat treatment, NDT | |||||
| Payment | 30% T/T as deposit, the balance before shipment or L/C. | |||||
| Delivery time | 10~30 days ,according to the order quantity | |||||
| Packing | Bundled with knitted plastic bag, wooden cases or according to customers' request. | |||||
| Mechanical Property | Material Item | 201 | 202 | 304 | 316 | |
| Tensile Strength | ≥535 | ≥520 | ≥520 | ≥520 | ||
| Yield Strength | ≥245 | ≥205 | ≥205 | ≥205 | ||
| Extension | ≥30% | ≥30% | ≥35% | ≥35% | ||
| Hardness (HV) | <105 | <100 | <90 | |||
Stainless steel pipe chemical composition
| Grade | Chemical Composition % | ||||||||
| C | Cr | Ni | Mn | P | S | Mo | Si | N | |
| 1Cr17Mn6Ni5N (201) | ≤0.15 | 16.00-8.00 | 3.50-5.50 | 5.50-7.50 | ≤0.06 | ≤0.03 | ≤1.00 | ≤0.25 | |
| 1Cr18Mn8Ni5N (202) | ≤0.15 | 17.0019.00 | 4.00-6.00 | 5.50-7.50 | ≤0.06 | ≤0.03 | ≤1.00 | ≤0.25 | |
|
0Cr18Ni9 (304) |
≤0.07 | 17.00-19.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.03 | ≤1.0 | ||
|
00Cr18Ni10 (304L) |
≤0.03 | 18.00-20.00 | 8.00-10.00 | ≤2.00 | ≤0.035 | ≤0.03 | ≤1.0 | ||
| 0Cr17Ni12Mo2 (316) | ≤0.08 | 16.00-18.50 | 10.00-14.00 | ≤2.00 | ≤0.035 | ≤0.03 | 2.003.00 | ≤1.0 | |
| 0Cr17Ni14Mo2 (316L) | ≤0.03 | 16.00-18.00 | 12.00-15.00 | ≤2.00 | ≤0.035 | ≤0.030 | 2.00-3.00 | ≤1.0 | |

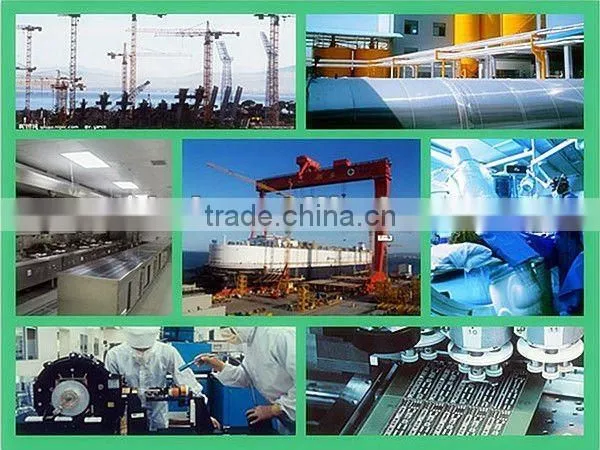

Application
About us
Our advantage:
We would like to introduce us as a professional manufacturer and exporter being of 20 years experience in stainless steel materials and products.
We have adopted a set of quality control system to ensure the reliability and stability of the products.We consistently insist on ‘quality first and customer first',your satisfactory is our constant pursuit and goal.
Our main products:
Stianless steel welded pipe
Stainless steel seamless pipe

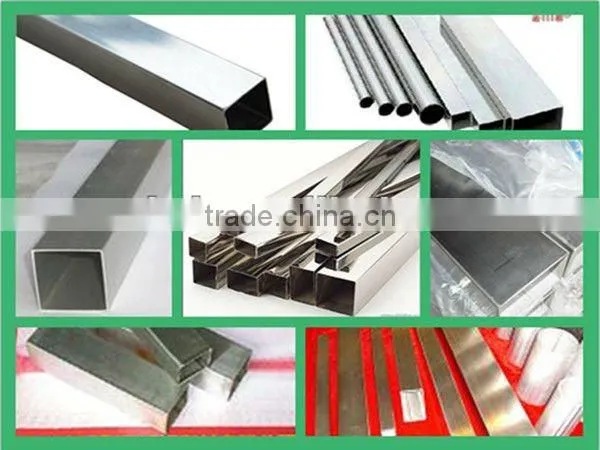

Stainless steel square pipe

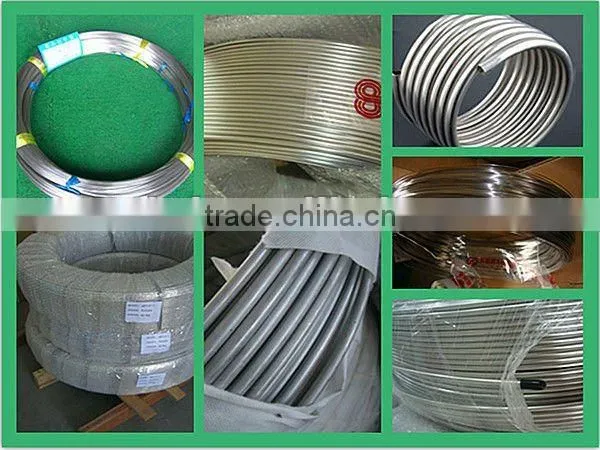

Stainless steel capillary pipe
Stainless steel coil pipe
Contact us
1)Company:Ningbo Tonglian International Trade Co.,Ltd.
2)Office Address: B706,No.66 Xing Ning Road,Ningbo,China 315040
3)Factory Address: No.6 Zhujiadu Industry Zone,Sanqishi Town,Ningbo,China 315412
4)Tel:86-574-89072106/2107/2108
5)Web:/
Send Inquiry to This Supplier
Mrs. MIN QIAN
Sales Manager
Yuyao Tonglian Stainless Steel Material Co., Ltd.
Ningbo, Zhejiang, China
Business Type
Manufacturer
Year Established
1995
Factory Size
3,000-5,000 square meters
Total Employees
11 - 50 People
