stainless steel coiled tube for beverage cooling.
Detailed Product Description
1,ASTM A269,
2,Length:300meter--1500M
3,O.D.6mm-12mm,W.T.0.5mm-1.5mm
4,Used for fluid and gas transport
Features:
1) Production Standard :ASTM A269;ASTM A249,
2) Material of commonly used stainless steel:TP304, TP316L; Material of other stainless steel: TP304L
3) Product applications and applicable field: refrigerating equipment, evaporators, gas/liquid conveying, condensers, beverage machinery
4)General product status at delivery: semi-hard status/bright annealing soft status
5) Specification range: outer diameter:6mm-19mm;
6) Annual production capacity: 500 tons
Applications:
Our precision stainless steel coiled tube which size is 8mm(outer diameter)*0.5mm(thickness) is widely used for beer machines in brewery industry such in Russia, Turkey,
Germany, Australia, etc .

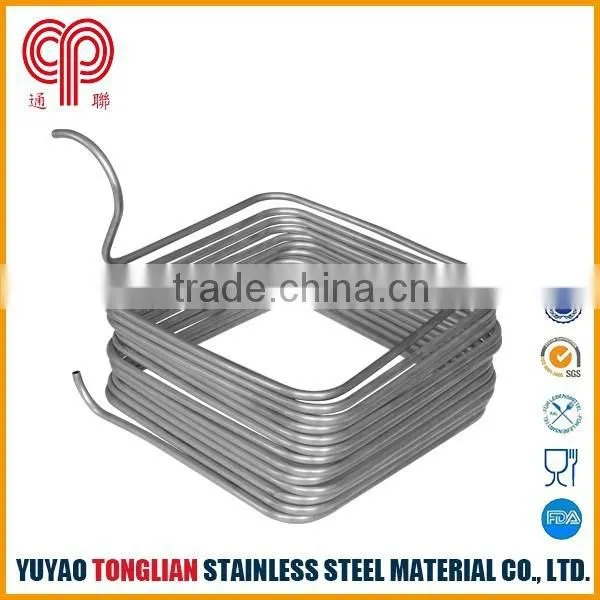

Coil Pipe Technical Parameters Set
1) Stainless Steel Pipe Measurement Range: outer diameter: 6-19mm; wall thickness: 0.41-1.5mm; the measurement tolerance as per ASTM A269 or ASTM A249
2) The outer diameter of the coil pipe>500mm; the inner diameter of the coil pipe<1000mm
3) The height of the coil pipe: 200mm-400mm
4) Max.length of each coil:<1000M min.length of each coil:>6m
5) General delivery length:200m-800m
6) Physical properties of bright-annealed coil pipe:
A. ratio of elongation no less than 55%
B. surface hardness no greater 170HV
C. tensile strength no less than 550N/MM2
D. yield strength no less than 220N/MM2
E. bending angle>1800;
min.bending radius<1.5*pipe diameter
7) Physical properties of general coil pipe (without bright annealing):
A. ratio of elongation no less than 35%
B. surface hardness greater than 180HV
C. tensile strength>600N/MM2
D. yield strength>280N/MM2
E. bending angle>900; bending radius>2*pipe diameter
8) Pressure resistance property: take 8*0.5*c coil pipe as an example, the work pressure to be borne by the inner wall is no less than 60BAR
Package:
