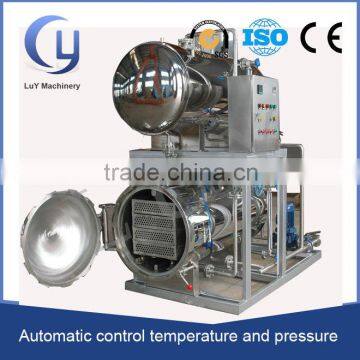

autoclave and retort
Sterilization ways:
Adopt wave type hot water spray , via more stage to increase temperature . Heating uniform ,Specially for after packing material to cooking and sterlization during short time
control ways:
A.using screen similated control ways
B.All during time have simulate sensor and automatic control valve
C.Single sterilization change over to multi-stage sterlization craft
ure and temperature is digital display
simulative temperature control system:
according to different food's sterlization condition to design raising and cooling program to make sure each kind of food in the best condistion to sterlize . which avoid peculiar smell because of high temperature and hign pressure
pefect pressure control system :
during production ,the pressure is changing ,which is suitable for inside packing pressure ,reduce deformation of packing , speclially for air packing product
Measurable water circulation system
according to tank condition to adjust water circulation
How many styles autoclave and retort ?
If you cannt find suitable from this page ,you can know more product from this
type :single sterlization autocalve ,double layer sterllization , double pot parallel sterilization,, three pots parallel type
sterlization method : spraying , water bath
heating ways: gas(diesel) steam heating or electricity heating
Applicable scope: glass container :glass bottle ,ceramic bottles
metal conainer:,tin can
plastic container:,PP bottle ,HDPE bottle
soft package: Aluminum foil bag ,high temperature cooking back ,gas packing boxes
| Model | ATP-09 | ATP-09 | ATP-10 | ATP-10 | ATP-10 | ATP-12 |
ATP-12 |
ATP-12 | ATP-14 | ATP-15 |
ATP-15 |
ATP-15 |
| Length of cylinder(mm) | 900 | 1800 | 1800 | 2400 | 2700 | 1800 | 2700 | 3600 | 4000 | 4000 | 5000 | 6000 |
| Capacity(m3) | 0.78 | 1.35 | 1.80 | 2.16 | 2.40 | 2.60 | 3.70 | 4.80 | 6.89 | 7.97 | 9.73 | 11.50 |
| Material thickness(mm) | 4 | 4 | 4 | 4 | 4 | 5 | 5 | 5 | 6 | 6 | 6 | 6 |
| Installed power(Kw) | 6 | 7 | 8.5 | 10 | 12 | 13.5 | 15.5 | 18.5 | 26 | 26 | 37 | 45 |
| Design pressure(Mpa) | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 | 0.35 |
0.35 |
| Design temperature(°c) | 147 | 147 | 147 | 147 | 147 | 147 | 147 | 147 | 147 | 147 | 147 | 147 |
| Voltage(v) | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 | 380 |
Diagram :
What we can supply for you ?
1.Our product use famous steel factory ‘s STAINLESS STEEL .And we use automatic submerged arc welding technology .The main pressure part have good resistance .
2.Each welding line will be tested by flaw detection machine ,and record its feature .
3.Our soldering flux is for special presure vessle ,it pass CCS,GL ,BV,ABS ,DNV,NK and so Classification society factory apprval
4.Our each equipment will be asseble in the factory before shipping to avoid some parts loss
5.Once you purchase our equipment ,we will supply your installation drawing and related documents and our engineer is avaiable to be over aborad to supply installation service
