5L Blow Molding Plastic Water Bottle Making Machinery With Pneumatic Cylinder

5L Blow Molding Plastic Water Bottle Making Machinery With Pneumatic Cylinder thumbnail-1
5L Blow Molding Plastic Water Bottle Making Machinery With Pneumatic Cylinder thumbnail-2
5L Blow Molding Plastic Water Bottle Making Machinery With Pneumatic Cylinder thumbnail-3
5L Blow Molding Plastic Water Bottle Making Machinery With Pneumatic Cylinder photo-1
5L Blow Molding Plastic Water Bottle Making Machinery With Pneumatic Cylinder photo-2
5L Blow Molding Plastic Water Bottle Making Machinery With Pneumatic Cylinder photo-3
US$ 30200.00 - 30200.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Yuhuan Tonva Plastics Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Bottle
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Zhejiang, China
Brand Name TONVA
Model Number TVD-5L
Voltage 380V
Power(W) 22kW
Dimension(L*W*H) 3.3*2.1*2.2
Weight 4200kg
Certification ISO9001;BV;CE;SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

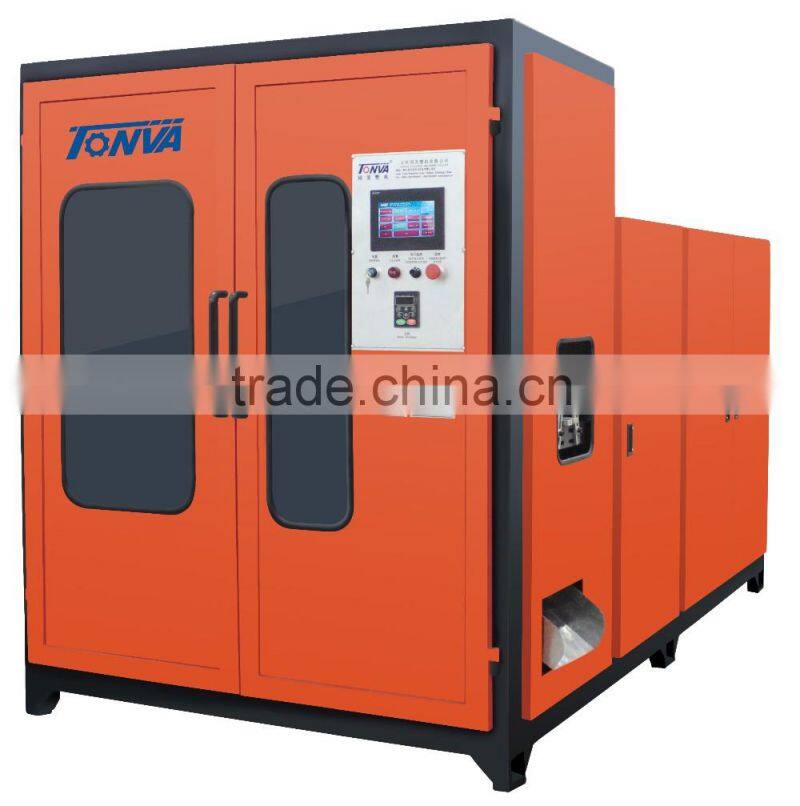

Double Station/Pneumatic System Of 5L Extrusion Blow Moulding Machine


TVD-5L Basic Specification:

* Double Station
* 80mm screw / 22kw motor;
* PE etc material;
* Automatic Trimming: Neck/Bottom/Handle/Slides;
* Die-heads for choosing:
   Single die-head(2L to 5L) ---at 180pcs per hour;

   Double die-heads(1.5L to 2L)---at 600pcs per hour;

   Triple die-heads(500ML to 1.5L)---at 900pcs per hour;

   Four die-heads(200ML to 500ML)---at 2000pcs per hour;

   Five die-heads(150ML-200ML)---at 3000pcs per hour;

   Six die-heads(up to 150ML)---at 2800pcs per hour;

* Center distance:

   Six die-heads---60mm;Five die-heads---80mm;Four die-heads---100mm;Triple die-heads---120mm;Two die-heads---200mm;


TVD-5L Working condition:
* Power supply: 380VAC/50Hz (depending on client's country)
* Water Cooling: 20℃(5HP Water chiller)
* Air source: 0.6Mpa, 1.0m³/min (1.0 m³/min air compressor)

TVD-5L Technical Parameter
CATEGORY
ITEM
UNIT
TVD-5L

Basic Specification
Raw Material
--
PE/PP/PA/PVC etc
Dimension
m
3.3*2.1*2.2
Total Weight
kg
4200




Extrusion System
Diameter of screw
mm
80
Screw L/D ration
L/D
25:1
Plasticizing capacity
kg/h
95
Number of heating zones
pcs
6
Extruder heating power
kw
20
Extruder drive power
kw
22

Die Head
Number of heating zones
pcs
2
Heating power
kw
5
Number of head
cavity
1-6

Clamping System
Clamping range
mm
200-250
Sliding Distance
mm
400-450
Clamping force
kn
60




Power Consumption
Air pressure
Mpa
0.6
Air consumption
m3/min
1.0
Cooling water pressure
Mpa
0.3
Cooling water consumption
m³/h
1.2
Total Power
KW
47
Average power consumption
KW
22

Technical Characteristic:

1) Smart series double station blow molding machine is TONVA company's original design,it's combines bydraulic and pneumatic.

2) The performance is well and running stable,it's easy to operater.The sal;es is hundreds and it's mature design in company.

3) Suitable from 5ml to 5L.

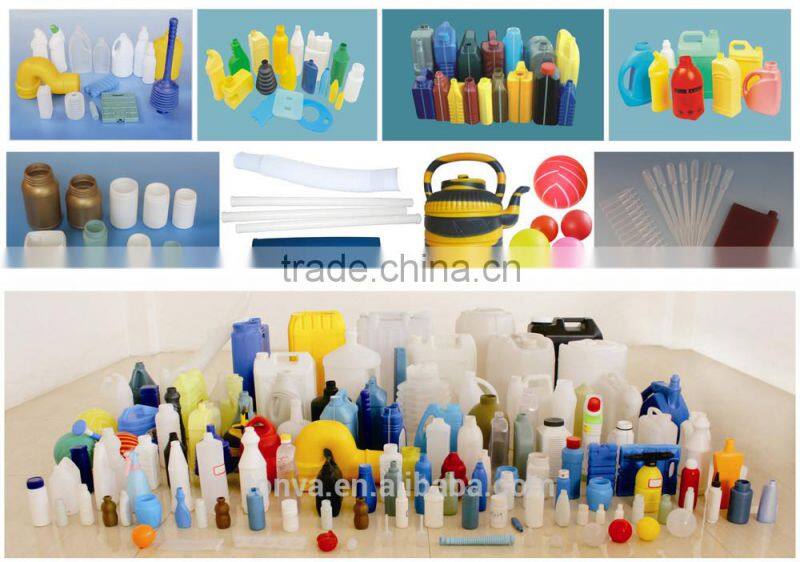

4) Suitable for drug bottle,washing bottle,oil bottle,plastic toy,beverage bottle,drill box etc.

Optional
Detailed Images

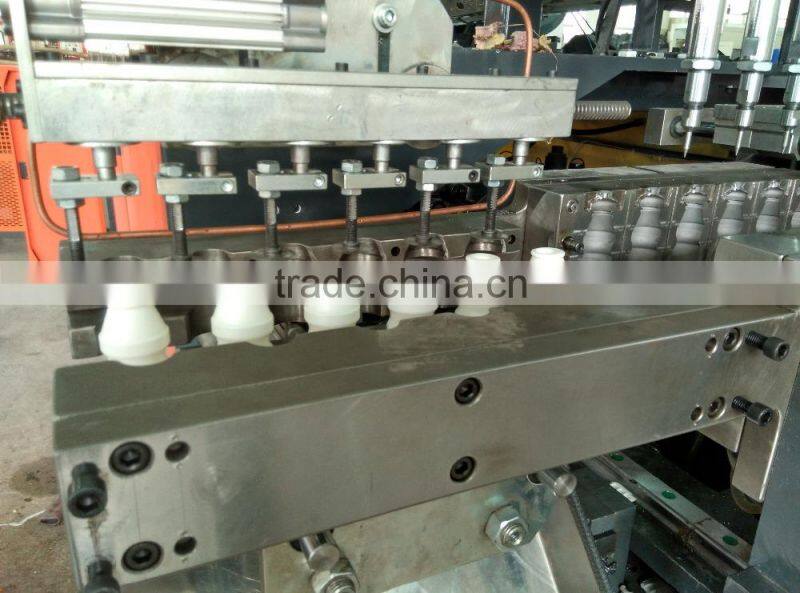

Die-head

The die head is made by stainless steel S136H or high quality alloyed steel 38CrMoAIA with high hardness, strong corrosion resistance and long operating life after nitrogen treatment.

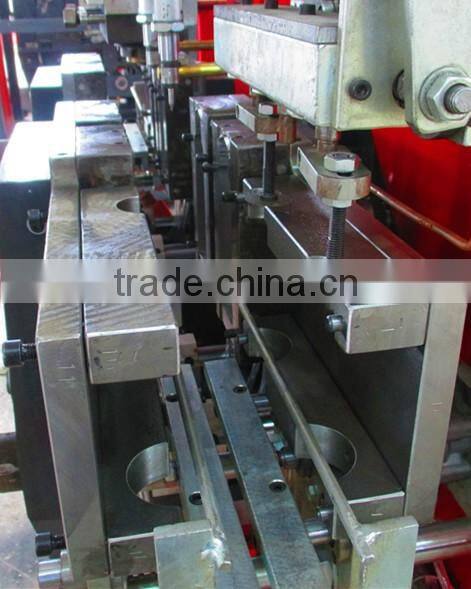

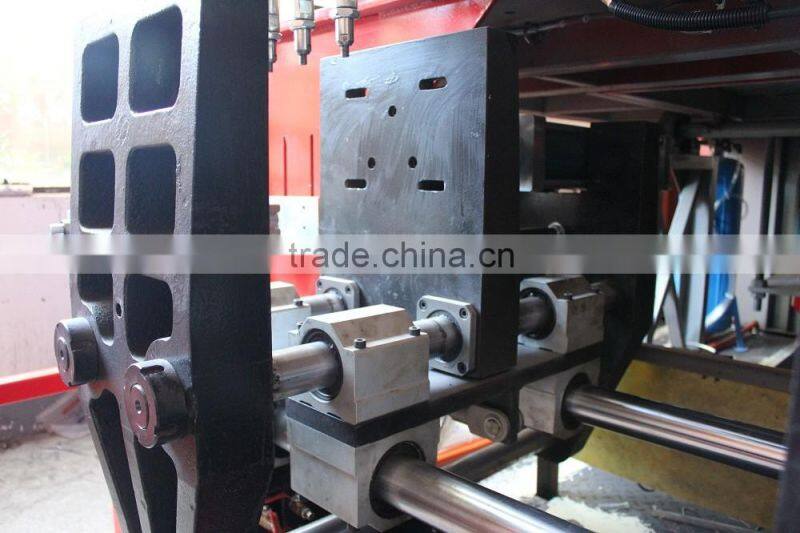

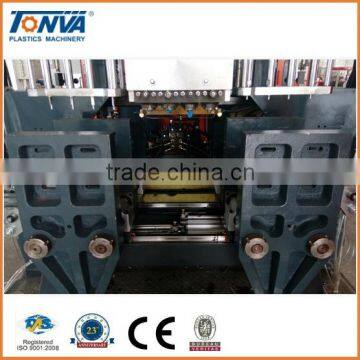

Clapming system

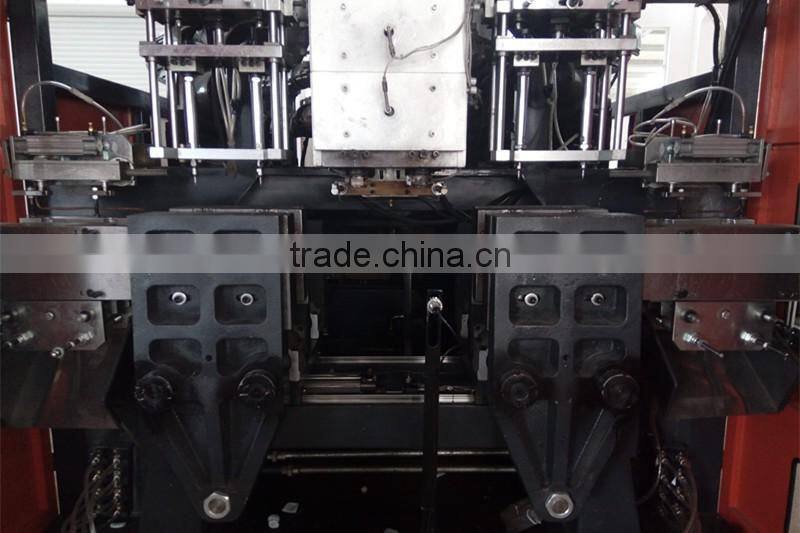

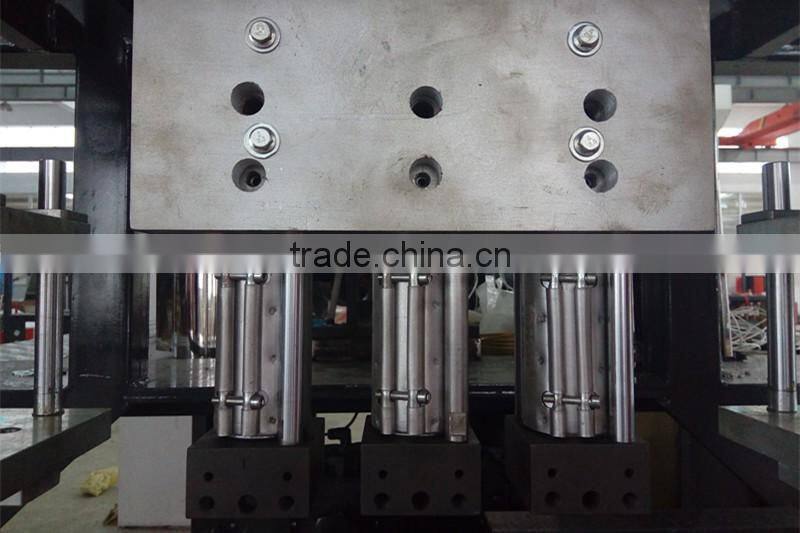

Platen clamping,Three tie-bar design, clamping by Pneumatic cylinders.

PLC

Adopting PLC to control the action program of the whole machine.

Automatic trimming

The machine equipped with automatic trimming system, resulting saving the labor cost at least 75% for one machine and guarantee the good quality continuously.

Moulds Workshop
Main parts brand
Our Service

a. Reply the email and take action in 24 hours.
b. 100% Quality inspection before the shipment.
c. Can training clients operator for free in selle's factory.
d. Engineer overseas is available.
e. Blowing mold and injection mold made original.
f. Auxiliary machines for complete line.
g. Customized design as requirements.


1,Instruction for Installation and Debugging:

Before delivery, TONVA takes responsiblity for debugging of machine, in order to make sure provided machine could be safely and smoothly put into operation.

TONVA also take responsiblity to have debugging overseas, and clients aborad please first send invitation,then provide our engineer with round-trip tickets,accommodation,vehicle and USD80 per day for salary.

2,User Training:

Before delivery,TONVA will take responsibility to indoctrinate technical training to the users so that they could understand machines' features and could operate the machine by themselves.

3,Warranty Period:

The waranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.
