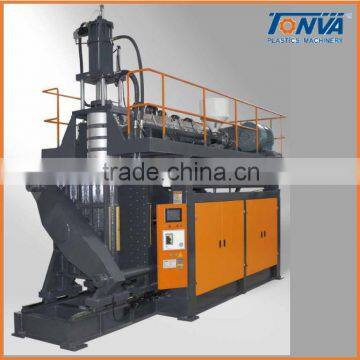

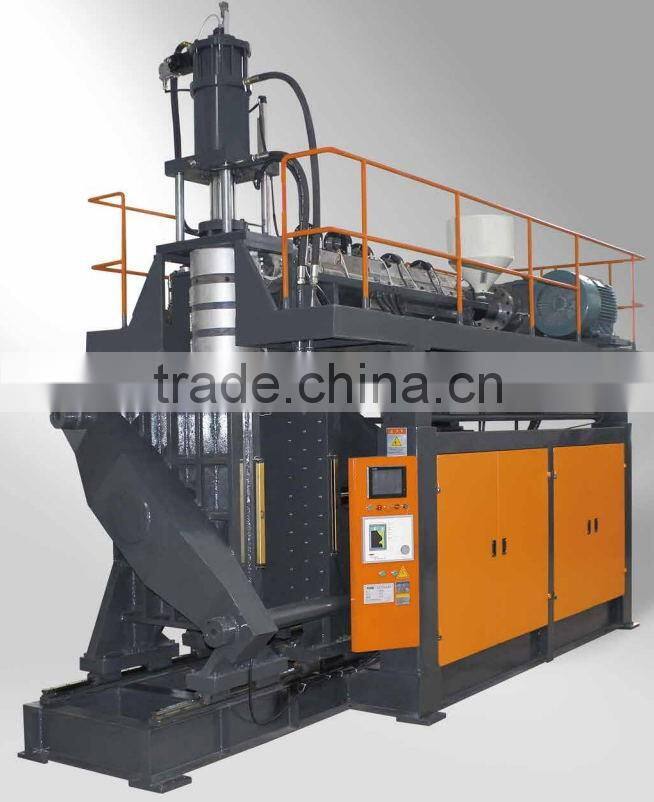

TONVA Accumulator 100L Plastic Water Tank Making Machine

TONVA Accumulator 100L Plastic Water Tank Making Machine thumbnail-1
TONVA Accumulator 100L Plastic Water Tank Making Machine thumbnail-2
TONVA Accumulator 100L Plastic Water Tank Making Machine thumbnail-3
TONVA Accumulator 100L Plastic Water Tank Making Machine thumbnail-4
TONVA Accumulator 100L Plastic Water Tank Making Machine thumbnail-5
TONVA Accumulator 100L Plastic Water Tank Making Machine photo-1

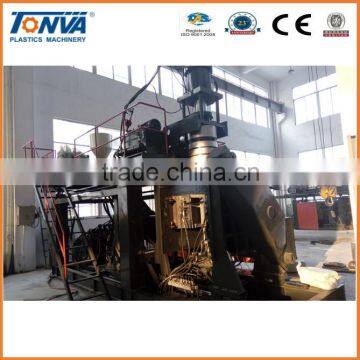

TONVA Accumulator 100L Plastic Water Tank Making Machine photo-2

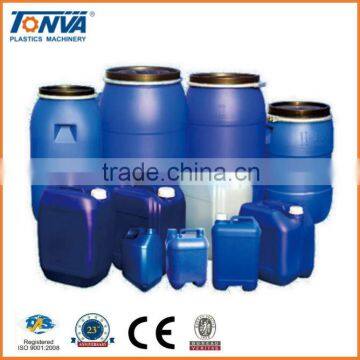

TONVA Accumulator 100L Plastic Water Tank Making Machine photo-3

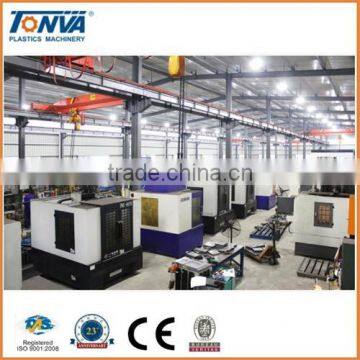

TONVA Accumulator 100L Plastic Water Tank Making Machine photo-4
TONVA Accumulator 100L Plastic Water Tank Making Machine photo-5
US$ 67000.00 - 67000.00 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Bottle
Plastic Processed:
PE
Contact Supplier Request Quote Chat Now
Yuhuan Tonva Plastics Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Bottle
Plastic Processed PE
Blow Moulding Type Extrusion Blow Moulding
Automatic Yes
Place of Origin Zhejiang, China
Brand Name TONVA
Model Number TVA-100L
Voltage 380V
Power(W) 45kW
Dimension(L*W*H) 5.5*4*4.2
Weight 14500kg
Certification ISO9001;BV;CE;SGS
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Welcome To TONVA
Product Description

TVA-100L Basic Specification:


Single station,single layer;
Accumulator Die-head;
100mm screw / 45kw motor;
HDPE etc material;
Output(Barrel per hour):(6.5KG-8.5KG)---20-25BPH;
MOOG parison controller 100 points;
Intelligent temperature control system;
Take out robot arm strong type;

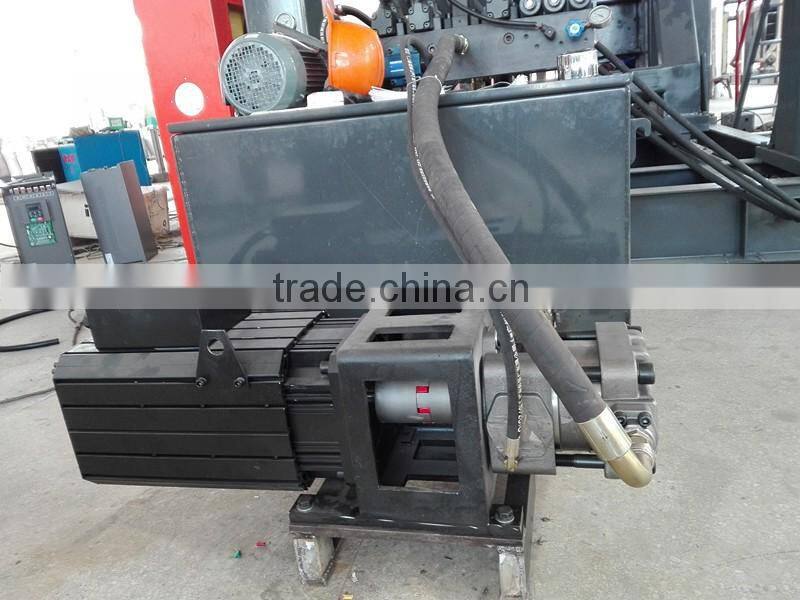

Servo motor for saving energy;

TVA-100L Working Condition:

Power supply:380VAC/50HZ(depending on client's country);
Water cooling-----20℃(15HP Water chiller);
Air source-----7.5kw air compressor;
TVA-100L Technical Parameter
CATEGORY
ITEM
UNIT
TVA-100L

Basic Specification
Raw Material
--
HDPE etc
Dimension
m
5.5*4*4.2
Total Weight
kg
14500




Extrusion System
Diameter of screw
mm
100
Screw L/D ration
L/D
30:1
Screw rotating speed
r/min
10-85
Plasticizing capacity
kg/h
160
Drive motor
kw
45
Heating power
kw
25


Die Head
Die head material
--
38CrMOALA
Accumulator volume
L
12
Accumulator capacity
kg
9
Heating power
kw
15

Clamping System
Platen size(W*H)
mm
1000*1100
Clamping range
mm
400-1200
Clamping force
kn
450



Power Consumption
Servo pump power
kw
18.5
Total power
kw
103
Average power consumption
kw/h
46
Air consumption
m³/min
0.9
Water consumption
m³/h
2

Basic Working Theory:

This kind of machine is accumulator die head, single station, equipped with PLC control system, operating manual in English, pure hydraulic operated, with MOOG 100points parison controller, running stable.

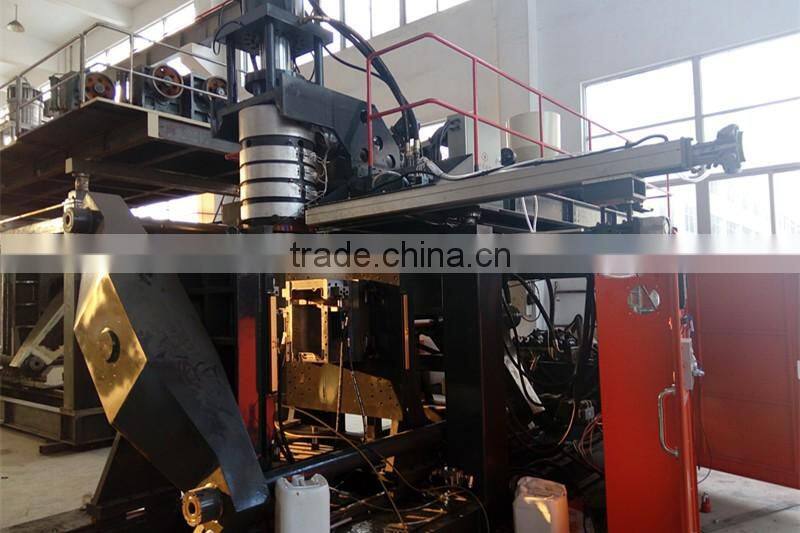

Detailed Images

Die-head

The die head is made by stainless steel S136H or high quality alloyed steel 38CrMoAIA with high hardness,strong corrosion resistance and long operating life after nitrogen treatment.

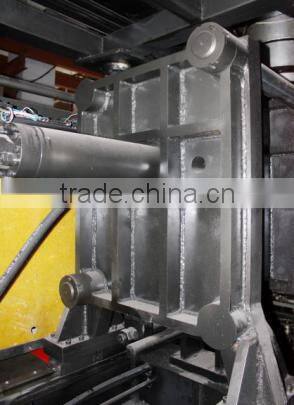

Clapming system

Double tie rod hydraulic clamping,the structure is compact,effective mold size increase 25%.

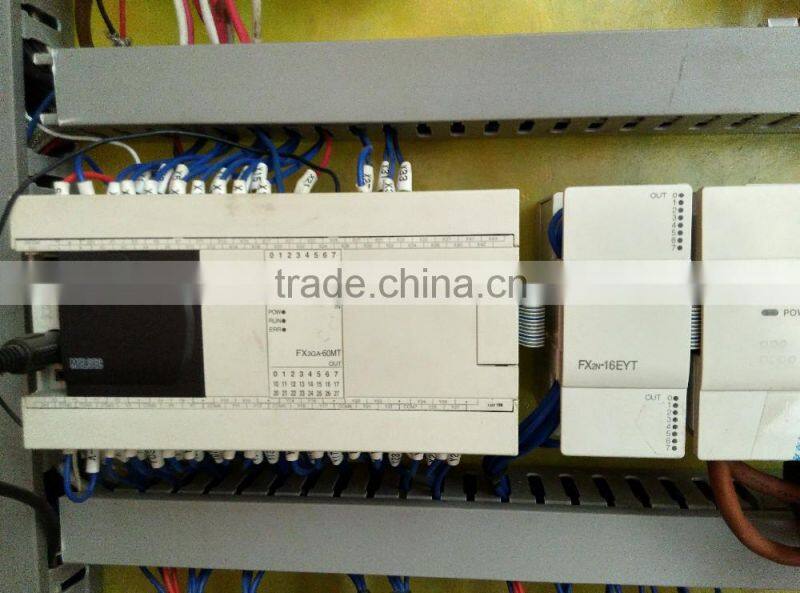

PLC

Adopting PLC to control the action program of the whole machine.

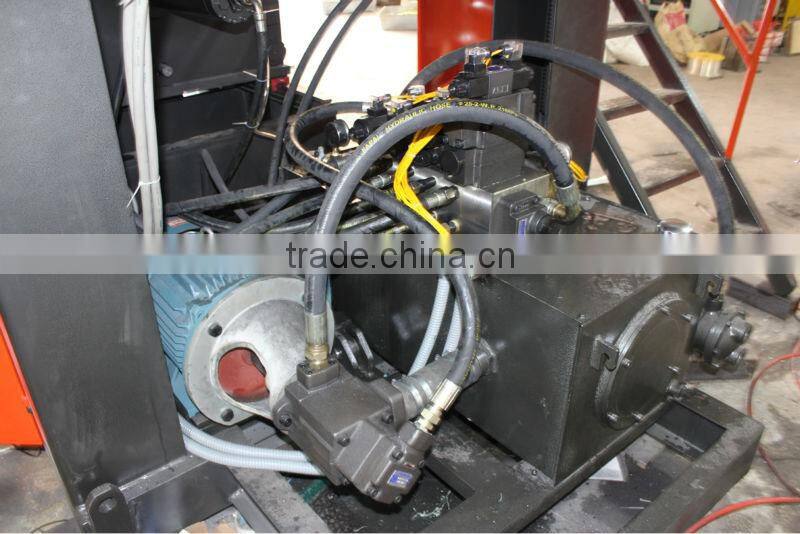

Blowing System

The movements of blowing plasten in vertical level for blowing pin up and down and horizontal level for parison stretch are drive by hydraulic motor.

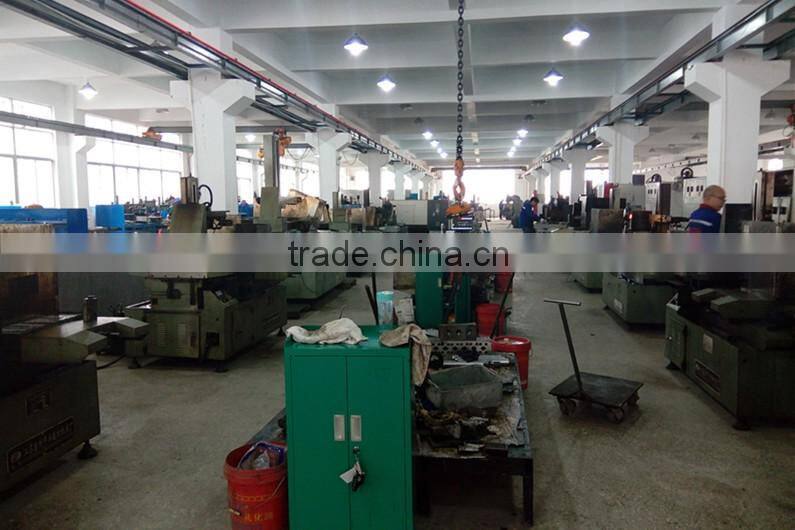

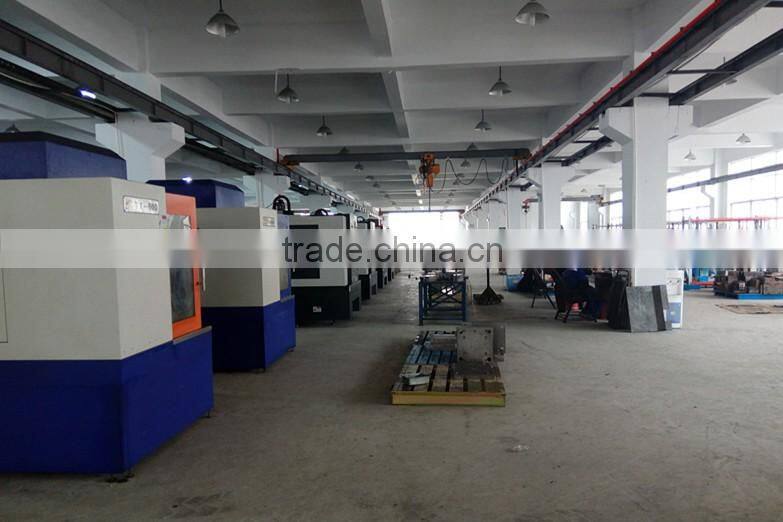

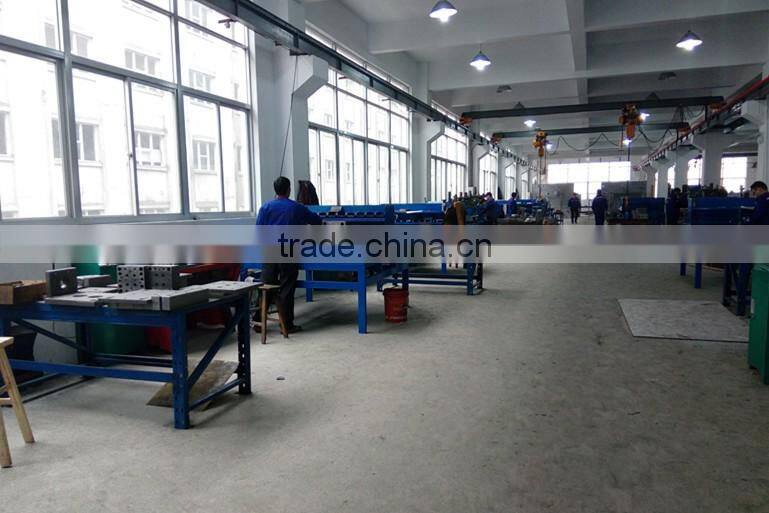

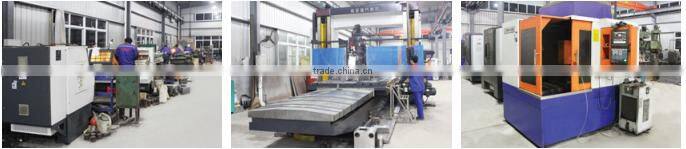

Moulds Workshop
Main parts brand
Our Service

a. Reply the email and take action in 24 hours.
b. 100% Quality inspection before the shipment.
c. Can training clients operator for free in selle's factory.
d. Engineer overseas is available.
e. Blowing mold and injection mold made original.
f. Auxiliary machines for complete line.
g. Customized design as requirements.


1,Instruction for Installation and Debugging:

Before delivery, TONVA takes responsiblity for debugging of machine, in order to make sure provided machine could be safely and smoothly put into operation.

TONVA also take responsiblity to have debugging overseas, and clients aborad please first send invitation,then provide our engineer with round-trip tickets,accommodation,vehicle and USD80 per day for salary.

2,User Training:

Before delivery,TONVA will take responsibility to indoctrinate technical training to the users so that they could understand machines' features and could operate the machine by themselves.

3,Warranty Period:

The waranty period for TONVA machine is one year with a life long maintenance. If the user requires special quality guarantee, other stipulated warranty period may be made after mutual agreement.
