Help CenterElectrical Fan With Water Mist Ventilating Fan With CE GS
Related Products
-
Wholesale Outdoor Misting Spray Water Fan With Height AdjustableUS$ 358 - 378MOQ: 100 Sets -
High Pressure Mist Fan Spray Water Fan With CE GS SAA PSEUS$ 278 - 398MOQ: 100 Sets
-
High Pressure Powerful Outdoor Misting FansUS$ 458 - 558MOQ: 100 Sets
-
High Pressure Mist FanUS$ 258 - 318MOQ: 100 Sets
-
Powerful High Pressure Mist FanUS$ 268 - 368MOQ: 100 Sets

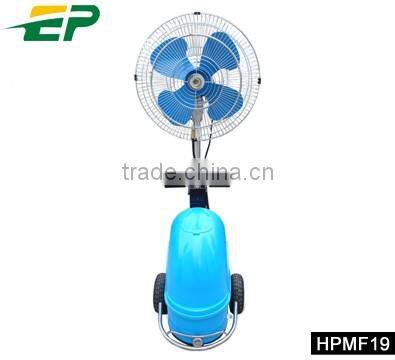

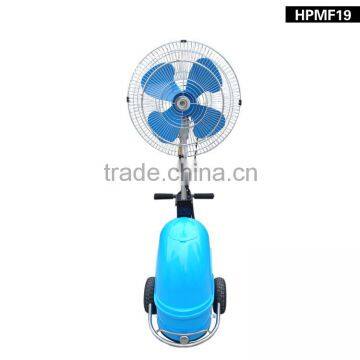

| Item no : | HPMF19 | |||
| Description : | 20" High Pressure Mist Fan | |||
| Voltage : | 220 -240V/ 100-120V | |||
| Frequency : | 50Hz / 60Hz | |||
| Power : | 310W | |||
| Oscillation: | 90° | |||
| Speed: | 3 | |||
| QTY of atomization: | 0-16L/h 0.3L/min | |||
| Temperature drop: | 5-8℃ | |||
| Spray effective distance: | 10-15m | |||
| Pressure: | 40-60KG | |||
| Suitable area: | 40-60m2 | |||
| Air flow: | 110m3/min | |||
| Flow rate : | 0.3L/min | |||
| Meas of tank: | 30L/40L | |||
| Material of Tank: | ABS/PP(black/blue) | |||
| Continuous Working: | 1400hours | |||
1. Improve the quality of the air
2. Reduces the dust
3. Cooling fast: cooling immediately after starting
4. No high pressure: centrifugal secondary atomization design
5. No nozzle: without maintenance
6. Low power consumption: 5 hours of continuous use only consume 1 KWH of electricity
7. Strong mobility: wheel base enables each mist fan work independently. Meanwhile, it is flexible, safe, reliable and does not take up the work space. Significantly, it does not have to wet the land after using.

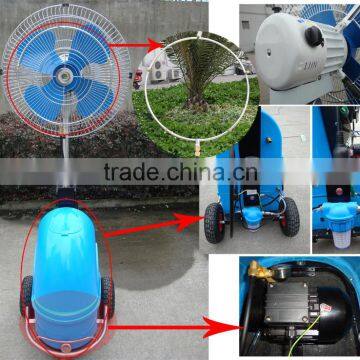

Under the action of rotating disk and misting device, water turns into ultra small droplets by the centrifugal force, which enlarges the surface of evaporation tremendously. And the airflow, blowed by powerful fan, greatly enhances the wind speed of the liquid surface, so that the evaporation of water is much higher than average. While during the evaporating, it absorbs heat, reduces the temperature, and meanwhile, improves the air humidity, reduces dust, cleans the air. So it is called centrifugal mist fan.
Voltage----if the main voltage is unstable, please limited at the± 10%range on the nameplate.
Ambient temperature ---- 0 ℃ ~ 50 ℃
Humidity---- 85%maximum relativehumidity
1. cooling: outdoor dining, outdoor cafes, outdoor bars, outdoor entertainment venues, stadiums, arenas, airports, bus stations, large gatherings, hotels cooling.
2. dust extraction: farm, mine factory, etc.
3. humidification: textile mills, cotton warehouses, parks, greenhouses, laboratories, flour mills, etc.(including eliminating static electricity).
4. agriculture: family farms, mushroom cultivated field, circus.
5. the aquaculture industry: for farms, animal building cooling, deodorant, disinfecting.
6. industry: machine shop, machine shop, textile shop, clothing shop, shoe dyeing, plastics, injection molding, casting, heat treatment, casting glass, mist plating, electronics, chemical and metallurgical, leather toys, home appliances, as well as Tobacco, printing, medicine, powder processing industries.
7. special application: gardens, zoos, shopping malls, exhibitions, cinema, as well as plant irrigation.
8. the special use: disinfecting Botanic Gardens, greenhouses, zoos, golf courses by adding liquid disinfectant into water.
