Wholesale Mist Fan Pedestal Fan With Water Spray

Wholesale Mist Fan Pedestal Fan With Water Spray photo-1

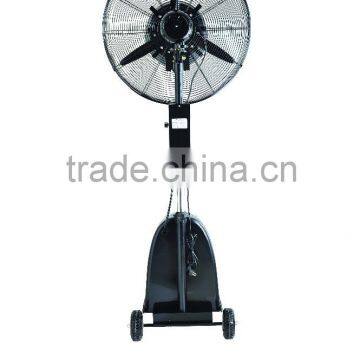

Wholesale Mist Fan Pedestal Fan With Water Spray photo-2

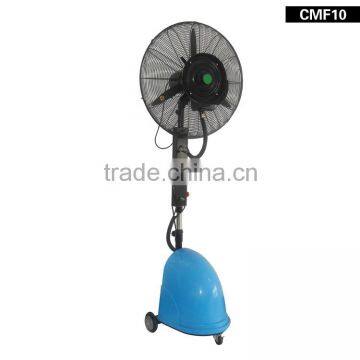

Wholesale Mist Fan Pedestal Fan With Water Spray photo-3
Wholesale Mist Fan Pedestal Fan With Water Spray photo-4

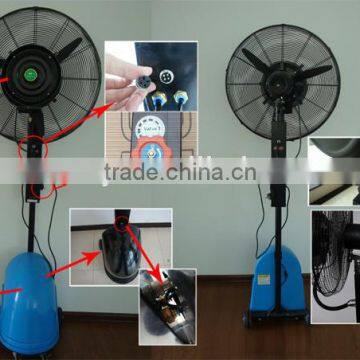

Wholesale Mist Fan Pedestal Fan With Water Spray photo-5
Wholesale Mist Fan Pedestal Fan With Water Spray photo-6
US$ 105 - 155 MOQ: 100 Sets
Key Specifications
Get Latest Price
Power Source:
Electric
Type:
Water Mist Fan
Installation:
Pedestal
Payment & Shipping
Payment Methods:
Port of Shipment:
NINGBO or SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Power Source Electric
Type Water Mist Fan
Installation Pedestal
Material Metal
Certification CB, CE, EMC, GS, Other, SASO, CB, CE, EMC, GS, RoHS, SASO
Power (W) 260
Voltage (V) 220
Brand Name EP

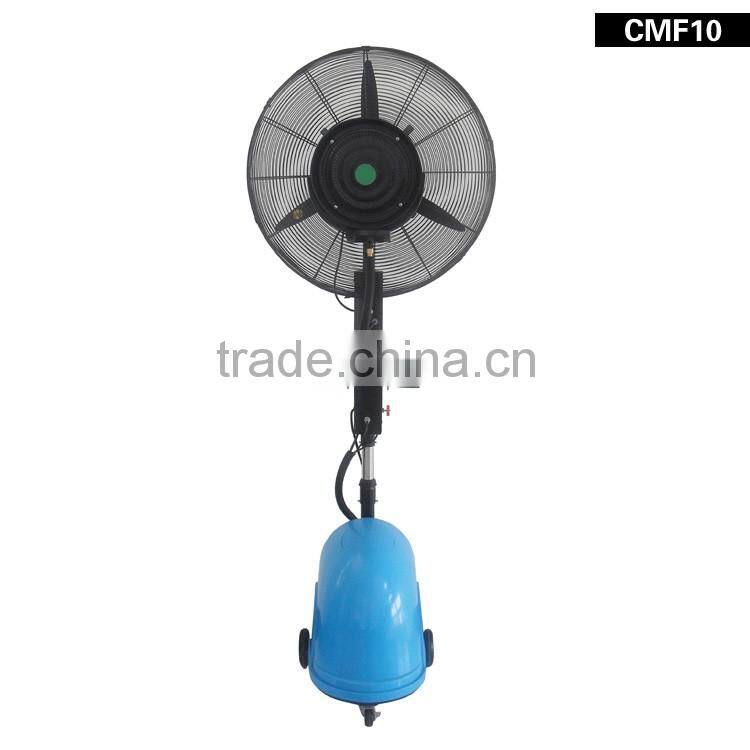

Model Number CMF10
Place of Origin Zhejiang, China

Wholesale mist fan pedestal fan with water spray

Wholesale mist fan pedestal fan with water spray

Product Description



Description :26" Standing Height Adjustable Centrifugal Mist Fan
Voltage :220-240V / 100-120V
Frequency :50Hz  /  60Hz
Power :260W
Oscillation:90°
Speed:3
QTY of atomization:0-5L/h
Continuous Working:8 hours
Temperature drop:3-5
Spray effective distance:8-10m
Suitable area:30-50m2
Air flow:138m3/min
Meas of tank:30/41L
Material of Tank:ABS/PP(black/blue)



Wholesale mist fan pedestal fan with water spray
Wholesale mist fan pedestal fan with water spray

 Wholesale mist fan pedestal fan with water spray



Advantage



1.     Improve the quality of the air

2.   Reduces the dust

3.      Cooling fast: cooling immediately after starting

4.      No high pressure: centrifugal secondary atomization design

5.      No nozzle: without maintenance

6.      Low power consumption: 5 hours of continuous use only consume 1 KWH of electricity

7.      Strong mobility: wheel base enables each mist fan work independently. Meanwhile, it is flexible, safe, reliable and does not take up the work space. Significantly, it does not have to wet the land after using.

 Wholesale mist fan pedestal fan with water spray

Principles

      Under the action of rotating disk and misting device, water turns into ultra small droplets by the centrifugal force, which enlarges the surface of evaporation tremendously. And the airflow, blowed by powerful fan, greatly enhances the wind speed of the liquid surface, so that the evaporation of water is much higher than average. While during the evaporating, it absorbs heat, reduces the temperature, and meanwhile, improves the air humidity, reduces dust, cleans the air. So it is called centrifugal mist fan.

Condition



Voltage----if the main voltage is unstable, please limited at the± 10%range on the nameplate.

Ambient temperature ---- 0 ℃ ~ 50 ℃

Humidity---- 85%maximum relativehumidity

Application

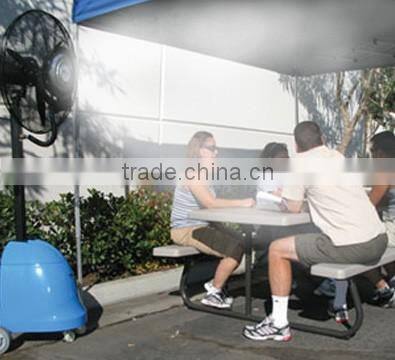

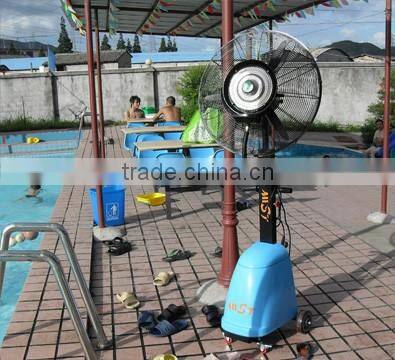

1.      coolingoutdoor dining, outdoor cafes, outdoor bars, outdoor entertainment venues, stadiums, arenas, airports, bus stations, large gatherings, hotels cooling.

2.      dust extraction: farm, mine factory, etc.

3.      humidification: textile mills, cotton warehouses, parks, greenhouses, laboratories, flour mills, etc.(including eliminating static electricity).

4.      agriculture: family farms, mushroom cultivated field, circus.

5.      the aquaculture industry: for farms, animal building cooling, deodorant, disinfecting.

6.      industry: machine shop, machine shop, textile shop, clothing shop, shoe dyeing, plastics, injection molding, casting, heat treatment, casting glass, mist plating, electronics, chemical and metallurgical, leather toys, home appliances, as well as Tobacco, printing, medicine, powder processing industries.

7.      special application: gardens, zoos, shopping malls, exhibitions, cinema, as well as plant irrigation.

8.      the special use: disinfecting Botanic Gardens, greenhouses, zoos, golf courses by adding liquid disinfectant into water.

Wholesale mist fan pedestal fan with water sprayWholesale mist fan pedestal fan with water spray

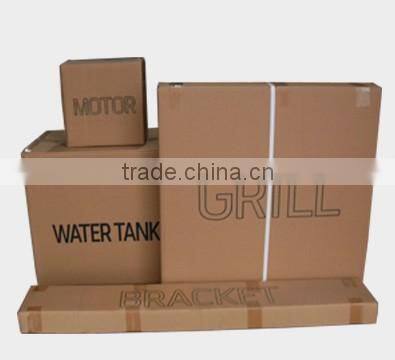

Packaging & Shipping

 Wholesale mist fan pedestal fan with water sprayWholesale mist fan pedestal fan with water spray

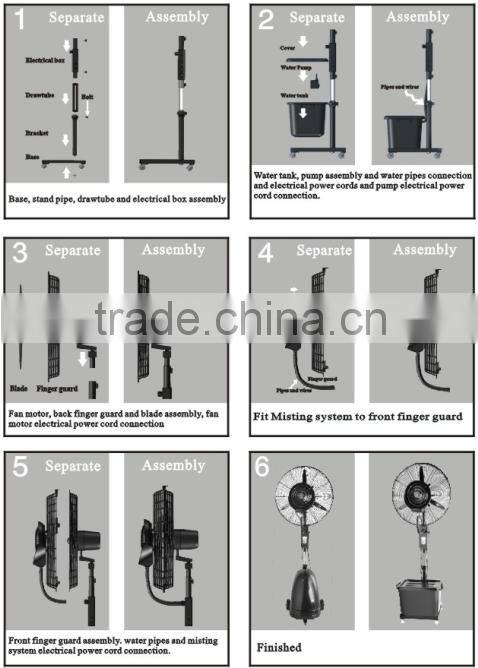

Flow chart


Wholesale mist fan pedestal fan with water sprayWholesale mist fan pedestal fan with water sprayWholesale mist fan pedestal fan with water spray

Certifications


Wholesale mist fan pedestal fan with water spray
