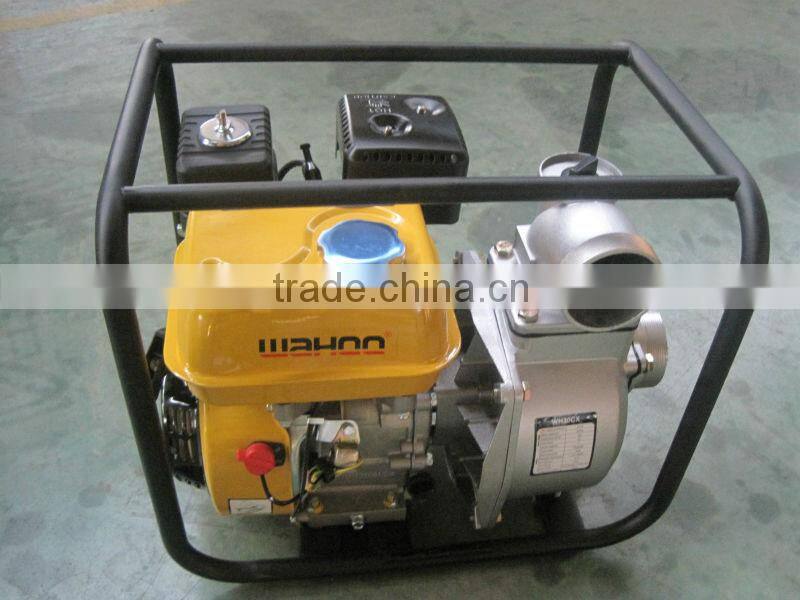

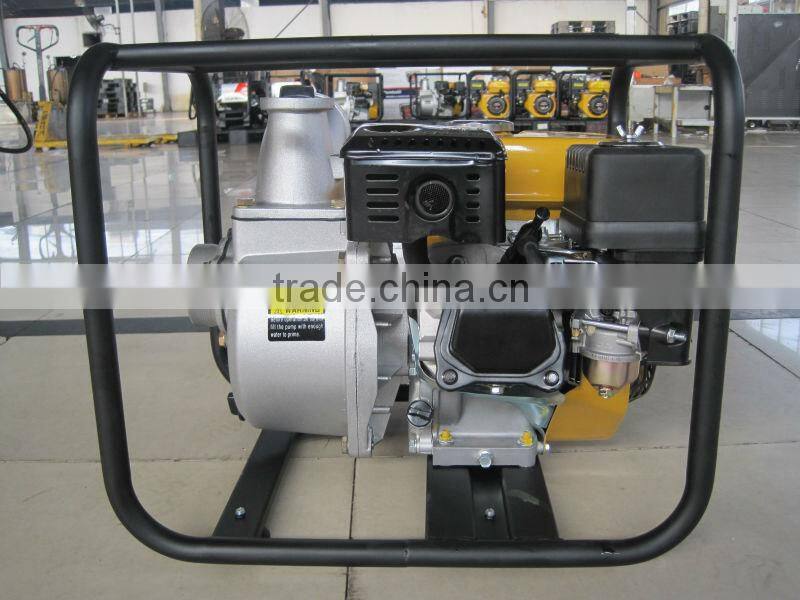

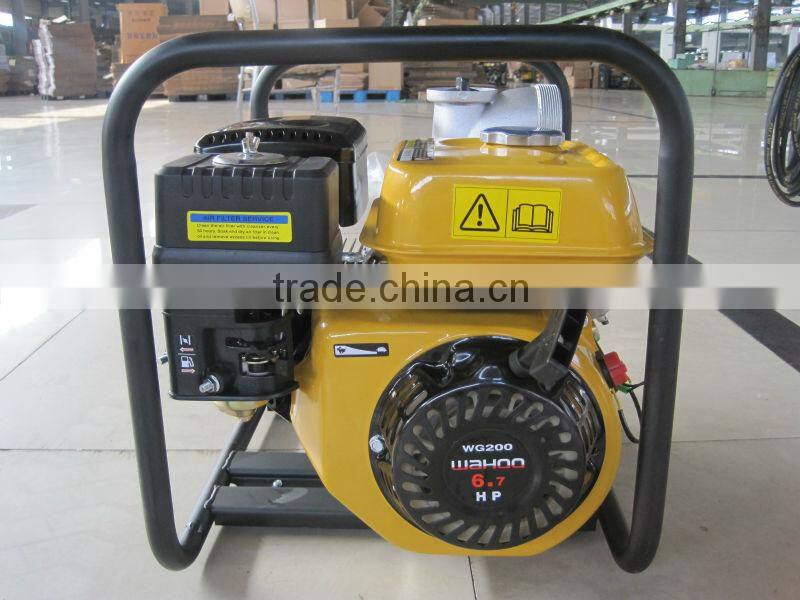

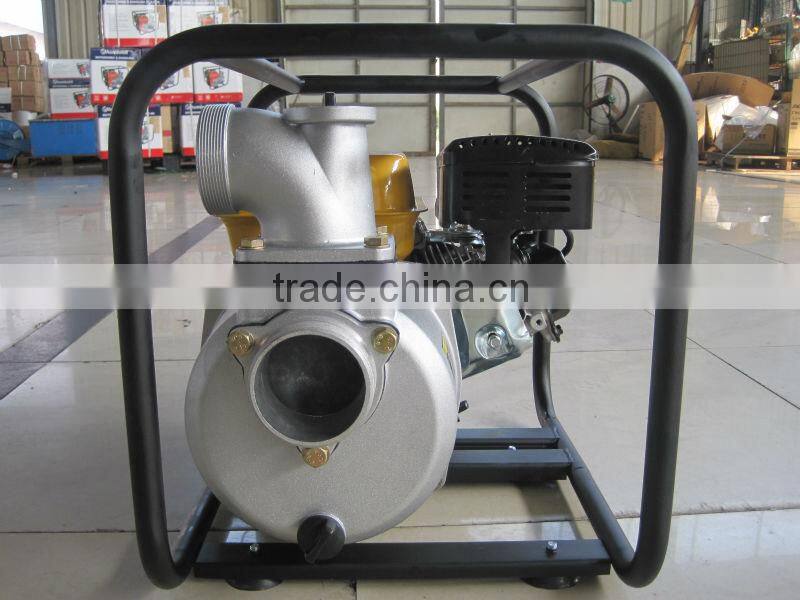

3in Honda Gasoline Engine Water Pump Set (WH30CX)

FOB Price

US$ 1 - 600 / Set

50 Sets(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

1.Cast iron sleeve
2.Pump delivers 25m max. head
3.Silicon carbide seals
4.Durable cast iron impelle

3-inch gasoline water pump specification:

Model No.	WH30CX
Inlet and outlet size:	80 (3")
Rated speed (HP/rpm):	3,600rpm
Displacement:	70 m3/h
Pump lift (m):	25m
Suction height (m):	7m
Engine model:	WG200
Displacement:	200ml
Engine max output: Hp/rpm:	6.7/3600
Fuel volume (L):	3.6L
Bore x stroke:	70x52
Compression ratio:	8.5:1
Oil volume (L):	0.6L
Min fuel consumption g/HP-hour:	450g/HP-hour
Ignition model:	transistor magneto
Start mode:	recoil
NW/GW (kg):	28/30
Package dimensions (mm):	515405450

CE certificate

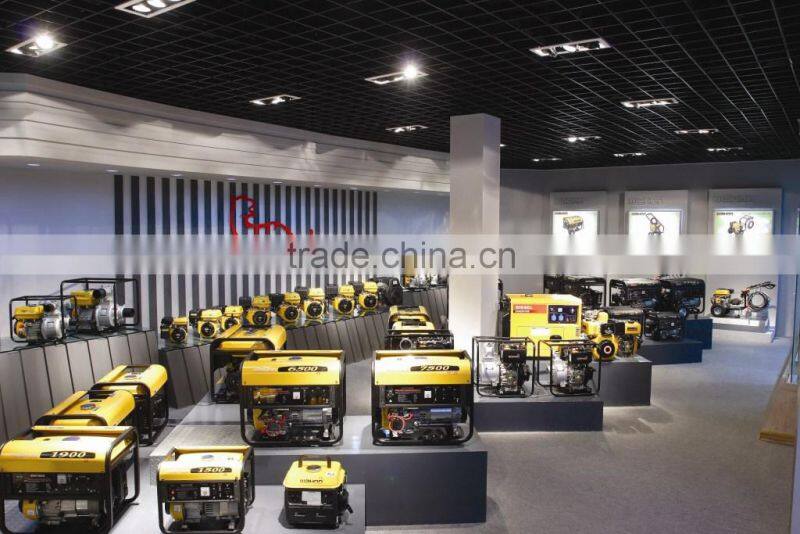

Wahoo showroom

Container loading

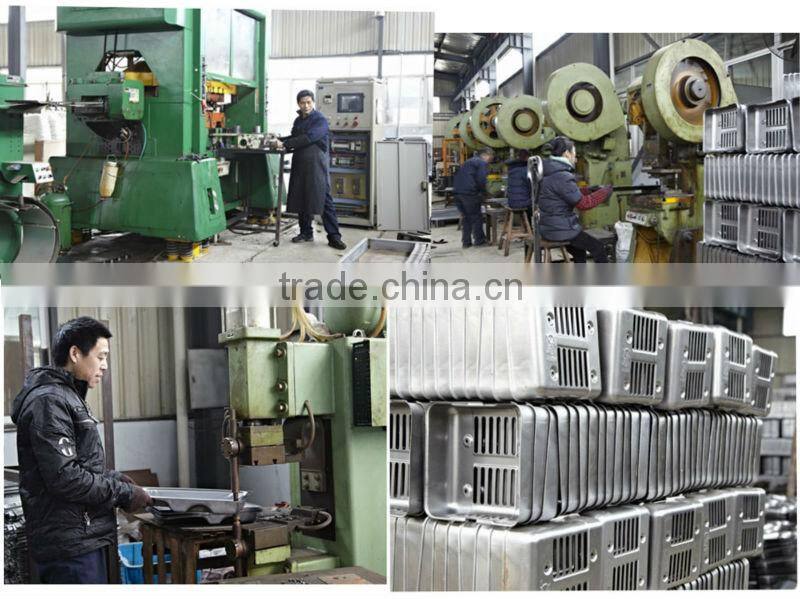

Factory and Work shop

Canton fair booth

Zhejiang Wanhao Machine Science And Technology Co., Ltd.: Contact nameJames Gu
Chat Now; Phone86-576-84057977; AddressBafen Gaoqiao Street, Huangyan District, Taizhou, Zhejiang
