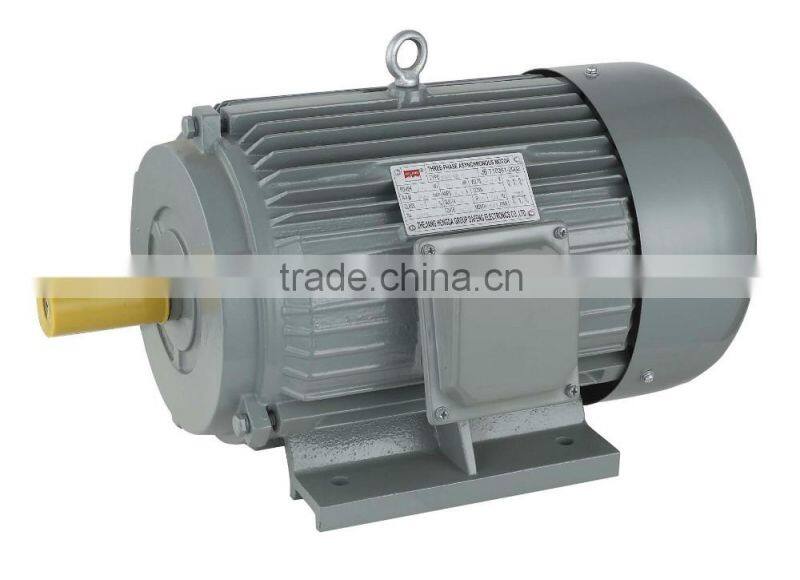

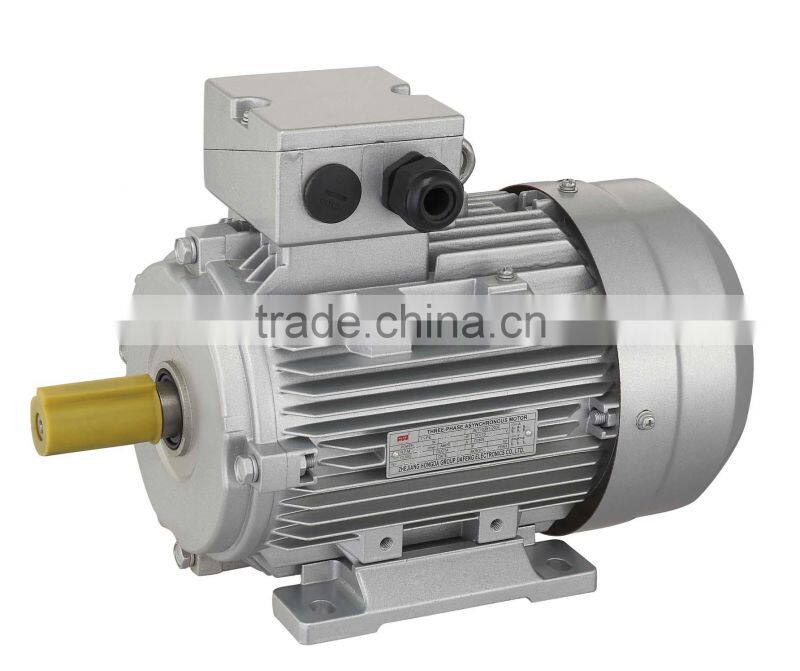

GOST MOTOR
ANP series three-phase electromotor , This motor has a very compact structure and attractive appearance. The sizes and mounting dimensions are produced according to the GOST standard. The motor has some good features, such as high efficiency, energy-saving, high starting torque and easy maintenance.they are mainly applied for machinery and equipment.such as agriculture machinery, food machinery and air compressor.
We can also supply aluminum housing type for frame size below IEC160.
We can supply cast rion housing type for frame size from 56-315.
Specifications:
1) Frame size:112
2) Rated power: 5.5KW
3) Rated voltage: 220/380/660V
4) Frequency: 50Hz, 60Hz
5) Protection class: IP44
6) Insulation class: E, B, F
7) Materials: cast iron, aluminum (FRAME 63-132)
8) EFF: EFF3, EFF2, EFF1
9) Poles: 4
10) Cooling method: IC411 (total-enclosed fan-cooled type)
11) Mounting types: IMB3, IMB35, IMB5, IMB14, IMB34
12) Operating mode: S1
13) Connection: "Y" type for 3kW and downwards, "D" type for 4kW and upwards
14) Ambient temperature:-15oC <θ<oC
15) The altitude should be lower than 1,000m above the sea level
16) Relative humidity: not higher than 90%
17) Special motors can be designed according to customers' requirements
18) Export markets: Europe, North America, the Middle East, Africa, Southeast Asia,East
Asia, South America
