hdpe water drainage pipe production line
- 10 Set / Sets per Month
- Shanghai China
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Condition: | New | Application: | Pipe | Plastic Processed: | PE |
Screw Design: | Single-screw | Automatic Grade: | Automatical | Place of Origin: | Shanghai, China |
Brand Name: | OK | Model Number: | hdpe water drainage pipe production line | Voltage: | 3 phase |
Power(W): | kw | Dimension(L*W*H): | 35m*1.2m*1.8m | Weight: | 10000kg |
Certification: | CE | After-sales Service Provided: | Overseas service center available |
Product Description

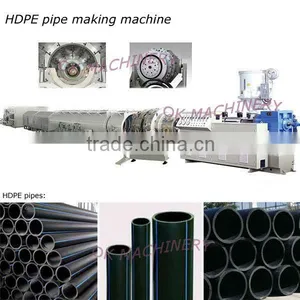

hdpe water drainage pipe production line
PE pipe extrusion line
Main specification of pe pipe production line:
Model | Pipe spec(mm) | Extruder | Output(kg/h) | Total power(kw) |
PE-63 | Φ20-Φ63 | SJ45/33 | 150 | 70 |
PE-110 | Φ20 - 110 | SJ60/33 | 250 | 125 |
PE -160 | Φ 63- 160 | SJ60/33 | 300 | 145 |
PE -250 | Φ 75- 250 | SJ75/33 | 450 | 230 |
PE -315 | Φ 90- 315 | SJ75/33 | 600 | 280 |
PE -450 | Φ 160- 450 | SJ90/33 | 700 | 380 |
PE -630 | Φ 315- 630 | SJ120/33 | 900 | 550 |
PE pipe producing line, equipped with different extruding dies and necessary auxiliary machines, can make various PE pipes.
Features of this line:
1. high efficiency single screw extruder: high rotating speed, good compounding effect and stable extrusion ensuring big capacity.
2. extruding die: adopting latest designed die head with spiral distributing flow channel, built-in temperature controlling device which make the extrusion more evenly.
3. vacuum calibrating tank: advanced water loop vacuum calibration, two vacuum chambers ensuring perfect roundness of the pipe, multi-section 6 meter water spraying tank, make sure cooling the pipe thoroughly, the main body of the tank made of stainless steel.
4. haul-off machines: 2 laws, 3 claws, 4 claws, 6 claws and 8 claws are provided to manufacture various pipes, haul-off speed governed by the FUJI or ABB inverter.
5. cutting unit: dust-free cutting, with PLC controlling and meter counter.
6. stacking unit: providing pipe winder or pipe stacker.
7. controlling system: supply manual controlling cabinet and SIEMENS PLC touch screen controlling.
