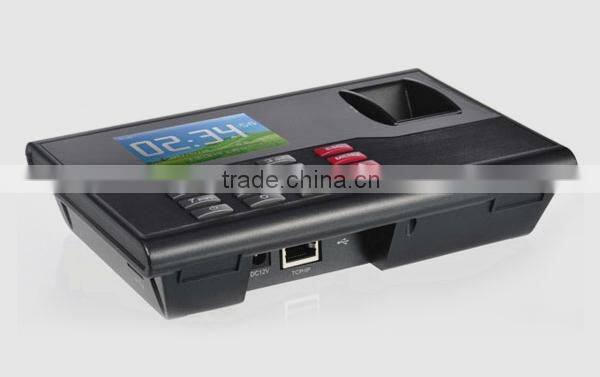

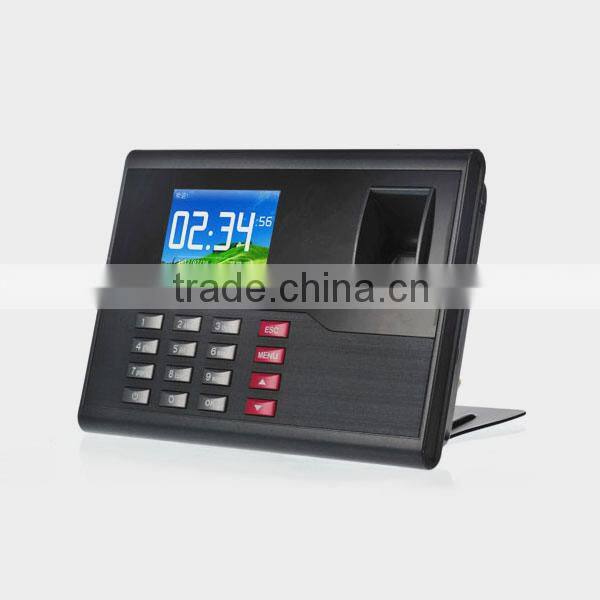

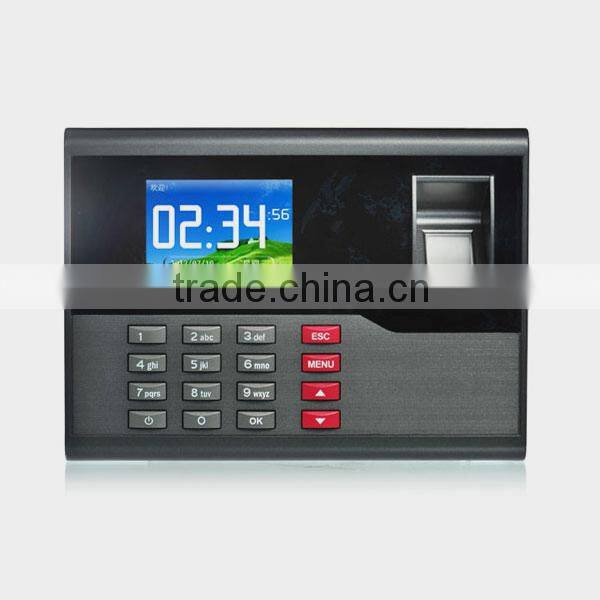

2014 Desktop and Wall Mounted RF Fingerprint Time Attendance

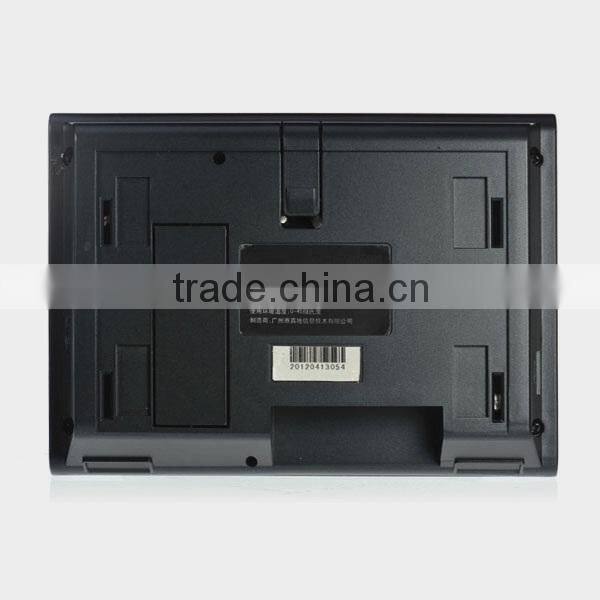

AC120T is a fingerprint attendence time terminal with classical style, its hardware structure adopts structured design of industrial grade. Front case is acrylic and wire drawing process, back case is with metal paint process. It is with our own fingerprint arithmetic which is the most advanced one in the world, automatically analyze the tiny difference of the latest fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition. High recognition ability for injured and peeled fingers, the identification time is less than 0.8 second. With ID card(optional for IC card) function, multi validation methods by card, fingerprint and password combination. User-define for message display and screen display. Standalone to operate the device, U flash drive could realize all kind of setting for the device directly. TCP/IP communication, network connection is simple and convenient. Support Push Technology, realize data collection & sharing freely.

*With the most advanced fingerprint arithmetic in the world automatically analyze the tiny difference of the latest fingerprints vs. the previous fingerprints and update accordingly to ensure the high accuracy and the optimum speed of fingerprint recognition. High recognition ability for injured and peeled fingers, the identification time is less than 0.8 second.

*Built-in ID card sensor (optional for IC card), validate freely by Card, fingerprint and password combination.

*2.8 inch TFT color screen

*Support U disk to download or upload attendance records and fingerprint data ect. User could enroll the fingerprint in one device, and share the enrollment information with other devices through the USB flash memory.

*TCP/IP communication, network connection is simple and convenient, support Push Technology, data collection & sharing freely

*Supports 11 & 18 digits for user ID registration, user also could enroll mobile number for ID numbers.

*Authentication modes are 1:1 and 1:N, user can register ten fingers, max fingerprint capacity is 1,500 enrollment and 100,000 records. Warning function for full records and inquiry log functions.

*Could upgrade to simple access control function

*Support multi development language(VB, C++, C#, Delphi ect) SDK, and ODM/OEM software development

*Support English, Germany, Spanish ect different languages.

LCD Screen

2.8 inch TFT Color Screen

Fingerprint Sensor Resolution

500DPI (Optical sensor)

Hardware Platform

AC2911

Algorithm Version

RSFv5.1

CPU

ARM926EJ CPU, Running Frequency: 200MHZ

Communication

TCP/IP, USB Memory Disk, USB cable

User Capacity

1,500

Records Capacity

100,000

Software OS

XP/Win2003/Vista/Win7/Win8 (32bit / 64bit)

Identification Time

< 1 S

Authentication Method

Fingerprint/ RFID Card (125Khz, EM4100) /Password

Language

Chinese / English / Spanish/Arabic/ German (could customize others)

Bell

Built-in timing bell

Operation Mode

Off-line/Online

Power

DC 12V/0.5A

FRR

<1%

FAR

<0.00001%

Operating Mode

Off-line/On-line

Authentication Mode

1:1, 1:N

Operating environment

Operating Temp: 0°C-50°C, Humidity:80%

Dimension(L*W*H)mm

Terminal – 181*129*39mm

Package – 325*105*258mm

Weight

Terminal - 0.335 Kg

Package –0.863Kg
