Xpo-180GFT 180Kg/350lbs Electric Magnetic Locks with door position detection and time delay
Features
Product |
Xpo-180GFT 180Kg/375lbs Electric Magnetic Locks |
Voltage |
DC12V and DC24V adjustable |
Magnetic Locks |
With door position detection |
Magnetic Locks |
With time delay function |
Current Draw |
12V/500mA 24V/250mA |
Holding Force |
180kg (350lbs) |
Lock Size |
170Lx35Wx21H(mm) |
Armature plate |
130Lx33Wx9.3H(mm) |
Suitable for |
Wooden door , Glass door ,Metal door , Fireproof door |
Surface Temp |
≤+20°C |
Operating Temp |
-10~+55°C(14-131F) |
Suitable Humidity |
0~90%(non-comdensing) |
Finishes for Shell |
Anodized aluminum&surface texture processing |
Finishes for Magnetic |
Zinc |
Finishes for Armature |
Zinc |
Weight |
1.2kg |
Standard Packing |
12pcs |
Benefits:

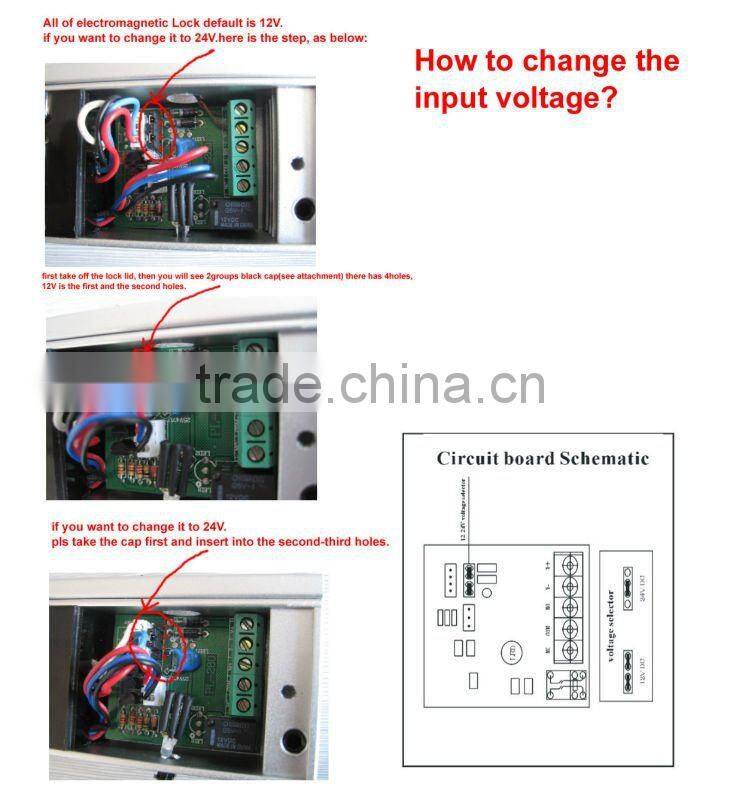

- With dual voltage of 12V and 24V, which can be adjusted by the voltage selector.
- Imaterial of PCB enables a stable voltage and long life.
- Better aluminium and better plating.
Payment:
If the total payment is less than 500USD, we usually accept Paypal or Western Union;
For big amount we accept bank transfer.
Shipment:
Normally we will use UPS, DHL, FEDEX or EMS express. Shipping usually takes 3-7 working days depending on the country delivered to.
Warranty:
Warranty for one year, maintenance forever,change within 3 months be cause of product quality
