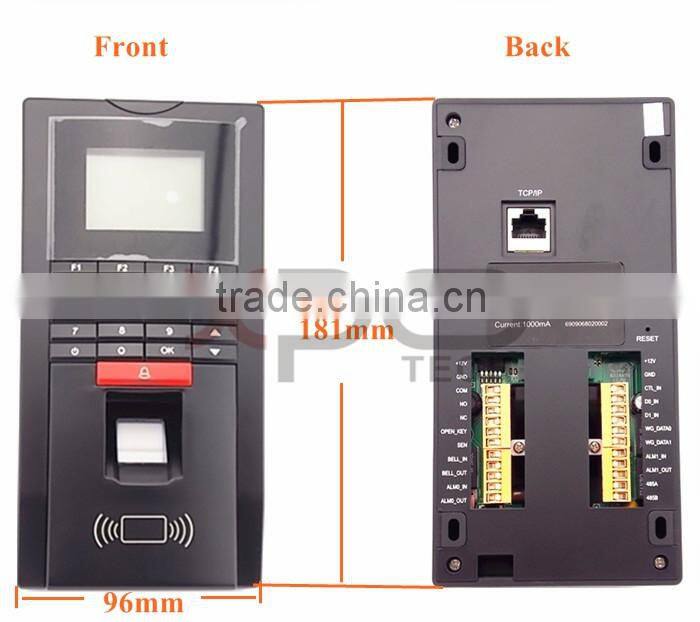

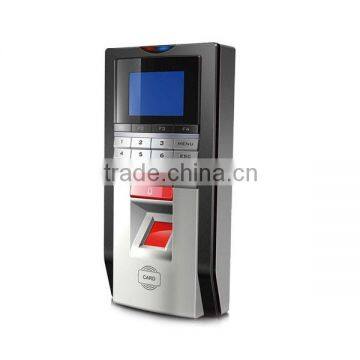

Fingerprint Access Control System

• Fingerprint Identification system: Optical fingerprint collector (Resolving power 500DPI)
• Identification angle: 360-degree rotation with high sensitive and accurate identification.
• Verification Method: Fingerprint, RF ID card, password, fingerprint+ password, ID card + password, ID card + password, Fingerprint+ ID card + password.
• Software Language: Simplified Chinese, Traditional Chinese, English, Arabic and French.
• Machine languages: Chinese, English, Korean and French.
• Alarm function: Intimidation alarm Dismantlement alarm break-in alarm unlock overtime alarm entrance point alarm
• Exit release button : can be connected with usual exit button or remote control release button
• Doorbell output: any working voltage doorbell is available
• Intelligent study fingerprint from year to year.
• Function of inquiring the record
• Lock combination function

LCD

128*64mm

RF ID card option

125KHZ

FRR

≤0.01%

FAR

≤0.0001%

Verification time

≤0.1s

Working mode

standalone work or network

Verification Mode

1:N or 1:1

Fingerprint capacity

2000

Transaction capacity

1000

Record capacity

50000 events

Communication mode

TCT/IP, RS485, USB

Voice display

High definition humanity voice

Bell function

Bell function

Function key

on duty, off duty, out, in

Lock output

NO/NC

Access control interface

Wiegand 26/34 optional, input /output optional

Working voltage/ current

12V/1A

Size

181*91*26mm
