500kw shale gas generator set
Shandong Lvhuandongli Equipment Co.,Ltd
Website:
The Company profile:
Shandong Lvhuandongli Equipment Co,.Ltd is a comprehensive high-tech enterprise which is committed to research, production, marketing and after-sale service of new & enviromental protection generator set.
Our main products are different kind of gas generator set, including biogas generator set, coal bea gas generator set, natural gas generator set, biomass generator set, coke-oven gas generator set and coal gas generator set., ect.
We also specilized in 190 series diesel engine and diesel generator set. The power of all products covers completely, and their power performance, economical efficiency and realiabilityare all in the advanced level of this filed.
Now our products have been exported to more than 30 countries!
The requirments for coal gas genset:
Within1m to the intake valve of gas generator set
1,Shale gas Temperature≤40ºC
2,Pressure 3-20kpa, pressure changing rate≤1kpa/min
3,H2S≤200mg/Nm³
4,NH3≤20mg/Nm3
5,Tar content≤50mg/Nm3
6,Moisture content≤40g/Nm³
7,Heat value≥4.2MJ/Nm3
8,Impurity partile size≤5um, Impurity content≤30mg/Nm3
The technical parameters:
| Model Number (Engine Type) | LH-500GFY |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 400KW/500KW |
| Rated Speed | 1000RPM |
| Rated Frequency | 50Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant Consumption | ≤1.0g/kw.h |
| Engine Capacity | 71.45 L |
| Cylinder Number | 12-V |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 6000x1970x2735mm |
| Weight | 11500kg |

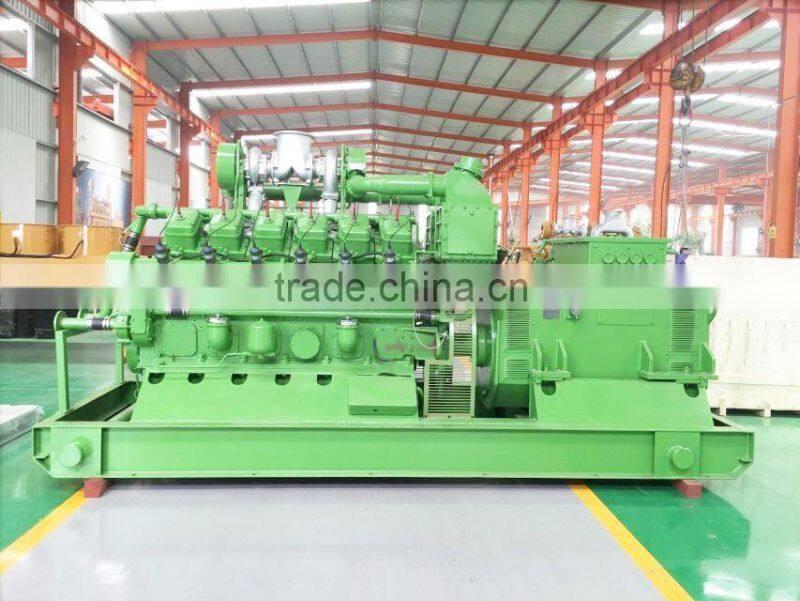

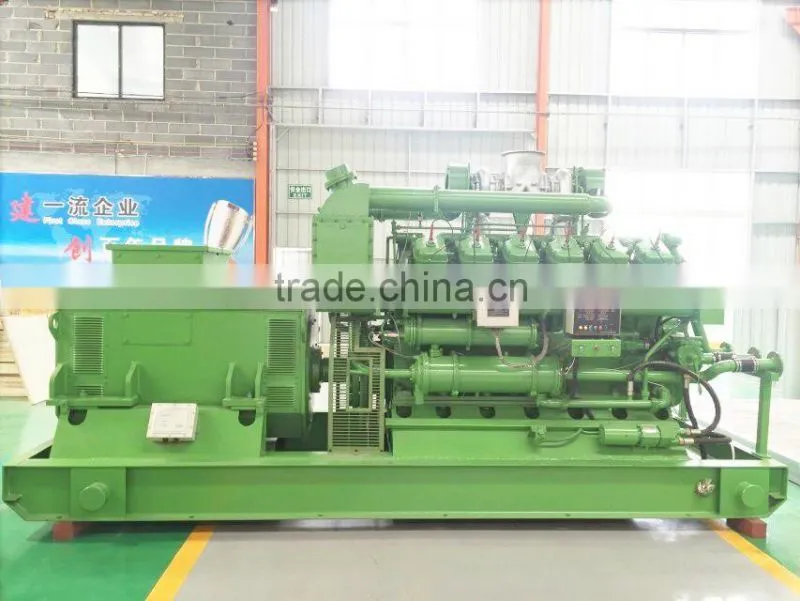

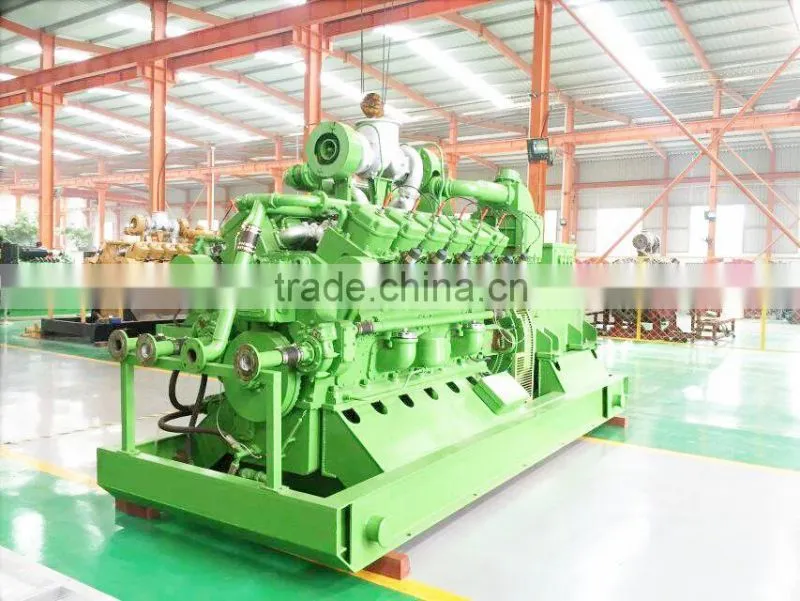

The picture of product:

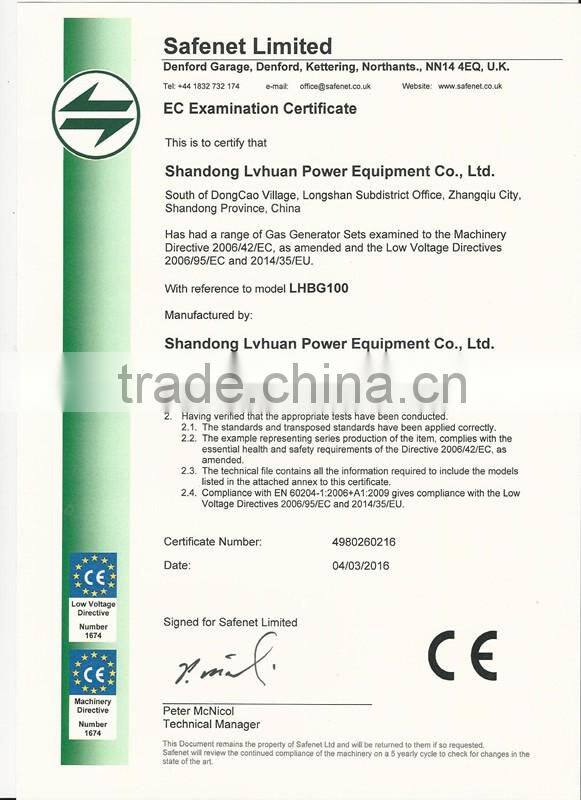

The certificates:
Service committee:
1. Pre-sale service:
1) We will send our engineer to prospect the site of power station free of charge.
2) According to the situation of site, we will provide design drawings, such as power plant floor drawing, cooling system drawing, genset foundation, control room design, etc.
2. Sale service:
1) Operator training would be conducted by Lvhuan technicians during the process of commissioning or Factory training course in China,
2) Installation and commission of the genset would be instructed assisted by Lvhuan technicians at site.
3. After-sale service:
1) We have strong after-sale team, we will response within 24 hours and provide technical supports by phone or site guiding, help our clients to gain the biggeset profit.
2) For the quality problem, we will service for you free of charge during the guarantee period.
3) We provide one year guarantee period and lifetime service.
FAQ:
1. How to choose the right model?
To choose a right model, we need to know required continuous output power, local voltage and frequency and fuel (such as diesel, natural gas, biogas, biomass gas, coal gas, syngas, etc.). For biomass power plant and coal gas power plant, some clients may doesn't have gasification system, then we need information about raw material.
2. What's the warranty?
The warranty is one year. We will offer free service and spare parts during warranty period. Lifetime service will be provided by our trustworthy after-sale team.
3. How to do the maintenance?
Operator training will be provided by our technician. After training, local operator can do the basic maintenance by themselves according to our maintenance manual.
4. Will be operation training offered?
Yes, operator training would be conducted by our technicians during the process of commissioning or factory training course in China.
5. What's about the installation and commissioning?
Installation and commissioning of the genset would be instructed assisted by our technicians on site.
The contacts:
Julia Zhu
Email:julia(at)
Skype:Julia Zhu
Cell phone:+86 15628761716
