Shandong Lvhuan Power Equipment Co,.Ltd.
WE DEVOTE OURSELVES TO GAS POWER GENERATION.
1. Company Introduction
- Since 2008
- Factory area over 40000m2
- Starff over 260 employees
- Technicians over 100 people
- website
2. Advantage
- Strong structure & Strengthen accessories
- Super performance of electric speed governer & Gas pressure regulation system
- Auto voltage regulation & Stable working condition
- Long using life and low-operation cost
- Easy Start & Auto start
- High quality & imported & accurate gas control system
- Low requirement on gas heat value for easy generation
- Strong control system anti-interference ability
3.Requirements For Natural Gas Genset Working Condition
Within 1m from pressure regulating valve of gas intake
- The ratio of CH4 in natural gas ≥70%
- Pressure of natural gas: 80-200kpa, rate of pressure change ≤ 1kpa/min
- H2S ≤ 20mg/Nm3
- Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
-
Moisture content ≤ 40g/Nm3

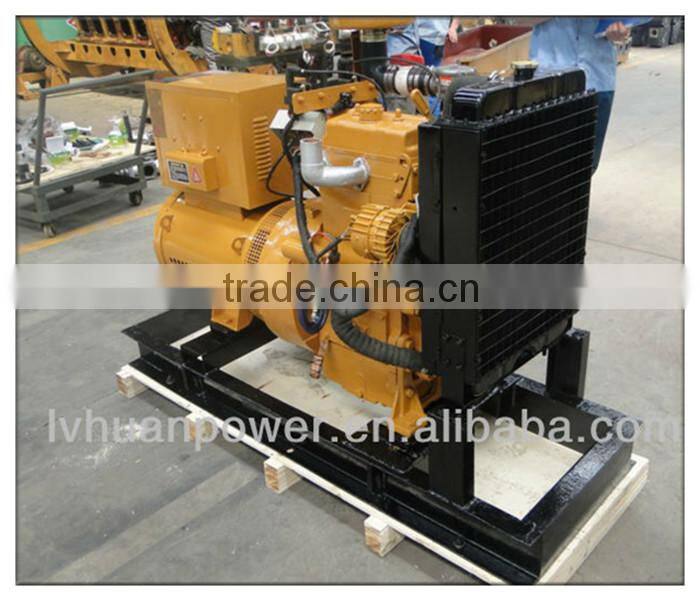

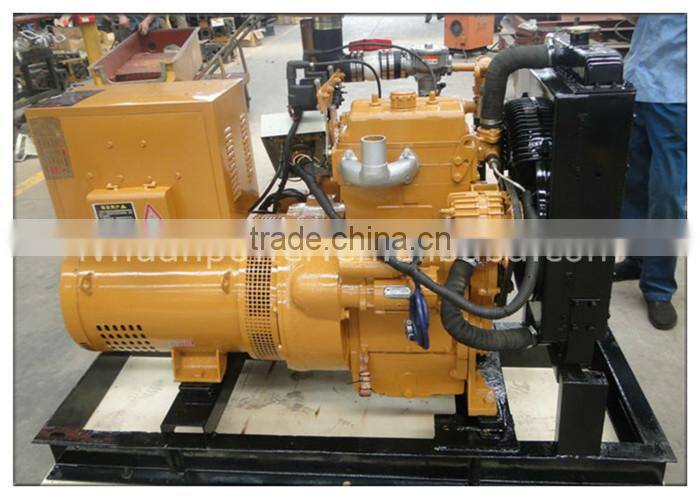

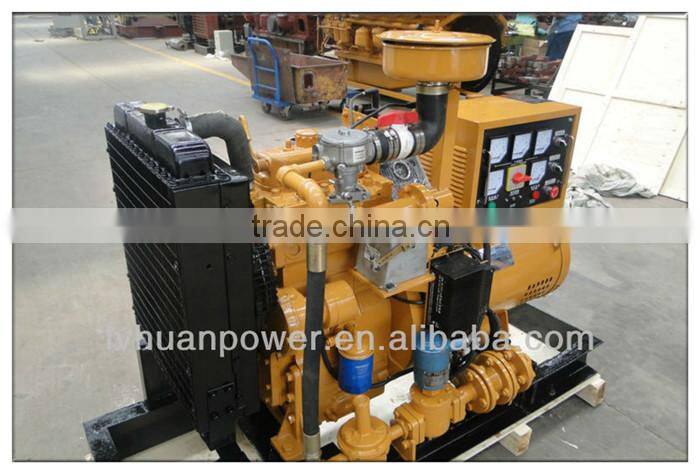

4. Parameter of 10kw Natural gas generator set
Model |
LHNG10 |
Standard |
JB/T9583.1-99 |
Engine model |
LH2100 |
Alternator model |
Brushless /IP23/3PH 4Wire) |
Machine power |
8KW/10KVA |
Rate voltage |
400V / 220V (adjustable) |
Rate frequency |
50/60Hz |
Rate power factor |
0.8 |
Rate speed |
1500r/min |
Speed regulation mode |
Automatic |
Voltage regulation mode |
Automatic |
Operation model |
Auto/Manual |
Cooling mode |
Open/close water cooling |
Start mode |
24V DC electric motor |
5. Parameter of 10kw Natural gas engine
Engine mode |
LH2100 |
Sparking mode |
Sparking pl |
Gas mixing type |
IMPCO |
Heat Consumption |
≤10MJ/kW.h |
Cylinder number&type |
Link |
EGT |
≤650℃ |
Cylinder diameter |
100mm |
Stroke |
115mm |
Displacement |
18.0L |
Lubrication |
Pressure and splash |
Rate speed |
1500r/min |
Cooling model |
Open/closed water cooling |
Emissions targets |
EU Ⅲ |
Noise |
≤105dB |

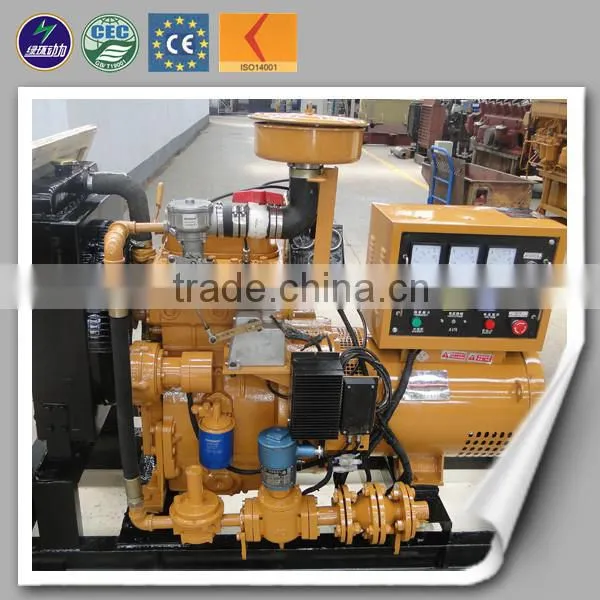

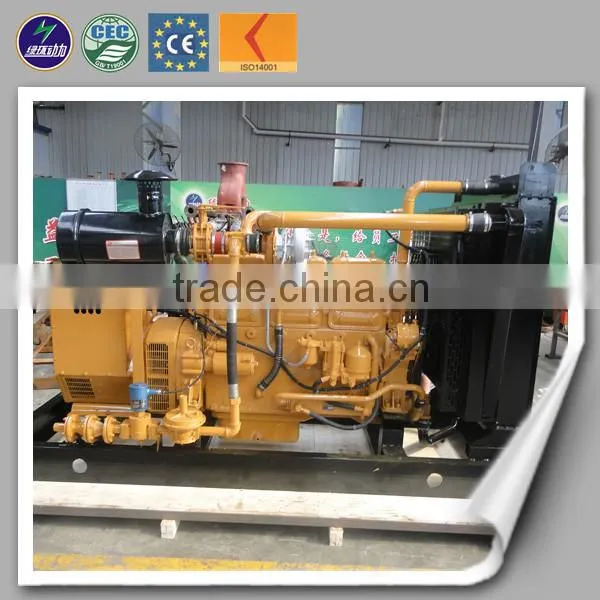

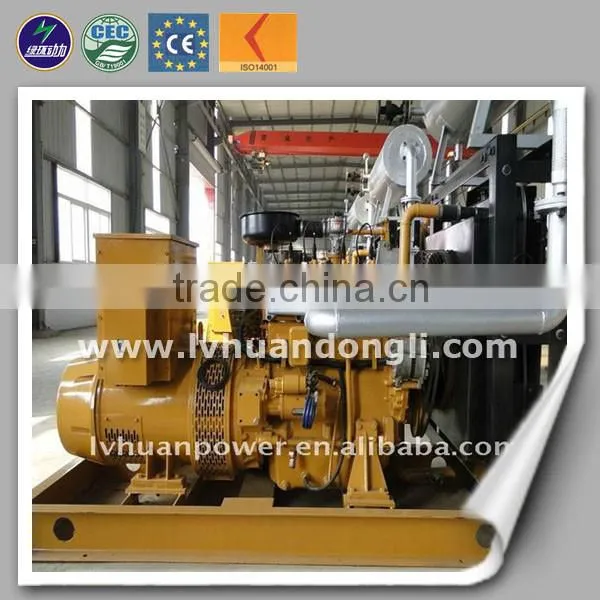

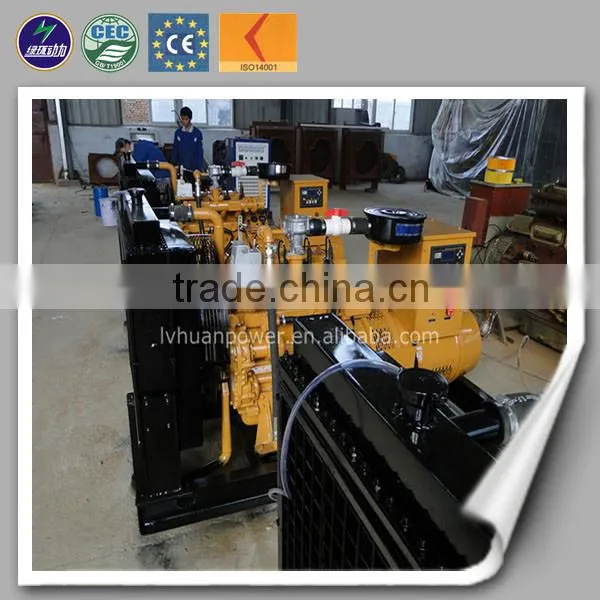

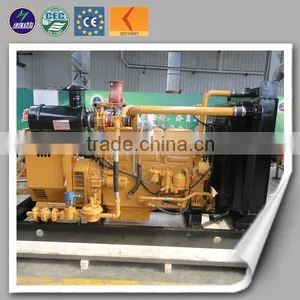

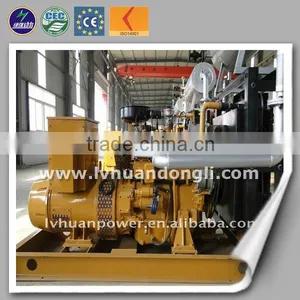

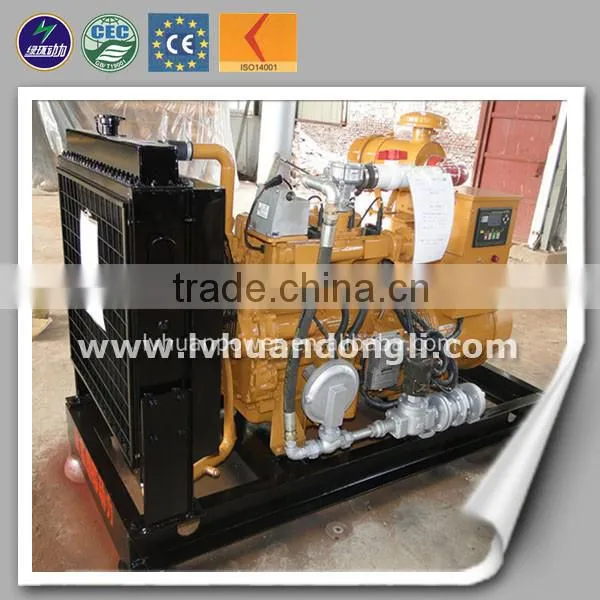

6. More pictures of our equipment
7. Visitors
8. Our factory and workshop

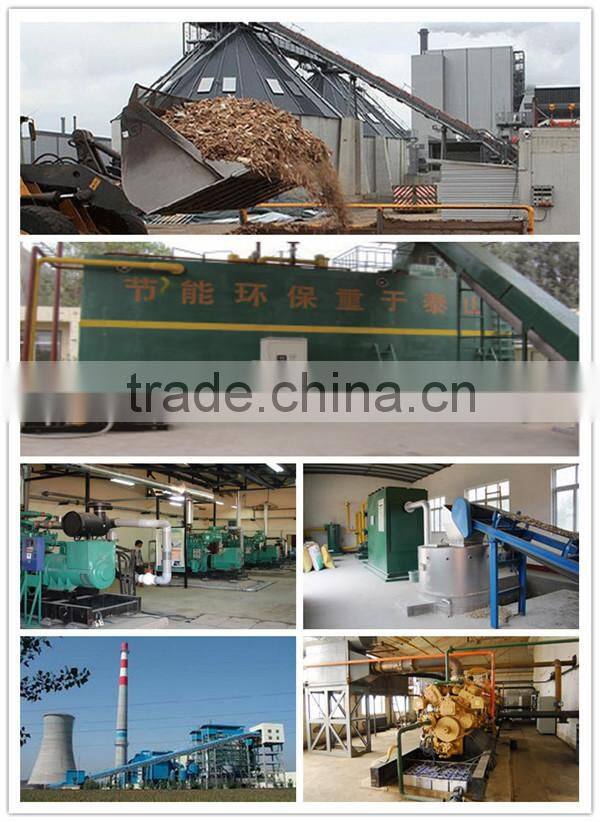

9. Project Cases
10. Certificate
11. Service
1.pre-sale service:
(1)We will send our engineer to prospect the site of power station free to charge.
(2)According to the situation of site we can supply you many drawings:like power station floor plan,
engineering flow sheet of circle cooling system,genset installation,genset foundation,electrical connection and some other techincal support etc.
2.Sale service:
(1)we will send our engineer to the site to guide you the installation of generator set, subsystem and relative equipment.
(2)We will debug the generator set till it can generate power successfully.
(3)We will also supply a technical training to the operators.Orcan send your staff to our company.We can train you till you can operate the generator set.
3.After-sale service:
(1)Our every engineers are in charge of different area,we will response periodically and support you
technical service free of charge,
(2)For the quality problem, we will service for you free of charge during the guarantee period.
(3)One year guarantee period and lifetime service.
(4)we solve quality problem in time when genset doesn’t work,We insure to help our clients to gain the biggest economic profit.
12. Accessories
1.Application scope of the Accessories,such as 12v190,8v190,6190,6135 and other engine types.
2.All parts were from original factories or professional factories,complete in specification,keep good quality.
Sincerely welcome to visit our factory and build future cooperation relationship. Helping our customer generating electricity is our purpose.
