Home > Products > Natural Gas Genset > CE ISO Approved 200kw natural gas generator lvhuan with Siemens Alternator

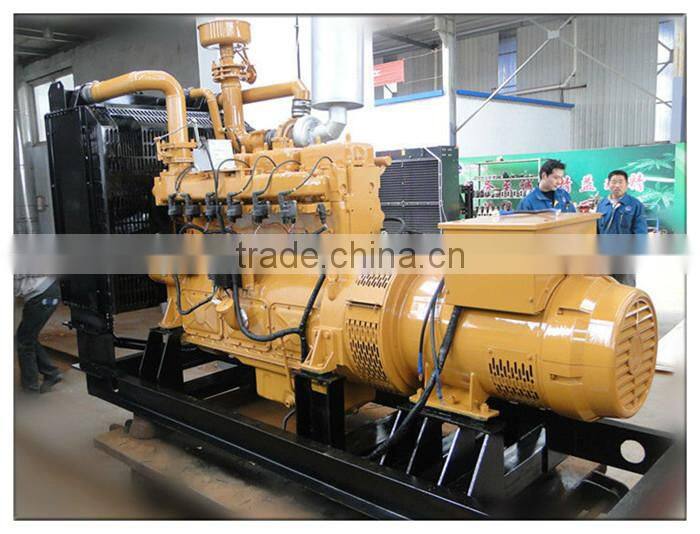

CE ISO Approved 200kw natural gas generator lvhuan with Siemens Alternator
- 30 Set / Sets per Month
- Qingdao Port
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | LVHUAN | Model Number: | LHNG200 |
Output Type: | AC Three Phase | Speed: | 1500/1800RPM | Frequency: | 50/60Hz |
Rated Power: | 200kw | Rated Voltage: | 400V/230V | Rated Current: | AC 3-Phase, 4 wire |
Product Description
Shandong Lvhuan Power Equipment Co,.Ltd.
WE DEVOTE OURSELVES TO GAS POWER GENERATION.
1.Company Introduction
- Since 2008
- Factory area over 40000m2
- Starff over 260 employees
- Technicians over 100 people
- website
- Product Description
2. Scope of Application
Gas electricity generation, using pure and high-LHV natural gas to provide stable, continous and large amounts of electricity.
3. Advantage
- Advanced configuration keep accurate ans stable working condition under high speed working speed
- High generalization, easy maintenance, low maintenance cost.
- Economical, low operating cost
- Reduced the carbon deposition on the wear of the engine cylinder and the valve to prolong the using life of the genset.
- Adopt one of the world's most advanced gas control technology, fully available to the characteristics of fuel gas.
- Powerful low pressure gas SPI (single point Injection) system used for various supercharger premixed engine.
- Suitable for differnt concentration methane and propane, variety of quality gas.
- Precise air-fuel ratio rarefied combustion control and Generator speed/load control
- Realize lean burn, reduce the intake pipe tempering and improved efficient to reduce the heat load.
4. High Configuration
- Ignition system: ALTRONIC(USA)
- Starting system: DC24V electric motor.
- Mixer: IMPCO(USA)
- Sparking plug:STITT
- Engine Control System: Woodward(USA), HEINZMANN(Germany)
- Electric Control System: ComAp(Czech), Deepsea(UK)
- Alternator: Siemens, LEROY-SOMER, Marathon
- Gas Requirements
5.Gas Requirements of Natural Gas Genset
Within 1m from pressure regulating valve of gas intake
- The ratio of CH4 in natural gas ≥70%
- Pressure of natural gas: 80-200kpa, rate of pressure change ≤ 1kpa/min
- H2S ≤ 20mg/Nm3
- Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
- Moisture content ≤ 40g/Nm3
- Pictures
6. More pictures of our equipment
7. Visitors
8. Our factory and workshop
9. Project Cases
10. Certificate
10. Service
1.Pre-sale service:
A.Our engineers are available for onsite prospect before installation free to charge.
B. Foundation drawing and detailed Dimension free form us.
2.In-sale service:
A. Onsite overall guide installation,operation and maintenance training .
B. Assistance and instruction of trial running.
3.After-sale service:
A. 24 hours online or in person after sale service.
B.12 months warranty. We take care of all errors/breakdowns in this period.
4.Spare parts service:
A.All spares parts on our gensets supplied by us.
B. Free spare parts together with genset when shipping.
Sincerely Welcome to Our Factory
Natural gas generator list | |||||
Gen-set mode | Prime power | Continuous power | Engine Mode | Displacement | |
LHNG10 | 10kw | 8kw | LH2100 | 1.80L | |
LHNG20 | 20kw | 16kw | LH4100 | 3.61L | |
LHNG30 | 30kw | 24kw | LH4105 | 4.32L | |
LHNG40 | 40kw | 32kw | LH6105 | 6.45L | |
LHNG50 | 50kw | 40kw | LH4135 | 8.58L | |
LHNG60 | 60kw | 48kw | LH4135 | 8.58L | |
LHNG70 | 70kw | 56kw | LH6135 | 12.8L | |
LHNG80 | 80kw | 64kw | LH6135 | 12.8L | |
LHNG90 | 90kw | 72kw | LH6135 | 12.8L | |
LHNG100 | 100kw | 80kw | LH6135 | 12.8L | |
LHNG120 | 120kw | 100kw | LH12V135 | 25.75L | |
LHNG150 | 150kw | 120kw | LH12V135 | 25.75L | |
LHNG180 | 180kw | 144kw | LH12V135 | 25.75L | |
LHNG200 | 200kw | 160kw | LH12V135 | 25.75L | |
LHNG300 | 300kw | 240kw | LH6190 | 35.70L | |
LHNG400 | 400kw | 320kw | LH12V190 | 71.45L | |
LHNG500 | 500kw | 400kw | LH12V190 | 71.45L | |
Parameter of natural gas generator | |||||
Rate Voltage | 400V/230V | ||||
Phase | 3Phase 4 wires | ||||
Rate Frequency | 50HZ/60HZ | ||||
Power Factor | 0.8 | ||||
Voltage Regulating Range | 95%-105% | ||||
Voltage Steady State | ≤±2% | ||||
Voltage Transient State | ≤±10% | ||||
Voltage Settling | ≤1S | ||||
Voltage Volatility | ≤±0.5% | ||||
Frequency Steady State Regulation Rate | ≤0.5% | ||||
Frequency Transient State Regulation Rate | ≤±10% | ||||
Heat Consumption | 10mj/kw.h | ||||
Pressure | 5-20kpa | ||||
Intake Mode | Natural intake | ||||
Sparking Mode | Sparking plug | ||||
Voltage Regulation Mode | automatic | ||||
Speed Regulation Mode | Electronic speed regulation | ||||
Lubricating Mode | Pressure and splash | ||||
Cooling Mode | Closed/open circulating water cooling | ||||
Starting Mode | 24V electric motor | ||||
Overhaul Time | ≥30000h | ||||
Noise | ≤105aB(A) | ||||
Exhaust Temperature | ≤650°C |
FAQ
1)How to choose the right model?
Firstly, depending on the loading equipment or the total power you need.
Secondly, depending on the hours the genset working per day.
Thirdly, depending on the LHV of the fuel gas.
Please consult us and we will recommend you the most suitable modell for your need.
2) What kind of gas could generate electricity?
We use the internal combustion engine. And the suitable gas are natural gas, biogas, syngas and LPG.
If the fuel gas is not the natural gas, please contact us and we will recommend you the suitable model based on the LHV of the fuel gas. And we will provide our professional suggestions.
3) What will be the electricity used for?
Please kindly tell us the electricity will be used for the loading equipment or for the grid. We will recommend the suitable model for the loading equipment and the suitable configuration for the grid.
4) Voltage and frequency required.
Necessary information could be supplied. Our standard configuration is 220/380V and 50/60HZ. Please contact us for other voltage and frequency. We will make the suitable proposal.
5) What is the consumption of the genset?
This will be based on the LHV of the fuel gas. Please contact us and we will provide you the exact data.
6) Warranty
1Year not including the quick-wear parts. But we could provide you some free parts with the genset.
************************************************
