Home > Products > Coke Oven Gas Genset > 500kw Coke Oven Gas Genset

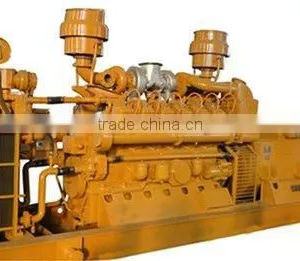

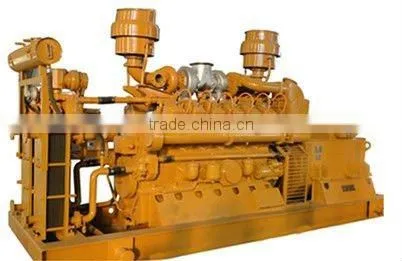

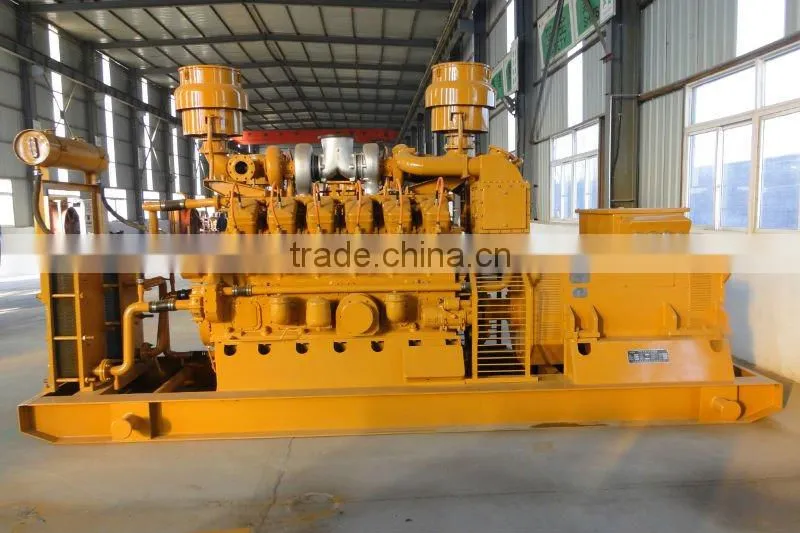

500kw Coke Oven Gas Genset
Negotiable
/ Set
1 Set(Min. Order)
- Qingdao
- T/T Money Gram Credit Card PayPal
You May Like
Product Details
| Place of Origin | Shandong, China | Brand Name | LVHUAN | |
| Model Number | LHCOG500 | Output Type | AC Three Phase | |
| Speed | 1000r/min | Frequency | 50Hz | |
| Rated Power | 500kw | Rated Voltage | 400/230v | |
| Rated Current | 910A |
Product Description
Specifications
1.OEM service offered2.low gas consumption
3.have obtained CE and ISO9001:2008,ISO14001:2004
| Model Number (Engine Type) | LHCOG500 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 400KW/500Kva |
| Rated Speed | 1000/1200rpm |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1 |
| Heat consumption | ≤9.8mj/kw.h |
| Lubricant Consumption | ≤1.1g/kw.h |
| Engine Capacity | 71.4 L |
| Cylinder Number | 12-V |
| Cylinder Bore | 190mm |
| Stroke | 210mm |
| Starting System | DC 24V electic motor |
| Cooling method | water cooler |
| Lubricant method | Passive and splashing lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Siemens |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, ISO14001. CE |
| Warranty | 1 year or 1000 running hours,which occurs firstly |
| Type | Open |
| Control system | ATS and AMF |
| Function | Automatic alarm system |
| Size | 6200x2100x2800mm |
| Weight | 12500kg |
