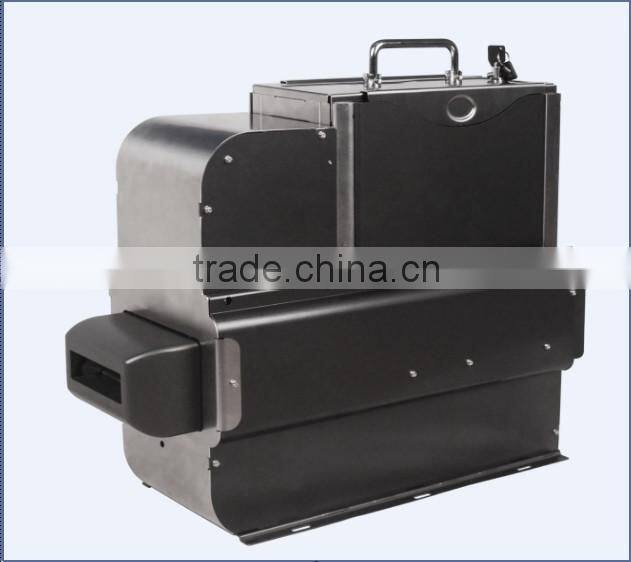

(TTCE-D1630) U-key Card Dispenser With Scanner

(TTCE-D1630) U-key Card Dispenser With Scanner photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
TTCE
Model Number:
D1630
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name TTCE
Model Number D1630

Specifications

1.U-key card dispenser with scanner
2. RS232 interface control
3.CE,FCC

(TTCE-D1630) U-key card dispenser with scanner


Product Description

(TTCE-D1630) U-key card dispenser with scanner



Item

Content

Operation power

24VDC (Max current 4.5A, static current 0.1A),recommend power:24V/5A

Operation temperature

-20 °C to 85 °C

Operation humidity

30-90% (RH

)

Interface

RS232

Operation condition

Multiple card stay position control

Card size

Width:80±0.5 mm Length:100±0.5 mm Thickness:20mm±0.5 mm   Card material:paper card or polyester card

N.W

20KG

Stacker capacity

Standard 30pcs, extended 45pcs(based on thickness 20mm of card box)

Few card Alert

Standard 10pcs, extended 15pcs

Error box capacity

5pcs

Transmission device

500,000pcs

Speed

15pcs/mins



Featurer



Active and closed stacker and capturing box, easy to carry with strong safety

The stacker capacity will according to the actually Ukey size(For standard size, can load 30pcs or

45pcs)

Smart alerts status, support card empty and pre-empty alert etc.

Signal RS232 interface control,24V power supply

Reserve the install position of barcode scanner module



Application



Bank ATM kiosk




Packaging & Shipping





1. Packaging :



Small box. 100pcs/Carton. 27KG/carton. Packing for 45mm magnetic card reader.

2. Shipping

  • Air, Sea, Express (DHL, FedEx, UPS, EMS, TNT and so on)
  • EXPRESS: around 3-7 working days to arrive
  • INTERNATIONAL AIR MAIL: usually around 2-4 days to arrive, will also depend on which destination port
  • By sea: depend on which destination port



3.Payment:

  • T/T in advance
  • Western Union
  • Escrow
  • L/C

(TTCE-D1630) U-key card dispenser with scanner




Our Services





  • 12 months of shipment normally. Some designated models can have as long as 24 months warranty.

  •  Each customer with one of our engineer follow up ,offer 24 hours online service .



RMA Procedure:



If you suspect your product is not functioning properly, please contact us to help determine whether your product is defective within warranty. Once determined defective you will receive an RMA authorization number for repair or replacement. Customers will return the defective product to us. Upon receipt of defective products, warranty verification will include visual inspection and testing for normal wear and tear, alteration, and functional compliance of the TTEC product. Defective products will be repaired or replaced and shipped via express within 30 days or best effort. Customers will not be charged for warranty repairs. However, if a returned product does not meet warranty verification then testing, repair, and/or shipping fees may apply.



Dead-on-Arrival (DOA):



Any product found to be defective within 30 days of shipment shall be deemed Dead on Arrival (DOA). DOA products will be advance replaced and shipped via express.
