TTCE-M100---Double Door Protection Motor Card Reader

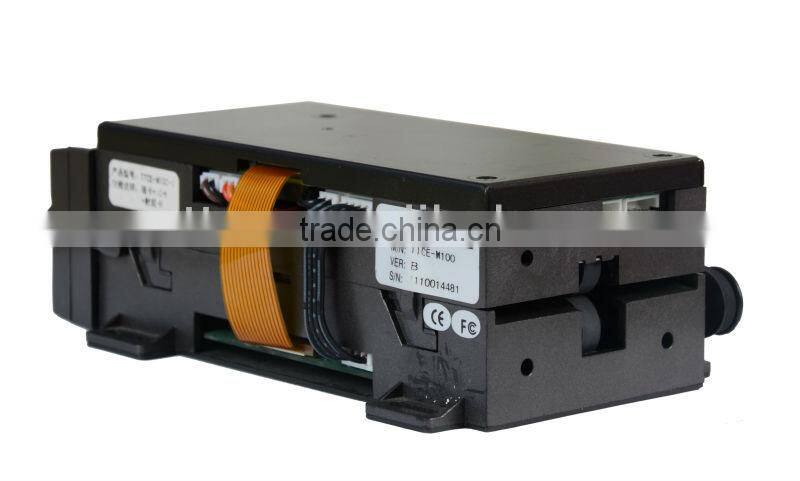

TTCE-M100---Double Door Protection Motor Card Reader photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
TTCE
Model Number:
TTCE-M100
Payment & Shipping
Payment Methods:
Port of Shipment:
SZ
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name TTCE
Model Number TTCE-M100

Specifications

1. motor card reader
2.IC card RF card ,Magnetic card
3.Double door access controller card reader with patant

TTCE-M100---Double Door Access Controller Motor Card Reader


Product Description





APPLICATIONS of the automatic card dispenser:



(1)Parking lot card issuing system

(2)Self-Service Machines

(3)Automatic ticketing machines





Reference :



Subject

Specification

Magnetic card

Accordance with ISO7810 7811 standard card

IC card

EMV,7816

RF card

S50,S70,ID card

SIM card

8 port to insert card

Card entry method

Magnetic signal, Optoelectronic signal and rear card insert

Motor door

Allow enabled card to insert

Mechanical door

Prevent dust and foreign body

Alert Lamp

Card entry alert, power on alert, IC card power on alert

Card stop position

Multiple card stop position

Subject

Parameter

Input Voltage

12 V±5%

Work current

Max 1.5A

Communication Method

RS232( Ex-works 9600BAUD)

Work environment

Temperature:-10°C ~ 50°C Humidity:10% ~ 90% RH

Storage environment

-20°C ~ 70°C

Magnetic life span

Not less than 1,000,000 times

Dimension

140.2mm(Length)*83.5mm(Width)*40.5mm(Height)

Weight

350g

Input voltage detection

have protection alert when voltage is above 13v or below 11V

Input voltage protection in negative direction

Not above 40V



 TTCE-M100---Double Door Protection Motor Card ReaderTTCE-M100---Double Door Protection Motor Card Reader




Packaging & Shipping





Packing Detail:





TTCE-M100---Double Door Protection Motor Card Reader





Shipping:

  • Air, Sea, Express (DHL, FedEx, UPS, EMS, TNT and so on)
  • EXPRESS: around 3-7 working days to arrive
  • INTERNATIONAL AIR MAIL: usually around 2-4 days to arrive, will also depend on which destination port
  • By sea: depend on which destination port

TTCE-M100---Double Door Protection Motor Card Reader




Our Services







Warranty:



  • 12 months of shipment normally. Some designated models can have as long as 24 months warranty.



 RMA Procedure:



If you suspect your product is not functioning properly, please contact us to help determine whether your product is defective within warranty. Once determined defective you will receive an RMA authorization number for repair or replacement. Customers will return the defective product to us. Upon receipt of defective products, warranty verification will include visual inspection and testing for normal wear and tear, alteration, and functional compliance of the TTCE product. Defective products will be repaired or replaced and shipped via express within 30 days or best effort. Customers will not be charged for warranty repairs. However, if a returned product does not meet warranty verification then testing, repair, and/or shipping fees may apply.



Dead-on-Arrival (DOA):



Any product found to be defective within 30 days of shipment shall be deemed Dead on Arrival (DOA). DOA products will be advance replaced and shipped via express.





Company Information



   Patant for card dispenser (M series ):





TTCE-M100---Double Door Protection Motor Card Reader





Award :



TTCE-M100---Double Door Protection Motor Card Reader



TTCE-M100---Double Door Protection Motor Card Reader



TTCE-M100---Double Door Protection Motor Card Reader





2010 China International Finantial Exhibition :



TTCE-M100---Double Door Protection Motor Card ReaderTTCE-M100---Double Door Protection Motor Card Reader




FAQ



Why choose us?



1)Our factory have 13 years experiences in this field.A group of experienced technicians ensure good quality  and after service for you.

2)Direct Factory competitive price,save each penny for you.
