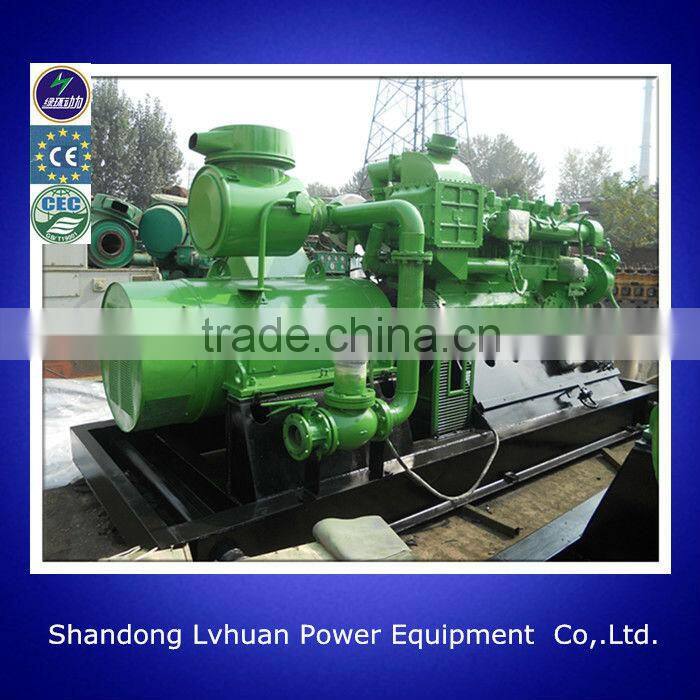

CE approve 180kva biomass generator price
1. Introduction
Shandong Lvhuan Power Equipment Co,. Ltd is a comprehensive high-tech enterprise. Our main products include coal-bed gas generator, biogas generator set, natural gas generator set, biomass generator set, coke-oven gas generator set and coal gas generator set.
2.Requirements For Biomass Gas Genset Working Condition
Within 1m from pressure regulating valve of gas intake
- Gas temperature ≤ 40℃
- Pressure 3-20kpa, pressure changing rate ≤ 1kpa/min
- H2S ≤ 200mg/Nm3
- NH3 ≤ 20mg/Nm3
- Tar Contecnt ≤ 20 mg/Nm3
- Heat value ≥ 4.2MJ/Nm3
- Impurity particle size ≤ 5μm, impurity content ≤ 30mg/Nm3
- Moisture content ≤ 40g/Nm3
3. Main Technical Parameter of Small-medium Power Series Biomass Gas Gen-set
Output power 20-300kw
Output voltage 400V/230V
Frequency 50/60Hz
Exciting method brushless excitation
Voltage regulation mode antomatic
Phase AC 3-Phase, 4 wire
Application areas Rubbish landfill disposal, animal husbandry and livestock breeding dejection disposal, industrial organism disposal, various of wood and crops
4.Technical Parameters of Biomass Gas Gen-set
| Model Number (Engine Type) | LHNG180 |
| Brand Name | LVHUAN |
| Prime Power/Standby Power | 144KW/180KW |
| Rated Speed | 1500/1800RPM |
| Rated Frequency | 50/60Hz |
| Rated Voltage | 400V/230V |
| Phase | AC 3-Phase, 4 wire |
| Voltage Stability | ≤±2% |
| Voltage transient | ≤±10% |
| Voltage Stable time | ≤1s |
| Heat consumption | ≤11mj/kw.h |
| Lubricant consumption | ≤1.0g/kw.h |
| Engine Capacity | 25.80 L |
| Cylinder Number | 12 |
| Cylinder Bore | 135mm |
| Stroke | 150mm |
| Starting System | DC 24V electric motor |
| Cooling method | water cooler |
| Lubricant method | Passive and flying lubricant |
| Isolation class | H |
| Protection | IP23 |
| Alternator | Chinese Stamford |
| Power Factor | 0.8 lagging |
| Exciting method | brushless |
| Colour | your choice |
| Certificates | ISO 9001:2008, CE |
| Warranty | 1 year or 1000 running hours which arrives first |
| Type | Open |
| Control system | Automatic alarm system |
| Size | 3200x1350x1750mm |
| Weight | 3100kg |
5. More Equipment Pictures
6. General Standard Spare Parts Supplied
7. Project Cases
8. Certificate
9. Sale service
