Alibaba china hot sale motor atm card reader machine

Specifications

motor atm card reader machine
1.Barcode/Payment kiosks Magnetic Card dispenser
2.CE,FCC

Alibaba china hot sale motor atm card reader machine







INTRODUCE:



This Kiosk card dispenser max with barcode card dispense function. It can operate even dirty cards. In china market, it widely use in hospital, telecome, financial card issue work. Since it support kinds of cards, it also use for vending machine use, and also many other self-service kiosks. Please feel free contact with us for the further detail of barcode ticket dispensing parking lot system, thanks.



FEATURES of motor atm card reader machine

 --Modular structure, easy to disassemble and maintain machine

--High precision card transmitting channel (moulding)

--Extremely strong card compatibility -

-Support jitter card entry and out, which can prevent from stealing card information effectively

--With retrieve box to capture bad card or non-valid card

--Smart card space adjustment ensures the accurracy of card out -

-Customize function module freely

--Industrial design, Surface finished with corrosive and abrasion resistant paint, suitable for high and low temperature, and dusty conditions

--Six optional card space adjustment, CNC precision ensures absolute card unanimity of card space



APPLICATONS of motor atm card reader machine



(1) Parking lot management system

(2) Automatic vending machine system

(3) Bank self-service open account card issue

(4) Telecom and electric power business card issue

(5) Park ticket vending system

(6) Card initialization issue and sort

(7) Subway or public transport card issue



Technical data

Subject	Content
Model	TTCE-K710
Operation power	24VDC(Max. Current 2A,static current 0.1A)
Card stay position	Multiple card stop position
Operation condition	Install in the cabinet
Card thickness	width : 54 ± 0.5 mm  Length : 85 ± 0.5 mm Thickness:
Card material	Paper or PVC
Stacker capacity	150 pcs standard cards at thickness of 0.76mm
card type	Mag/RFID/IC card
Transmission device	500,000pcs
IC card contact point	500,000pcs
Magnetic head life span	800000passes
Few card Alert	7-50 pcs  (Preset 15pcs of 0.76mm thick cards)
Interface	RS232
Dimension	290*92*220mm
Weight	2.0KG

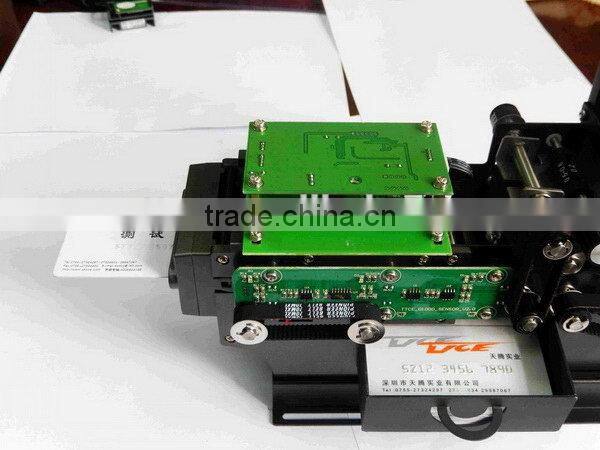

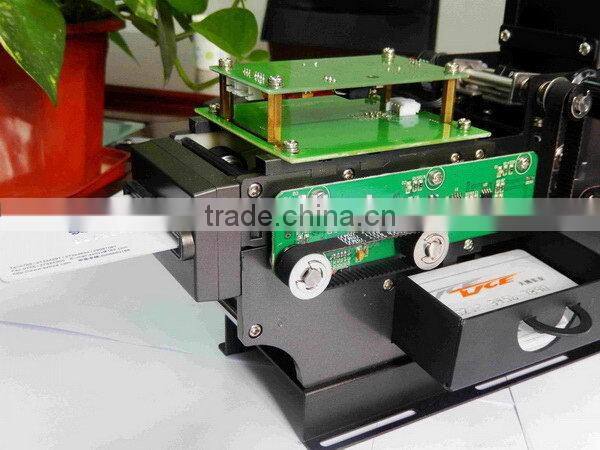

Pictures of  motor atm card reader machine















Packaging

Standard packing: 2sets/carton. Payment kiosks Magnetic Card dispenser











Shipping



• Air, Sea, Express (DHL, FedEx, UPS, EMS, TNT and so on)
• EXPRESS: around 3-7 working days to arrive
• INTERNATIONAL AIR MAIL: usually around 2-4 days to arrive, will also depend on which destination port
• By sea: depend on which destination port







Warranty:

• 12 months of shipment normally. Some designated models can have as long as 24 months warranty.



 RMA Procedure:



If you suspect your product is not functioning properly, please contact us to help determine whether your product is defective within warranty. Once determined defective you will receive an RMA authorization number for repair or replacement. Customers will return the defective product to us. Upon receipt of defective products, warranty verification will include visual inspection and testing for normal wear and tear, alteration, and functional compliance of TTCE product. Defective products will be repaired or replaced and shipped via express within 30 days or best effort. Customers will not be charged for warranty repairs. However, if a returned product does not meet warranty verification then testing, repair, and/or shipping fees may apply.



Dead-on-Arrival (DOA):



Any product found to be defective within 30 days of shipment shall be deemed Dead on Arrival (DOA). DOA products will be advance replaced and shipped via express.

Our company

Workshop

Exhibition

Certification



Why choose us?

1)Our factory have 13 years experiences in this field.A group of experienced technicians ensure good quality  and after service for you.

2)Direct Factory competitive price,save each penny for you.

motor atm card reader machine
