Excellent Quality Security Pos Card Vending Machine/dispenser

Excellent Quality Security Pos Card Vending Machine/dispenser photo-1
Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
TTCE
Model Number:
D2800
Payment & Shipping
Payment Methods:
Port of Shipment:
sz
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name TTCE
Model Number D2800

Specifications

pos card vending machine/dispenser
1.Six shifts card space adjustment
2.Support Mag/RFID/IC card

Excellent quality security pos card vending machine/dispenser



Excellent quality security pos card vending machine/dispenser


Product Description



Main features and functions of pos card vending machine/dispenser



1) Card empty and pre-empty detect function and sound alarm .

2) Capturing card through a special card retrieving box.

3) Card thickness adjustment is convenient, precise and easy to operate.

4RS232 control interface. may make multiple machine communication.

5)Pre-dispensing function accelerates the speed and ensures the continuous card issuing.



APPLICATIONS of pos card vending machine/dispenser



(1)Parking lot card issuing system

(2)Self-Service Machines

(3)Automatic ticketing machines



Technical data

Subject

Content

Model

TTCE-D2800

Operation power

24VDC(Max current 2A, static current 0.1A)
Card stay position Multiple card stay position control
Operation condition Install in the cabinet
Card thickness Width: 54 ± 0.5 mm Length : 85 ± 0.5 mm Thickness: 0.2 – 2.0mm adjustable
Card material Paper card or polyester card
Stacker capacity 500pcs standard cards based on the thickness of 0.76 mm
Few card Alert 7-50 pcs  (Preset 15pcs of 0.76mm thick cards)
Interface RS232/TTL
Dimension TTL Interface 173(l)*98.1(w)*373(h) mm
Weight 3.1KG

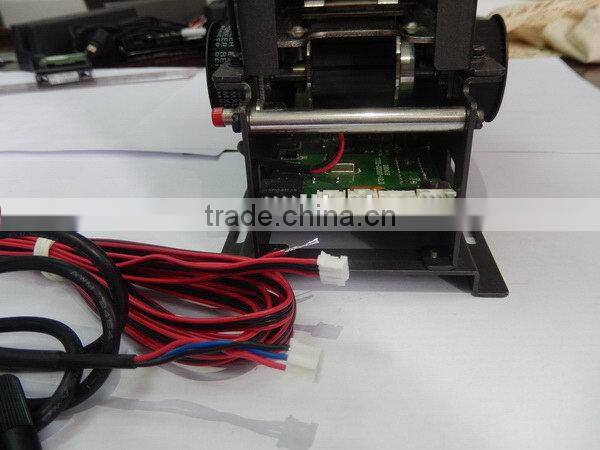

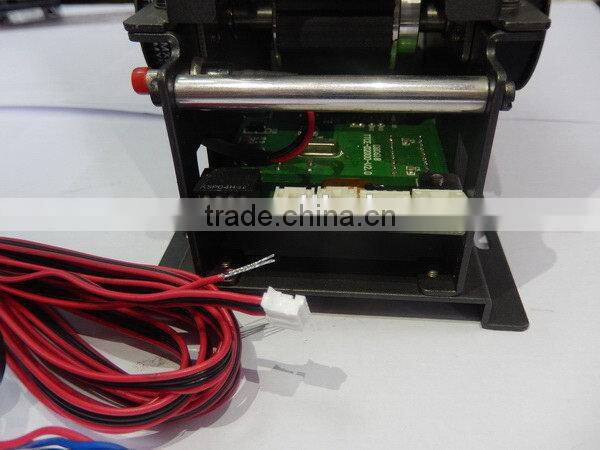

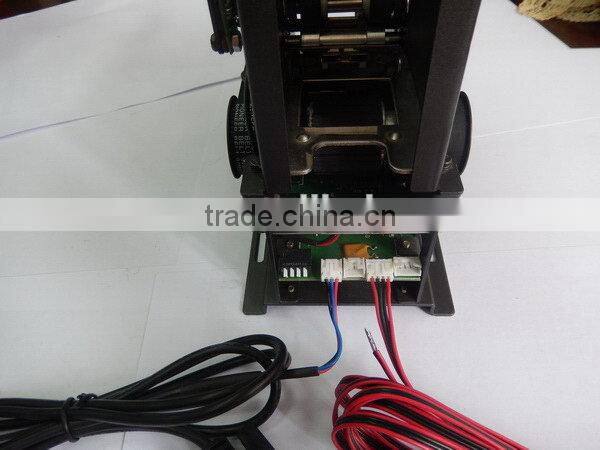

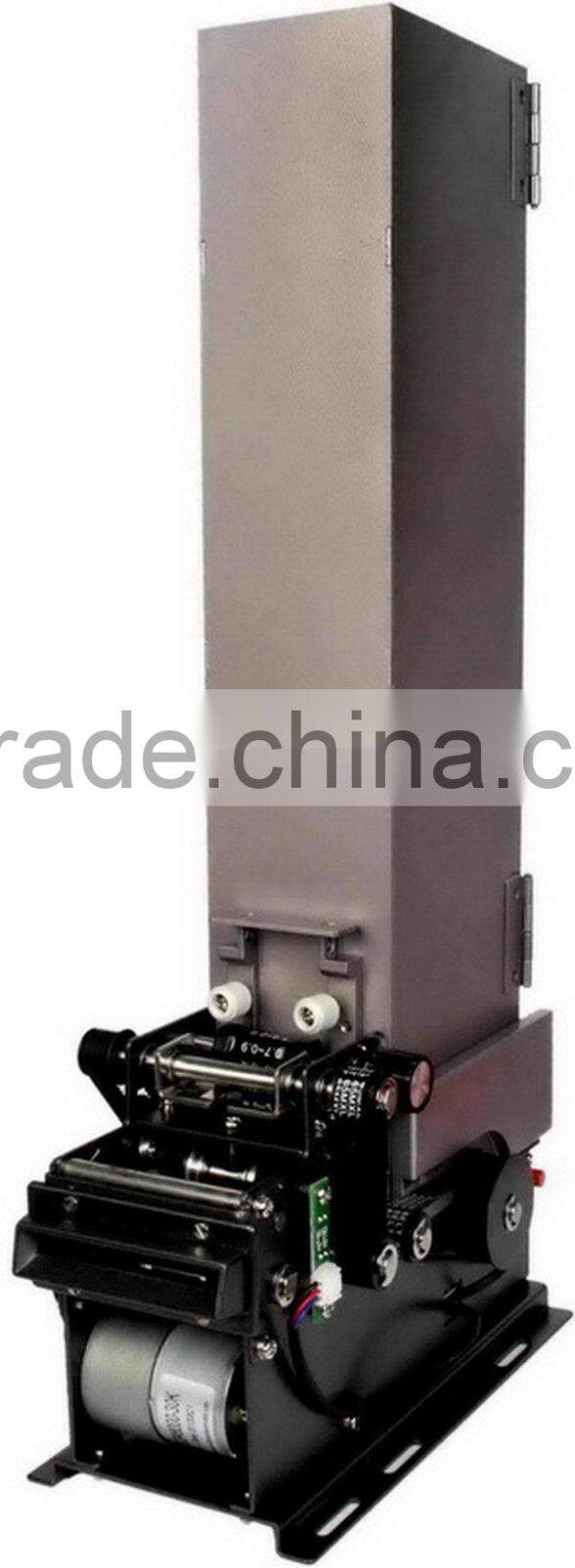

Pictures of  pos card vending machine/dispenser

Excellent quality security pos card vending machine/dispenser

Excellent quality security pos card vending machine/dispenser

Excellent quality security pos card vending machine/dispenser

Excellent quality security pos card vending machine/dispenser

Excellent quality security pos card vending machine/dispenser


Packaging & Shipping of pos card vending machine/dispenser



Packing Detail:



Standard packing: 1sets/carton.The D1000 Automatic Card dispenser packing can be make to be 4sets/carton or other packing if there is larger order.



Excellent quality security pos card vending machine/dispenser







Packaging & Delivery



Detail :3-5days after product details and payment were confirmed .





Shipping:

  • Air, Sea, Express (DHL, FedEx, UPS, EMS, TNT and so on)
  • EXPRESS: around 3-7 working days to arrive
  • INTERNATIONAL AIR MAIL: usually around 2-4 days to arrive, will also depend on which destination port
  • By sea: depend on which destination port
Excellent quality security pos card vending machine/dispenser

Our Services



Warranty:



  • 12 months of shipment normally. Some designated models can have as long as 24 months warranty.



 RMA Procedure:



If you suspect your product is not functioning properly, please contact us to help determine whether your product is defective within warranty. Once determined defective you will receive an RMA authorization number for repair or replacement. Customers will return the defective product to us. Upon receipt of defective products, warranty verification will include visual inspection and testing for normal wear and tear, alteration, and functional compliance of the TTCE product. Defective products will be repaired or replaced and shipped via express within 30 days or best effort. Customers will not be charged for warranty repairs. However, if a returned product does not meet warranty verification then testing, repair, and/or shipping fees may apply.



Dead-on-Arrival (DOA):



Any product found to be defective within 30 days of shipment shall be deemed Dead on Arrival (DOA). DOA products will be advance replaced and shipped via express.
