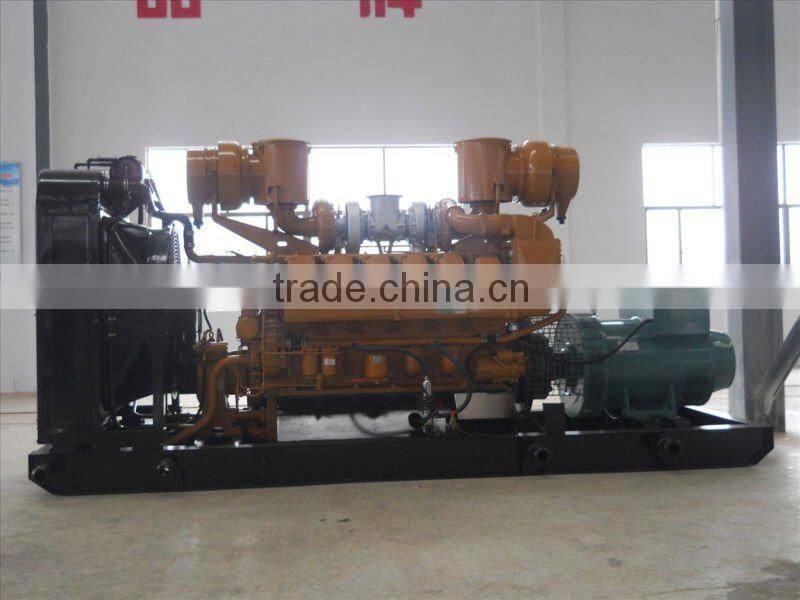

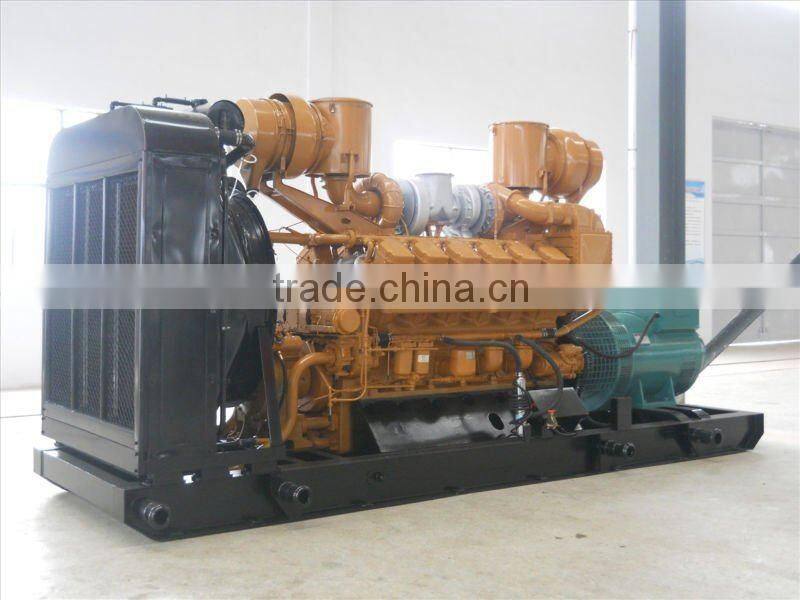

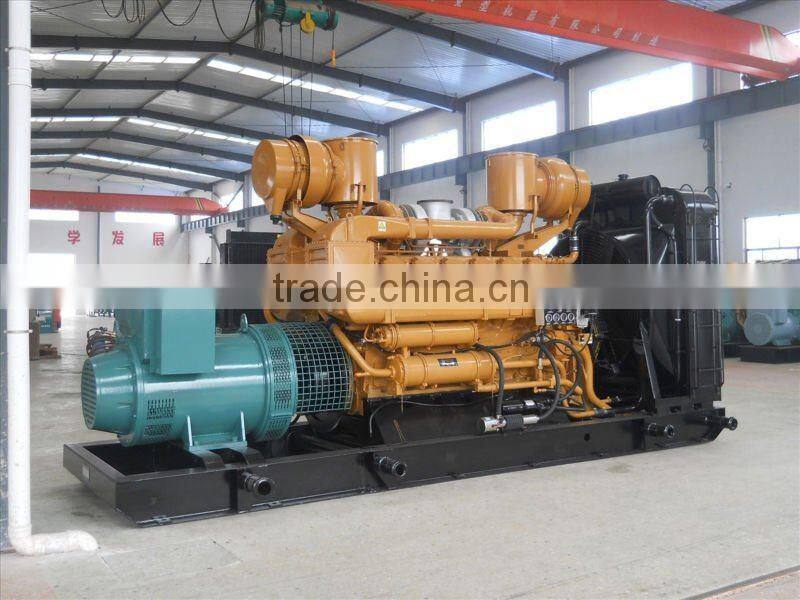

Specifications
1. Jichai diesel generator ISO9001,140012. China one most famous brand
3. reliable quality
4. excellent work efficiency
ENGINE DATA
Manufacturer | Jinan Diesel Engine Co.,Ltd |
Model | G12V190ZL1 |
Type | Four stroke, water cooled, turbocharged and after-cooled, direct injection |
Rated speed(RPM) | 1500 |
Max. output(kW) | 992 |
Cylinder no. | 12 |
Cylinder arrangement | V 60° |
Bore/Stroke(mm) | 190/210 |
Total displacement(L) | 71.45 |
Compress ratio | 14:1 |
Intake system | Turbocharged |
Governor | Mechanical |
Start system | 24V, Electrical start |
Battery capacity | 4×195Ah |
Max. allowable back pressure(kPa) | 3 |
Cooling system | Closed water cool |
Coolant capacity(L) | 250(high); 160(low) |
Coolant temp.(°C) | 75~80(high); 45(low) |
Coolant flow(L/sec) | 16.67 |
Fuel | 0#,-10#;-20#;-35# |
Fuel consumption(L/h) | 205.2 |
Fuel consumption(g/kwh) | 209.4 |
Lub. Oil | Kunglun CF-4 |
Oil capacity(L) | 200 |
Oil consumption(g/kwh) | 1.6 |
Oil temp.(°C) | 80~95 |
Lubricating method | Pressure and splash lubrication |
Max exhaust temp.(°C) | 600 |
Intake Air flow(m3/min) | 93 |
Exhaust flow(m3/min) | 208 |
Air cycle flow(m3/min) | 2100 |
Radiator dimension(W*H)(mm) | 1710*2356.5 |
Direction of rotation | Counter-clockwise(facing to flywheel) |
