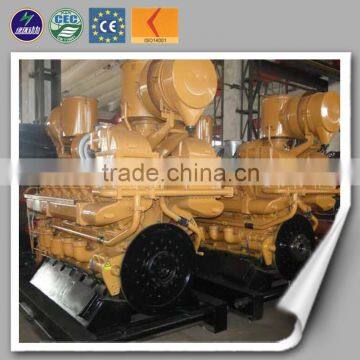

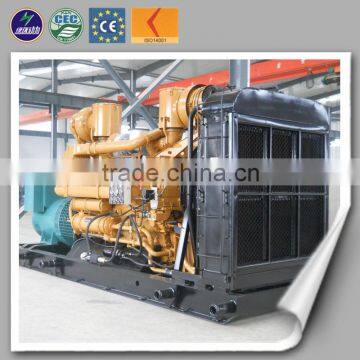

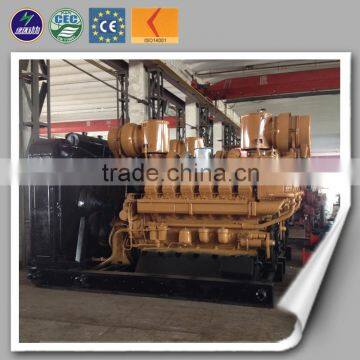

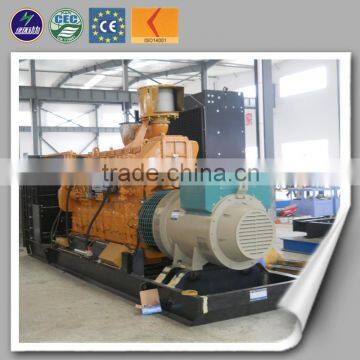

1000kw diesel generator set
This 1000kw diesel genset has the features of accurate voltage regulating, good dynamic performance, less voltage waveform distortion, high efficiency, compact structure, easy to maintain, low speed, reliable and long life operation and cost-effective.
Main technical parameters of 1000kw diesel generator set
Main technical parameters | |
Rated power | 1000kW |
Rated speed | 1500r/min |
Fuel oil consumption | ≤209.4g/kW·h |
Lubricant oil consumption | ≤1.6g/kW·h |
L×B×H(mm)Overall size | 3860×2040×2678 |
Net weight | 8100kg |
Cylinder and Configuration | 12 Cylinders, Vee 60° |
Type | 4-stroke, with turbocharger, intercooler and electronic air/fuel mixer, forced water cooling, direct injection |
Bore | 190mm |
Stroke | 210mm |
Total displacement | 71.45L |
Compression ratio | 14:1 |
Direction of Rotation | Counterclockwise(Facing flywheel) |
Starting method | Air motor, electric motor |
Lubricating method | Pressure and splashing |
Speed regulating mothod | Mechanical speed governor, stable speed drop≤8% |
