Specifications
Manganese shaking table Advantages:1 High efficiency
2 Easy operation
3 Energy saving,High recovery
4 Reliable structur

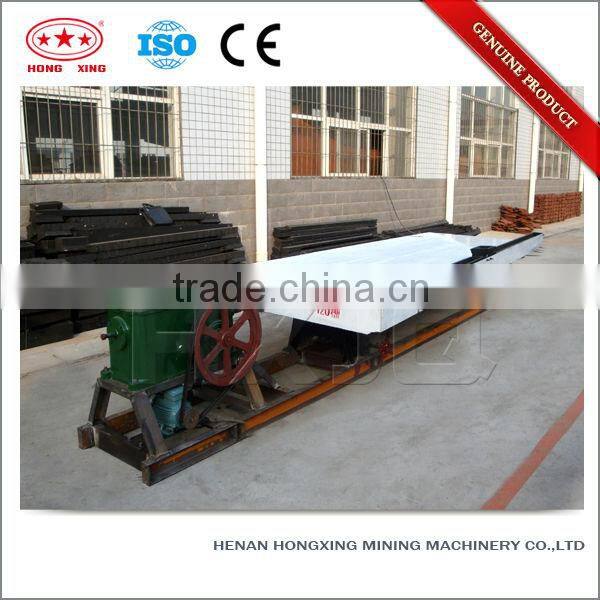

1.Application of Manganese shaking table
1.Hongxing Manganese shaking table is one of the main equipments of gravity concentration. Manganese shaking table is not only widely applied on separating tungsten, the tin, the tantalum niobium and other rare metals and the noble metal ore.
2.The Manganese shaking table is also widely used in separation for Gold, Silver, Tin, Columbium, Tantalum, Titanium, Barium, Tungsten, Iron, Chrome, Manganese, Zircon, Lead, Zinc, Mercury, Copper, Aluminum, etc. The shaker effective recycling granularity scope is 2-0.22 millimeters.
2. Features of Manganese shaking table
High recovery ratio
- High concentration ratio
- Easy installation
- Simple operation
- Deck constructed of fiber glass
- Three different decks to choose
- Long working life
- Adjustable stroke length and speed

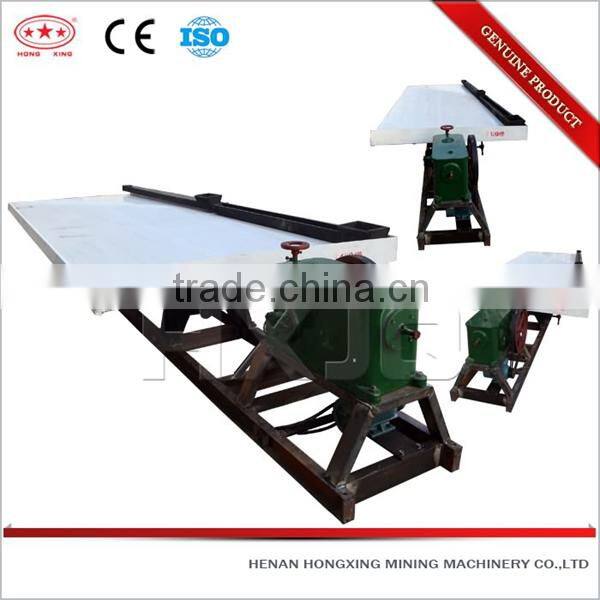

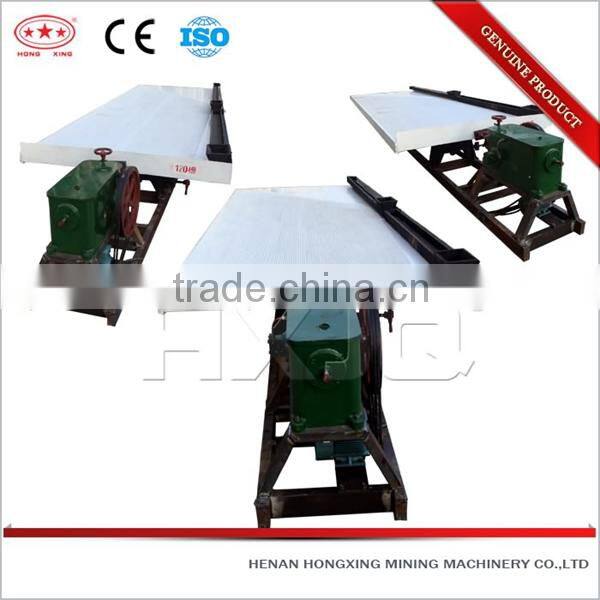

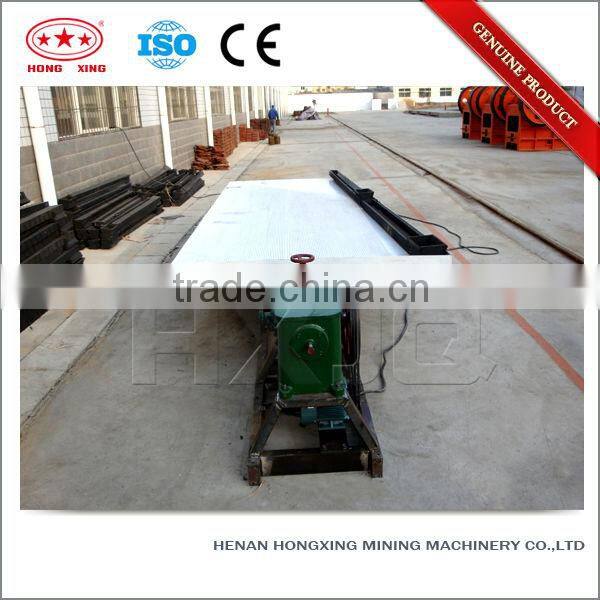

Working Principle of Manganese shaking table
Manganese shaking table (shaking table for gold) is to make separations based on the difference of specific gravity of feed materials, reciprocating asymmetrical movement and the stratification performance of the inclined table surface in the lateral water flow with obvious zone of the minerals with different specific gravities on the table, high quality of concentrates produced, convenient operation and adjustment and other features.
Technical parameters of Manganese shaking table
Name |
Unit |
Grit concentrator table |
Fine sand concentrator table |
Sludge concentrator table |
|
Dimensions |
Length |
MM |
4450 |
4450 |
4450 |
Driving part width |
MM |
1855 |
1855 |
1855 |
|
Concentrate part width |
MM |
1546 |
1546 |
1546 |
|
Max.feeding size |
MM |
2 |
0.5 |
0.15 |
|
Feeding amount |
T/d |
30-60 |
10-20 |
15-25 |
|
Feeding thickness |
% |
25-30 |
20-25 |
15-25 |
|
Journey |
MM |
16-22 |
11-16 |
8-16 |
|
Frequency |
F |
15-48 |
48-53 |
50-57 |
|
Water quantity |
T/d |
80-150 |
30-60 |
10-17 |
|
Horizontal obliquity |
Degree |
2.5-4.5 |
1.5-3.5 |
1-2 |
|
Portrait obliquity |
% |
1.4 |
0.92 |
---- |
|
Table board corner |
Degree |
32-42 |
40 |
42 |
|
Concentrating square |
---- |
7.6 |
7.6 |
7.6 |
|
Table board length ratio |
---- |
2.6 |
2.6 |
2.6 |
|
Motor power |
KW |
1.1 |
1.1 |
1.1 |
|
How to choose the right model of shaking table.
To Choosing the shaking table model according to the Max feeding size, the feeding amount and plant area.
- Max feeding size <2mm, coarse sand deck shaking table
- Max feeding size <0.5mm, fine sand deck shaking table
- Max feeding size <0.1mm, slime deck shaking table
the smaller the feeding size is, the less feeding amount will be.
if the plant area is not enough, we can use double-decked shaking table.
Full service of Hongxing
1.Pre-sale services: enthusiasm
We provide you with the prophase plan, process flow design and manufacturer equipment according to your special demand.
2.Sale services: servant
Send technicians to the jobsite for guiding the installation and adjustment, training operators and finishing the check and accept together with you.
3.After-sale services: faithfulness
To establish long term friendship, we will regularly pay return visit to customers.
Supplying technique, building design, instruction, installation and debugging for free.
4.We provide one-year warranty to make sure your machine runs consistently. We always offering lifelong services and provide spare parts for a long term,and repair main parts under right using for free in two years.

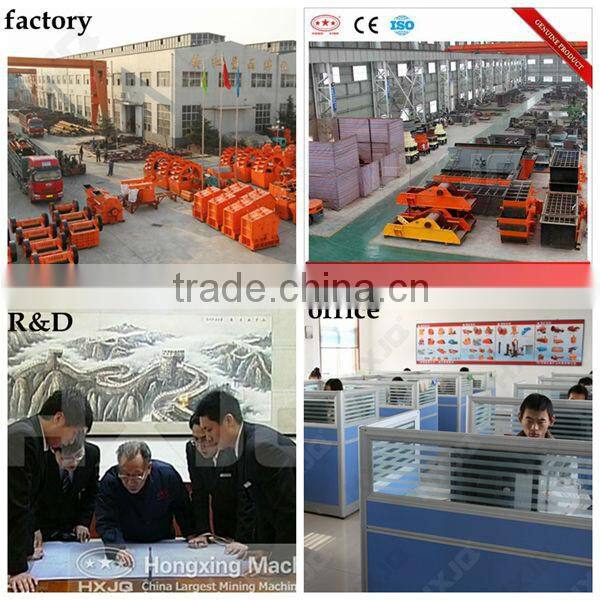

Hongxing corporation show
1.With 3 big production bases (not dealer)
2.With senior engineers control quality
3. Delivery
Ocean freight partners are: APL, COSCO, OOCL, CSCL, MSC, etc. and train shipping is also available.
4. If you are new for this business, we will help you
The questions you are concerning on
How is the quality of your products?
Our products are manufactured strictly according to national and international standard, and we take a test on every machine before delivery.
Guaranteed:
If products’ quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
How about price?
Yes, we are factory and be able to give you the lowest price than market one, and we have a policy that “ for saving time and absolutely honest business attitude,we quote as low as possible for any customer, and discount can be given according to quantity”.
