Used Non Woven Bag Making Machine

FOB Price

USD $10,000 - $50,000 / Set

1 Set(Min.Order)

Supply Ability 20 Set / Sets per Month
Port Ningbo/Shanghai
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Machine Type	Bag Forming Machine
Bag Type	Shopping Bag	Material	Non Woven Bag
Computerized	Yes	Place of Origin	Zhejiang, China
Brand Name	Kings	Model Number	JS-600/700/800
Voltage	220V/380V	Power(W)	10KW
Dimension(LWH)	6850 x 1740 x 2170mm	Weight	2000kg
Certification	CE	Warranty	1 year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Used Non Woven Bag Making Machine

Machine Specification:

This machine applies for non-woven materials. It can make many kinds of bags such as vest bags, loop handle bags, flat bags, box bags and ribbon-through bags for shoes and purse etc.

It is equipped with computer touch screen, step motor and photo electricity to track, accurately and steadily. There are control devices like auto-counting alarming, auto-punching etc., which make the finished products well-sealed and nice-cutting with high speed and efficiency. It is an ideal environmental protection bag making equipment.

Model	JS-600		JS-700		JS-800
Bag width	Vest bags: 200-550mm, Flat/boxbags: 280-800mm		Vest bags:200-650mm, Flat/boxbags: 280-8000mm		Vest bags:200-750mm, Flat/boxbags: 280-800mm
Bag length	Vest bags: 280-800mm, Flat/boxbags: 200-550mm		Vest bags: 280-800mm Flat/ boxbags: 200-650mm,		Vest bags:280-800mm Flat/boxbags:200-750mm,
power	According to clients' requirements.
Air compressor	0.5-0.6Mpa	0.5-0.6Mpa		0.5-0.6Mpa
Total power	10kw	11kw		13kw
Production speed	25—110 pcs/ min.	25—110 pcs/ min.		25—110 pcs/ min.
Overall Dimension (L×W×H)	6.85 x 1.74 x 2.17 (m)	6.85 x 1.84 x 2.17		6.85 x 1.94 x 2.17 (m)

Machines' Advantage:

1	Screen touch	Taiwan Software
2	Step motor	Made-in-china
3	Electrics switch	Zhengtai,China
4	Main motor	Made-in-Shanghai,china
5	Direct motor with speed controller	Made-in-Shanghai,China
6	Pneumatic element	Yadeke, Taiwan
7	Inverter	Euro
8	Cold cutter	best in China
9	Main ultrasonic	Taiwan brand ultrasonic
10	Machine running wheel	Aluminium
11	Solid contact	Japan brand
12	Rubber roller	with high wear resistance
13	Unwinding with photo cell EPC	Made-in-China
14	Main photocell	made-in-china
15	Air shaft	Made-in-china
16	Magnetic tension controller	Made-in-china
17	Triangle part	stainless steel
18	2 pcs of heating blade for main machine
19	1 pc of ultrasonic with blade for vest bags
20	2 pcs of ultrasonic with design for flat bag

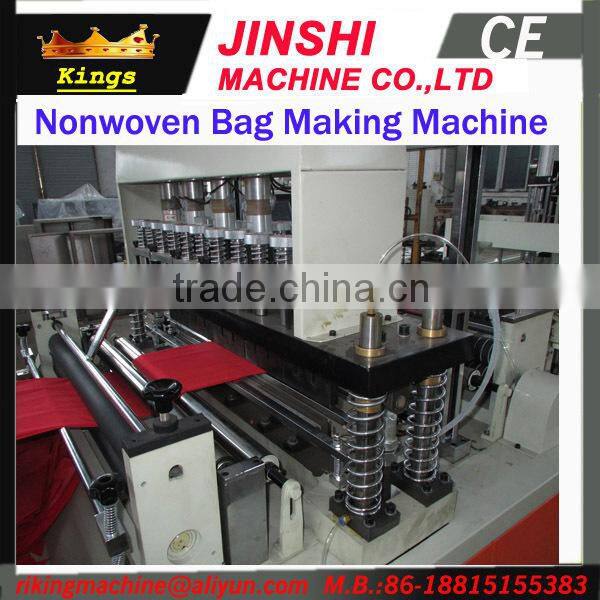

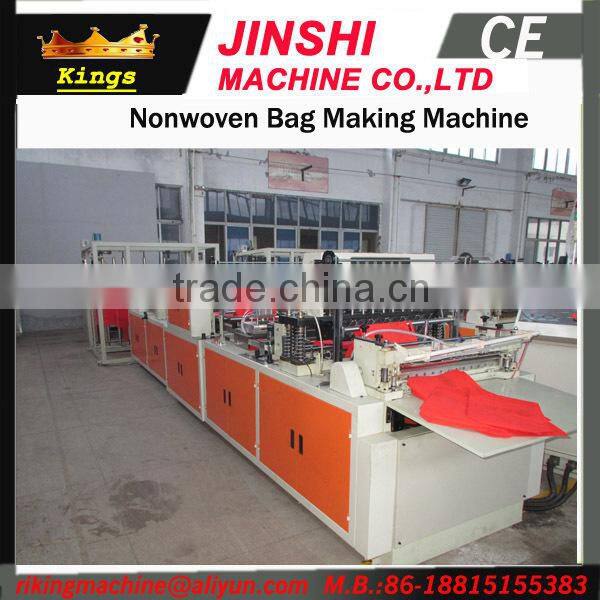

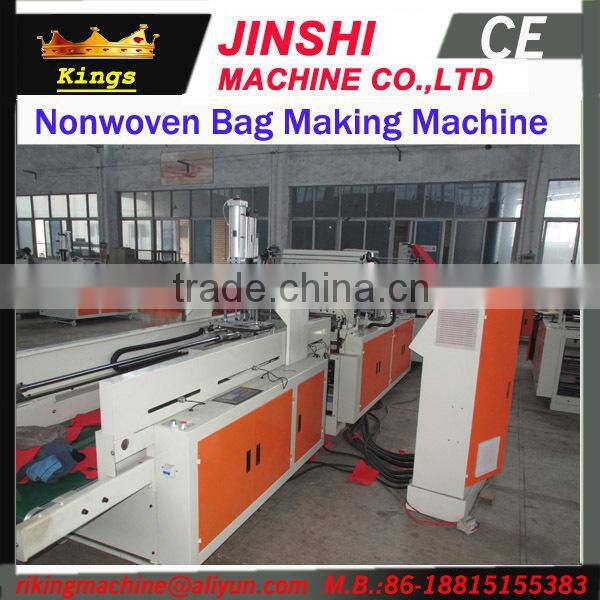

Detailed Images

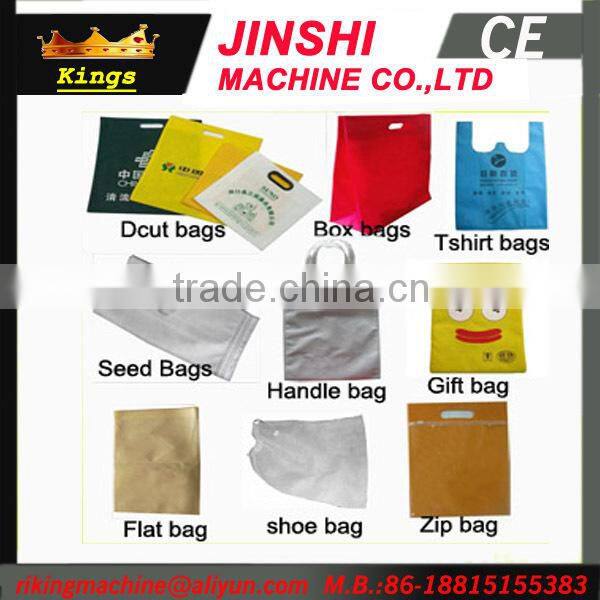

Finished Products

Packaging

Our Services

We provide 24 hours call service and our engineers are available at any time!
