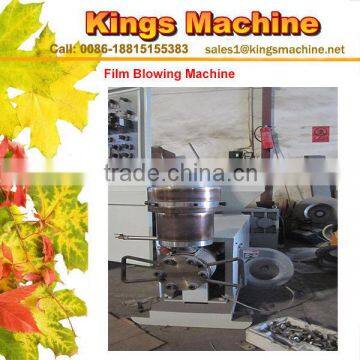

High Quality PE Film Blowing Machine(Kings Brand)

Name: High Quality PE Film Blowing Machine(Kings Brand)
Brand: Kings
Availability: InStock

FOB Price

US$ 5,000 - 50,000 / Set

1 Set(Min. Order)

Port Ningbo
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Application	Film
Plastic Processed	PE	Blow Moulding Type	Extrusion Blow Moulding
Automatic	Yes	Place of Origin	Zhejiang, China
Brand Name	Kings	Model Number	SJ45/FM600,SJ50/FM800,SJ60/FM1000
Voltage	380V	Power(W)	18kw
Dimension(LWH)	4200X1800X3600mm	Weight	2000kg
Certification	CE	Warranty	1 Year
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

High Quality PE Film Blowing Machine (Kings Brand)

Product Description

1- It is used for blowing plastic film like low density polyethylene(LDPE),high density polyethylene(HDPE)and linear low density polyethylene(LLDPE)etc, which are widely used for packing industrial products, garments and food and for covering farmland.

2- The cylinders and the screw are made of high-quality alloy steel with optimum hardness and strong corrosion resistance after precision finishing and nitrogen treatment.

3- The machine is equipped with a platform for making operation easy.

4- The coiling unit adopts torque motor to keep proper tension and make rolling even and roll-changing easy.

Main Technical Variables:

Model	SJ-45/FM600	SJ-55/FM800	SJ-60/FM1000
Screw Diameter	45mm	55mm	60mm
Screw Ratio	L/D30:1	L/D30:1	L/D28:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	7.5kw	11kw	15kw
Max. Extrusion output	35kg/h	50kg/h	65kg/h
Max. Folding Width of Film	600mm	800mm	1000mm
Single-sided Thickness of Film	0.006-0.10mm	0.006-0.10mm	0.006-0.10mm
Total Power	18kw	22kw	28kw
Weight of machine	2000kg	2200kg	2800kg
Overall Dimensions(LWH)	4200X1800X3600mm	4400X2000X4000mm	4600X2300X4200mm

Model	SJ-65/FM1200	SJ-80/FM1500	SJ-100/FM2000
Screw Diameter	65mm	80mm	100mm
Screw Ratio	L/D30:1	L/D30:1	L/D30:1
Screw Speed	10-100r/min	10-100r/min	10-100r/min
Power of Main Motor	18.5kw	30kw	55kw
Max. Extrusion output	76kg/h	86kg/h	160kg/h
Max. Folding Width of Film	1200mm	1500mm	2000mm
Single-sided Thickness of Film	0.006-0.10mm	0.01-0.10mm	0.01-0.10mm
Total Power	32kw	52kw	80kw
Weight of machine	3300kg	4300kg	5800kg
Overall Dimensions(LWH)	4800X2500X4500mm	5200X2800X5000mm	5800X3300X6000mm

Accessories

Main Components of HDPE-LDPE Dual-Purpose Film Blowing Machine
Model	SJ-45/FM600
Suitable products	LLDPE,LDPE,HDPE
Max.film width	600mm
Screw Diameter	45mm
Mould Head	2 pcs (60 &100)
Gap between Die exit	1mm
Electric Heating Power	6kw
Main Motor	11kw (Huifeng brand, best in China)
Rewinding motor	Torque motor (10Neton)
Traction motor	Inverter 1.5kw (Huifeng brand)
Cooling fan for main machine	1.1 kw
Cooling fan for material tank	0.25kw
The diameter of Air Ring	620mm
Rewinding roller's width	650mm
Max.Output	35kg/h
Heating circle	Cast Aluminium
Air compressor	1.1kw
Contactor	Zhengtai brand
Screw	38CrMoALA
Gearbox	Made-in-china
Controller for Toque motor	Made-in-china
Machine Size	420018003600mm
Machine Weight	2000kg

Detailed Images

Packaging

After-Sales Service

1- We provide 24 hours call service-- 0086-18815155383

2- We can provide you skillfull knowlege on the machines.

3- Our engineers are available to install and test your machines at any time if requested by the customers.

4- All machines will be examined and tested before shipment.

5- All of our machines are with CE certification.

6- We have already exported to Vietnam, India,Indonesia,Kenya,Egypt,Russia,Turkey etc.

7- Guarantee: 1 year, long life service.
