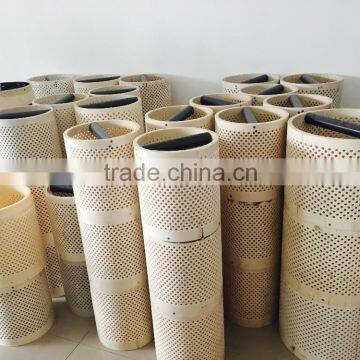

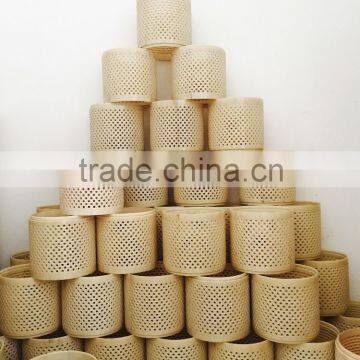

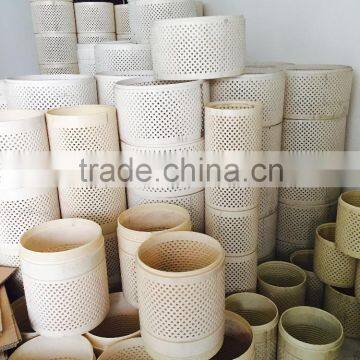

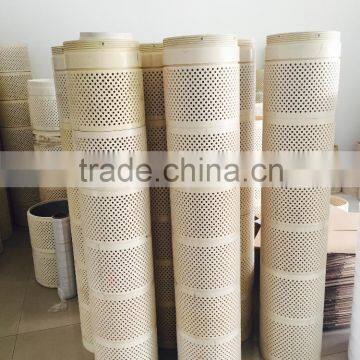

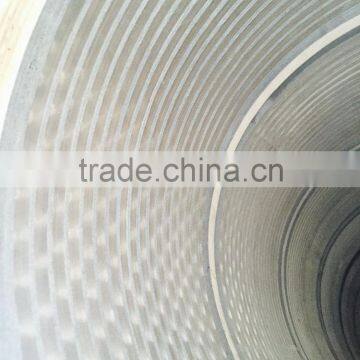

New type Filter accessories 50 micron filter mesh for automatic self cleaning filter
Designed for the automatic self-cleaning screen filters
Special Characters:
* The sturdy and durable 316L stainless steel screen
* Patented melting technology, extraordinary smooth inner surface and without welding
* PVC skeleton, light weight, easy maintenance
* Modularly designed, the connection by a square threaded method, stability
* Filtering from the inside to out, suit for sucking and brush cleaning
*Designed for the Filtrascale’s self-cleaning screen filters and also suit for the Israeli self-cleaning screen filters
1. Upper fine screen 2. Central fine screen 3. Lower fine screen
4. Screen seal 5. Screen seal clip 6. Base of the suction sewage shaft
Technical Data – Metric Units
Model |
Outer Diameter mm |
Skeleton material |
Screen material |
Connection method |
Color |
S225 |
OD 225 |
PVC-U |
316L |
Square thread |
White |
S280 |
OD 280 |
PVC-U |
316L |
Square thread |
White |
S318 |
OD 318 |
PVC-U |
316L |
Square thread |
White |
S400 |
OD 400 |
PVC-U |
316L |
Square thread |
White |
Filtration accuracy:
The degree of 100um~3000um is optional.
The coarse screen is optional.
For the further information, please contact Filtrascale office.
Water Filter Parts Stainless Steel Filter Screen with UPVC rack mounting
Features:
·316L stainless steel screen, sturdy and durable.
·Patent hot pressing composite technology, the inner surface is super flat,without welds.
·PVC-U support, light weight and easy to maintain.
·Modular design, using square screw thread connection, good stability.
·Inside-out, suitable for sucking and brush cleaning method.
1, fine screen upper 2, fine screen middle part 3, fine screen bottom
4, seal ring 5, handle 6, pollution shaft soleplate
Fine Screen & Coarse Screen:
·316L stainless steel screen, sturdy and durable.
·Patent hot pressing composite technology, the inner surface is super flat,without welds.
·PVC-U support, light weight and easy to maintain.
·Modular design, using square screw thread connection, good stability.
·Inside-out, suitable for sucking and brush cleaning method.
Application:
Industrial: the circulating cooling water of metallurgy, electricity, chemical, spinning,
papermaking, automobile, sugaring , industry etc.
Municipal: domestic water, water reuse, sea water desalination, wastewater treatment etc.
Irrigational: agricultural irrigation, green landscape, golf course etc.
we are the one of leading filtration manufacture in China, we hope to give the best service for you, We consider every business serious.We consider every customer as our VIP. we are looking forward to cooperating with you.
One of our work area. our worker have more than 10years experiences, They are all happy every day, because thier home isn't far from the factory.
We are the high-tech enterprises with more than 50 items of China national technology patent and 2 patents of invention in water treatment; we get the ISO9001,ISO14001,OHSAS
According to your requirements we can transport the products to our customers by air, sea , land transportation and ect.
