Packaging & Delivery
Packaging Details:
Model |
Quantity |
|
20’ Container |
40’Container |
|
CPCD15FR |
5 pcs |
10 pcs |
CPCD20FR/ CPCD25FR |
4 pcs |
8 pcs |
CPCD30FR/ CPCD35FR |
2 pcs |
6 pcs |
CPCD40FR |
2 pcs |
5 pcs |
CPCD50F |
1 pc (dismantled) |
3 pcs (40’ HQ) |
CPCD70F |
1 pc (dismantled) |
3 pcs (40’ HQ) |
CPCD100F |
1 pc (dismantled) |
2 pcs (dismantled) |
CPCD15C |
5 pcs |
11 pcs |
CPCD20C/ CPCD25C |
4 pcs |
8 pcs |
CPCD30C/ CPCD35C |
2 pcs |
5 pcs |
Delivery Detail: forklift will be sent within 20 working days after recieving deposit or original L/C.
Factory details and specifications:

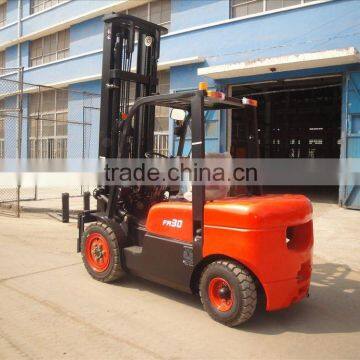

Parameters and photo of details
MODEL |
CPCD30FR |
|
Load capacity |
3000 kg |
|
Load center |
500 mm |
|
Power type |
Diesel |
|
Max. lifting speeds(with load) |
400 mm/s |
|
Max. driving speeds(with/without load) |
18/20 km/h |
|
Max towering (with load) |
15.5/10.5 kn |
|
Grade ability(with load) |
15/20 % |
|
Lifting height |
3000 mm |
|
Free lift |
80 mm |
|
Tilting angles(forward-backward) |
6°/12° |
|
Min. turning radius |
2500 mm |
|
Min. Right angle aisle width |
2110 mm |
|
Min. under-clearance |
135 mm |
|
Dimensions |
Overall length(including fork) |
3800 mm |
Overall width |
1230 mm |
|
Overall height(mast lowered) |
2110 mm |
|
Overall height(mast extended) |
4270 mm |
|
Overall height to overhead guard |
2110 mm |
|
Fork overhang |
465 mm |
|
Wheel base |
1700 mm |
|
Tread |
Front tread |
1000 mm |
Rear tread |
970 mm |
|
Tire |
Front tire |
28×9-15 |
Rear tire |
6.50-10 |
|
Total weight |
4320 kg |
|
Fork width |
125 mm |
|
Fork thickness |
45 mm |
|
Backrest height |
1225 mm |
|
Fork length |
1220 mm |
|
Engine |
Engine model |
490 |
Rated power |
39 kw |
|
Rotate speed at rated power |
2650 rpm |
|
Max. Torque |
157 nm |
|
Rotate speed at max. Torque |
1980 rpm |
|
Type of power shift |
Tor-con |
|
ATTACHMENTS(photos):
Company profile:
Jinan Fuman International Trade Co., Ltd has cooperation with Chinese top factories in area of construction machines and heavy duty trucks. We export mainly wheel loader, forklift, farm machinery, truck crane, excavator, road roller, motor grader, bulldozer, mining dump truck, tipper and etc, Our products have been exported to more than 70 countries and regions with high evaluation.
High quality and reasonable price are our promis to our clients.
Our service:
1.Reply your inquiry in 24 hours.
2.Experienced staffs answer all your questions in professional.
3.Provide customized design service.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.
6.Warranty period is one year or 1500 working hours against Bill of Lading.
