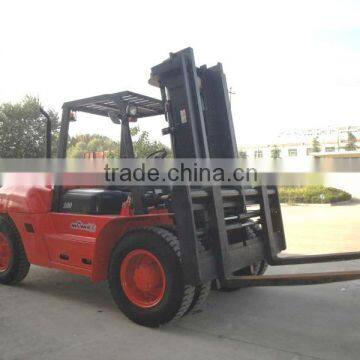

China WECAN Cheap Diesel Forklift CPCD100

FOB Price

Negotiable / Set

1 Set(Min. Order)

Port Any port in China
Payment TermsT/T Credit Card

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Place of Origin	Shandong, China
Brand Name	WECAN	Model Number	CPCD100
Type	Powered Pallet Truck	Power Souce	Diesel Engine
Rated Loading Capacity	10000KG	Max. Lifting Height	4297mm
Min. Lifting Height	2850mm	Fork Length	1220mm
Fork Width	175mm	Overall Dimensions	458022752850mm
Certification	CE,ISO,CCC	After-sales Service Provided	Engineers available to service machinery overseas

Product Description

Packaging & Delivery

Packaging Details:

Model	Quantity
Model	20’ Container	40’Container
CPCD15FR	5 pcs	10 pcs
CPCD20FR/ CPCD25FR	4 pcs	8 pcs
CPCD30FR/ CPCD35FR	2 pcs	6 pcs
CPCD40FR	2 pcs	5 pcs
CPCD50F	1 pc (dismantled)	3 pcs (40’ HQ)
CPCD70F	1 pc (dismantled)	3 pcs (40’ HQ)
CPCD100F	1 pc (dismantled)	2 pcs (dismantled)
CPCD15C	5 pcs	11 pcs
CPCD20C/ CPCD25C	4 pcs	8 pcs
CPCD30C/ CPCD35C	2 pcs	5 pcs

Delivery Detail: forklift will be sent within 20 working days after recieving deposit or original L/C.

Factory details and specifications:

Parameters and photo of details

MODEL		CPCD100
Load capacity		10000 kg
Load center		600 mm
Power type		Diesel
Max. lifting speeds(with load)		310 mm/s
Max. driving speeds(with/without load)		16/22km/h
Max towering (with load)		57 kn
Grade ability(with load)		19/20%
Lifting height		3000 mm
Free lift		195 mm
Tilting angles(forward -backward)		6°/12°
Min. turning radius		3900 mm
Min. Right angle aisle width		3540 mm
Min. under-clearance		250 mm
Dimensions	Overall length(including fork)	5480 mm
	Overall width	2275 mm
	Overall height(mast lowered)	2850 mm
	Overall height(mast extended)	4297 mm
Overall height to overhead guard		2585 mm
Fork overhang		718 mm
Wheel base		2500 mm
Tread	Front tread	1600 mm
	Rear tread	1700 mm
Tire	Front tire	9.00-20-14
	Rear tire	9.00-20-14
Total weight		12510 kg
Fork width		175 mm
Fork thickness		80 mm
Backrest height		1015 mm
Fork length		1220 mm
Engine	Engine model	Chaochai6102BG
	Rated power	80.9 kw
	Rotate speed at rated power	2500 rpm
	Max. Torque	353 nm
	Rotate speed at max. Torque	1650 rpm
Battery		2-12V/80Ah
Type of power shift		Tor-con

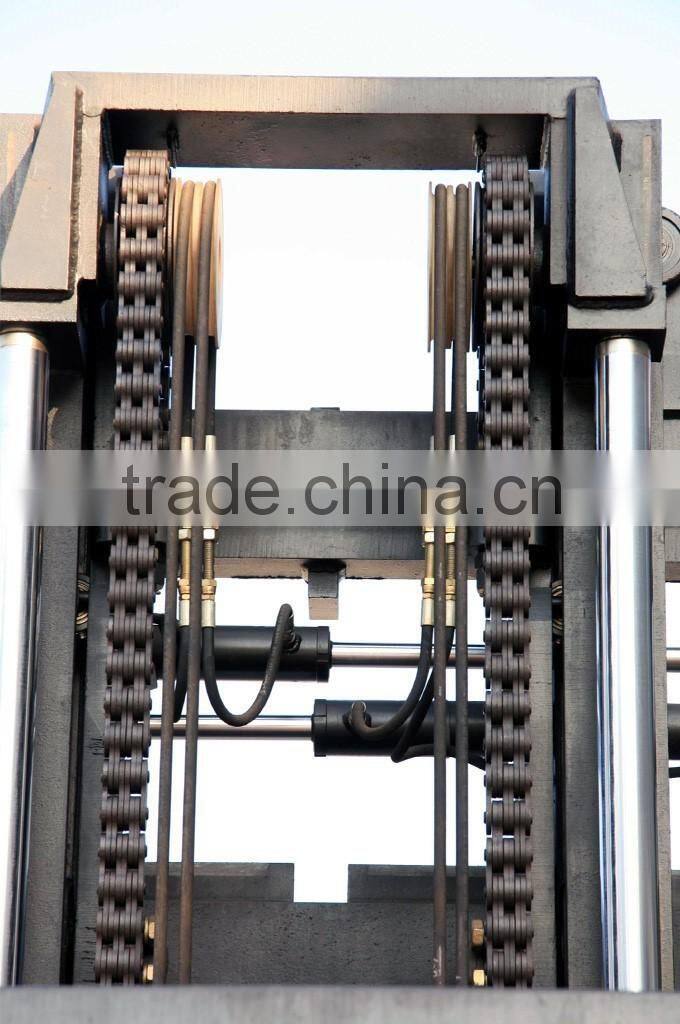

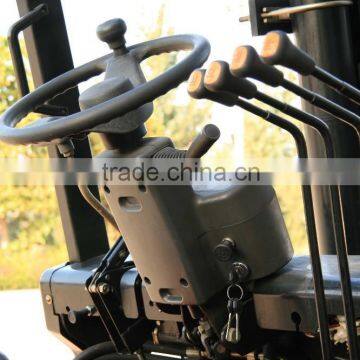

ATTACHMENTS(photos):

Company profile:

Jinan Fuman International Trade Co., Ltd has cooperation with Chinese top factories in area of construction machines and heavy duty trucks. We export mainly wheel loader, forklift, farm machinery, truck crane, excavator, road roller, motor grader, bulldozer, mining dump truck, tipper and etc, Our products have been exported to more than 70 countries and regions with high evaluation.

High quality and reasonable price are our promis to our clients.

Our service:

1.Reply your inquiry in 24 hours.
2.Experienced staffs answer all your questions in professional.
3.Provide customized design service.
4.Exclusive and unique solution can be provided to our customer by well-trained and professional engineers and staffs.
5.Special discount and protection of sales area provided to your distributor.

6.Warranty period is one year or 1500 working hours against Bill of Lading.
