Compression Fittings
Fittings for Water & Gas Conduits
Salient Features:
· All exposed parts to ensure long life and resistance against weather.
· All component are bare the pressure Up To 10kg / Cm2.
· Special self-alignment for pipes ensures smooth & trouble free fitting of the parts.
· Suitable for Power cable Conduits use, Drip & Sprinkler Irrigation, Cooling & Chilled Water, Industry, Effluent Disposal Plants, Vacuum Lines and Electrical PLCB Duct Line etc.

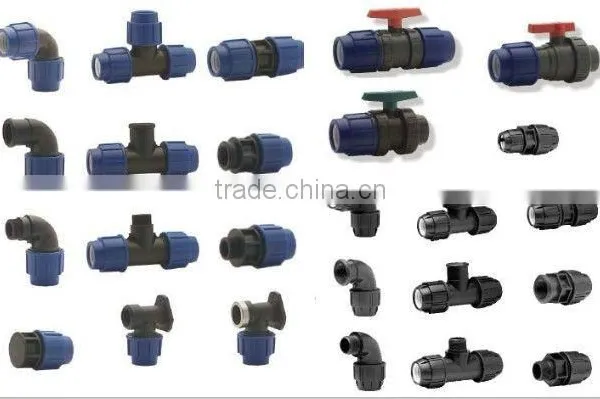

Products Range: Suitable for ø20mm to ø110mm Engineering plastics Pipes.
INSTALLATION INSTRUCTIONS
Cut the pipe square, remove burrs. Undo the nut to the last thread. Leave the nut on the fitting while inserting the pipe. Lubrication and chamfering of the pipe end will ease insertion of the pipe.
Twist the pipe into the fitting past the Blue seal to the pipe stop. Tighten the nut firmly.
The Nut should be screwed tightly, there is no need for the nut to actual- ly meet the body shoulder.
