Home > Products > Square Duct Forming Machine > Super Auto Duct Line 5; duct machine; duct forming machine
Super Auto Duct Line 5; duct machine; duct forming machine
- 20 Set / Sets per Month
- Tianjin port
- CNC router for stone processing engraving machine
- Glass polishing machine JMB95A
- Aluminum Profile Bending Machine/Arc Bending Machine for Aluminum
- Automatic aluminum window corner connector cutting machine
- aluminum door and window frame cutting machine aluminum windows and doors machine
- Upvc Window Door Machine Four Head Welding Machine for PVC welding Window Machine
Product Details
Condition: | New | Type: | Pipe Production Line | Pipe Material: | Other, Galvanized steel |
Application: | Other, HVAC industry | Production Capacity: | 15m/min | Place of Origin: | Tianjin, China |
Brand Name: | COORIG | Model Number: | ADL-5S-1500 | Voltage: | 380V 3PH 50HZ |
Power(W): | 39KW | Dimension(L*W*H): | 24000x4000x1500 | Weight: | 12500KGS |
Certification: | ISO9001 | Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

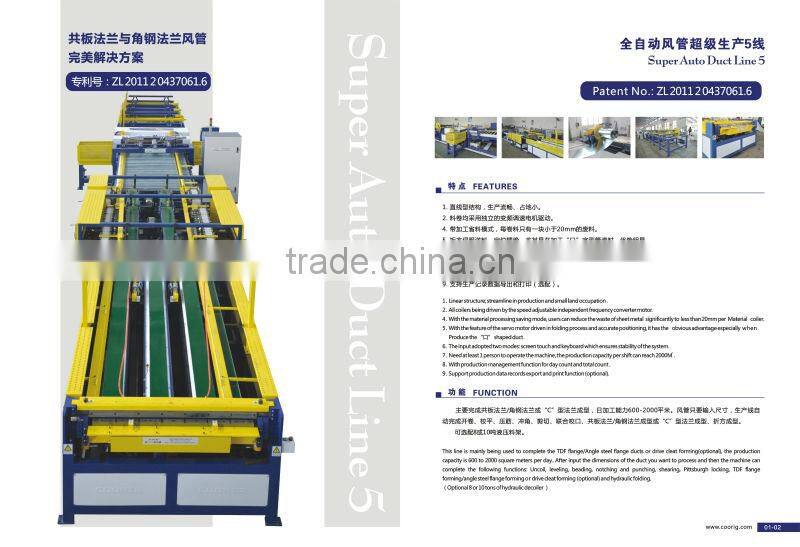

Main Features:
* Linear structure reduces sheets transferring time and improve production efficiency.
* The material frame is controlled by the speed adjustable converter motor
* 10 Rollers for leveling and grooving which ensure the flatness of sheet metal for various thickness
* with material processing saving mode, users can reduce the waste of sheet metal significantly to less than 20mm per material coiler.
* with features of servo motor driven in folding process and accurate positioning, it has the obvious advantage especially when produce the square shaped duct.
* The input adopt two modes: screen tough and keyboard input which ensure stability of the system.
* require only one person to operate the machine, two persons can take away the ducts.
* The speed of each part can be adjusted as needed.
* A processing counting function for statistics and management with day count and total count.
* support print function for production management.
Functions:
This line is mainly for producing square ducts with TDF flange/angle steel flange, the processing capacity is 1000-2000square meters per day. After input the dimensions of the ducts you want to process, then the machine can complete the following functions: uncoiling, leveling, beading, notching and punching, shearing, pittsburgh locking, TDF flange forming/angle steel flange forming and hydraulic folding.
Optional material auto stacking system

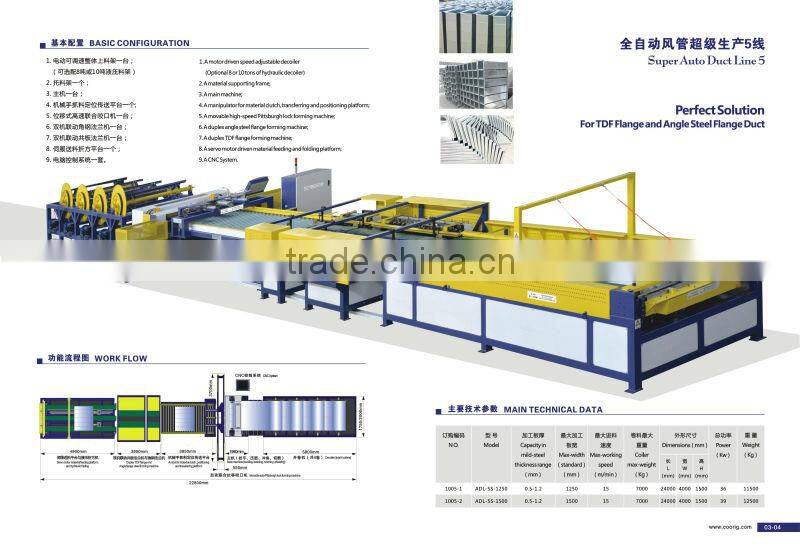

Basic configurations:

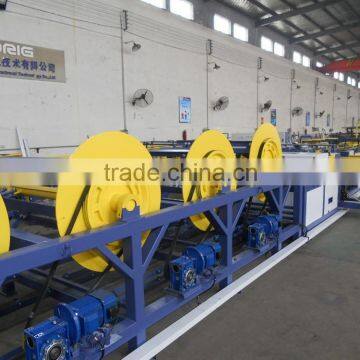

* A motor-driven material feeding frame(4 coils; the max loading per coiler is 7tons)
* Optional 8tons or 10 tons of hydraulic material frame
* A material supporting frame
* A main machine
* A manipulator for material clutch, transferring and positioning platform.
* A movable high-speed Pittsburgh lock forming machine
* A duplex angle steel flange forming machine
* A duplex TDF flange forming machine
* A servo-motor driven material feeding platform
* A TDF Hydraulic folding machine
* A CNC system and a set of production software

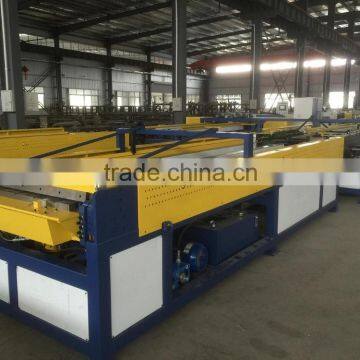

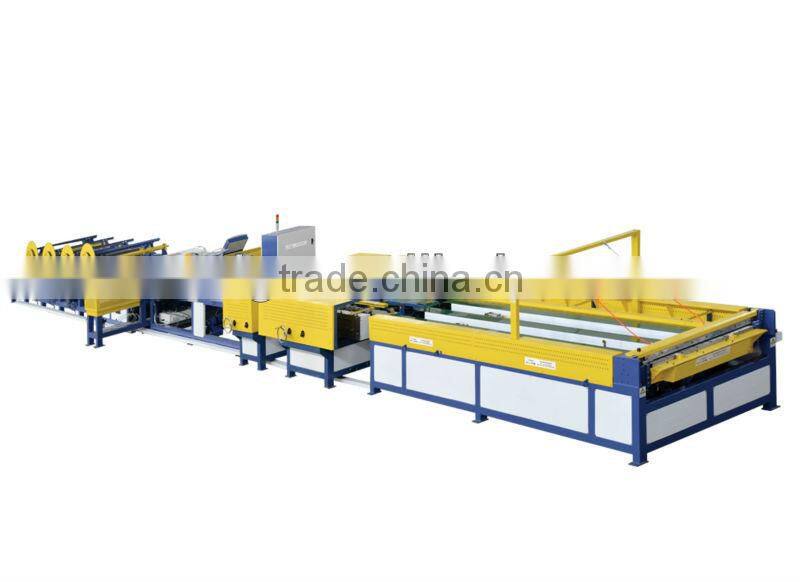

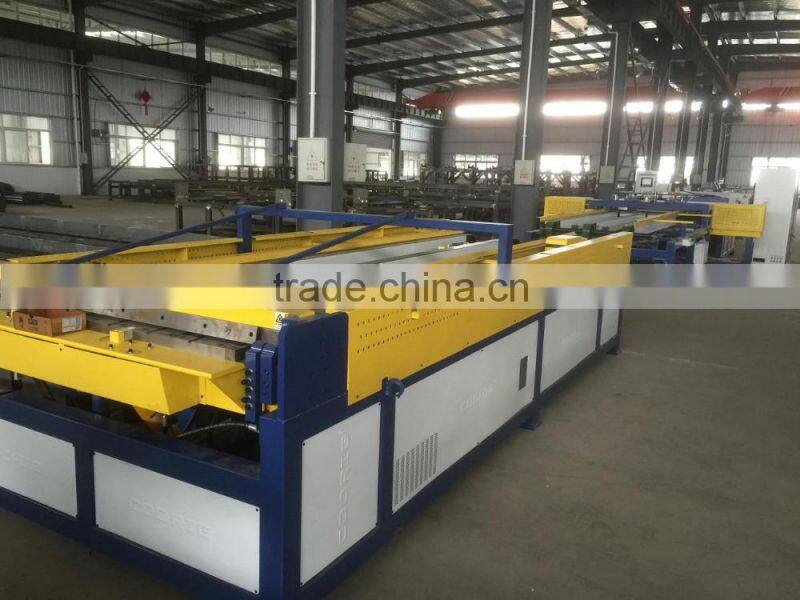

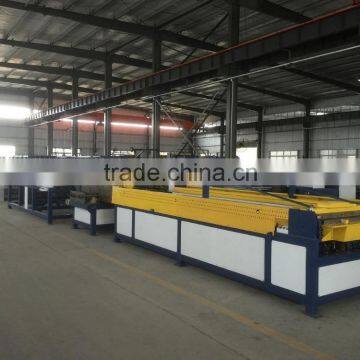

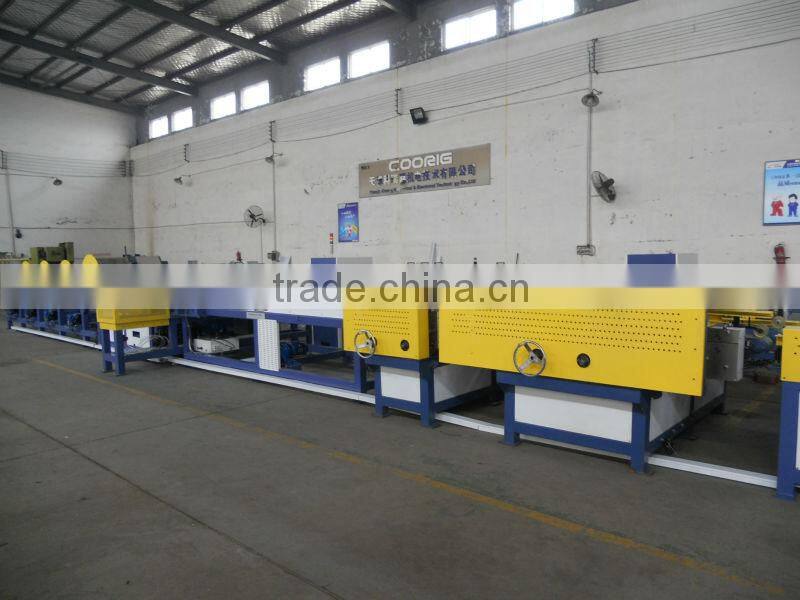

Appearance of the machine:
Technical data:
Packaging & Shipping
Packaging detail: 40ft Container
Delivery term: 30 Days after confirmation of P/I and receive 30% deposit.
Our Services
After sales service and maintenance
The equipment after technical service , the installing , operation , maintenance we supply good technical consulting service , user can through telephone or Web ( QQ ,MSN .email ,remote assistance ,and other way ) to communicate with our technical department . Supplier ensure give the feedback in 24 hours after received the question . If the telephone or the remote assistance can't solve the problem , supplier will arrange our engineer to come to user scene for equipment maintenance.

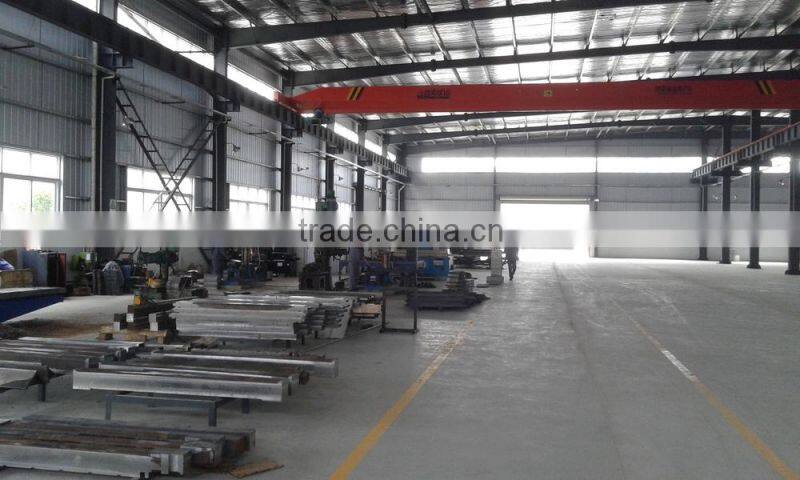

Company Information

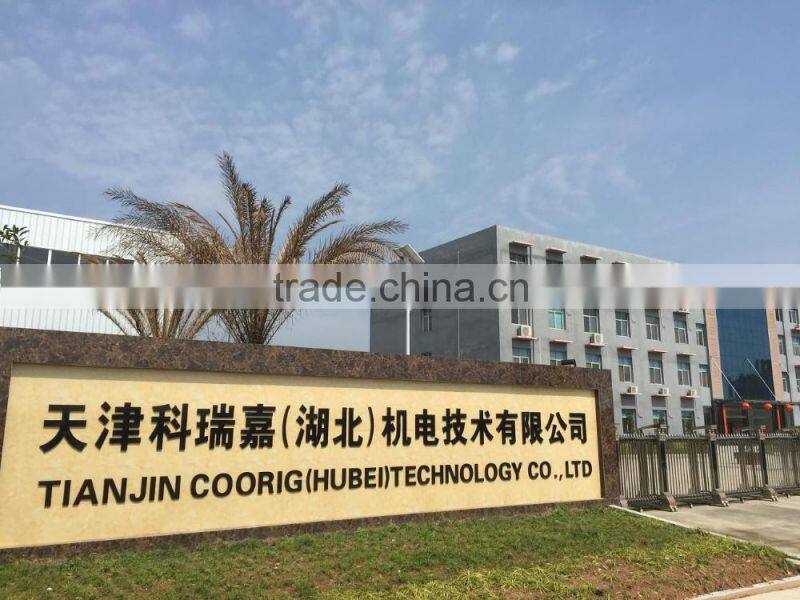

Tianjin COORIG Technology Co., Ltd. was established in 2004 which is a professional manufacturer for HVAC duct processing equipment and sheet metal forming equipment, our company has passed the ISO9000 certification and BV certification, develop a stable, efficient and automated product is our responsibility.
COORIG uphold the “automation”, “fast and efficient service” as the core concept, always insist on technological innovation, independent research and development of new products to meet the diverse needs of customers, we have obtained the patents for national utility models. The company’s core products are auto duct line series and CNC plasma cutting machine series. Our products not only has a large market share in our domestic market, but also exported to Russia, India, Brazil, Australia, the Middle East, Southeast Asia, South America etc in 24 countries and regions.
Services create value, Technology leading the trend, Professional achieved the future, select COORIG is your vision!
CERTIFICATE:
