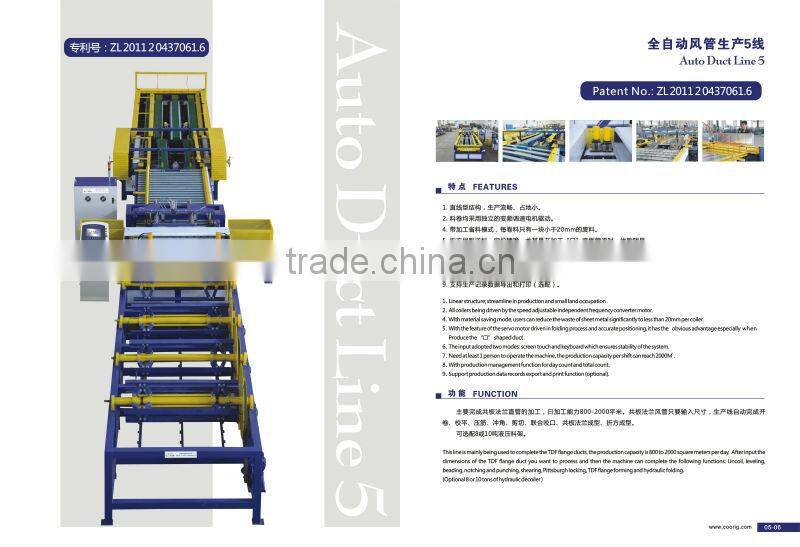

Main Features
* Linear structure reduces sheets transferring time and improve production efficiency.
* The material frame is controlled by the speed adjustable converter motor
* 10 Rollers for leveling and grooving which ensure the flatness of sheet metal for various thickness
* with material processing saving mode, users can reduce the waste of sheet metal significantly to less than 20mm per material coiler.
* with features of servo motor driven in folding process and accurate positioning, it has the obvious advantage especially when produce the square shaped duct.
* The input adopt two modes: screen tough and keyboard input which ensure stability of the system.
* require only one person to operate the machine, two persons can take away the ducts.
* The speed of each part can be adjusted as needed.
* A processing counting function for statistics and management with day count and total count.
* support print function for production management.
Function
This line is mainly for producing the square ducts with TDF flange, the processing capacity is more than 1000 square meters per day. after input the dimensions of the TDF flange ducts you want to process, then the machine can complete the following functions: uncoiling, leveling, beading, notching and punching, shearing, Pittsburgh locking, TDF flange forming and Hydraulic folding.
Optional material auto selecting system.

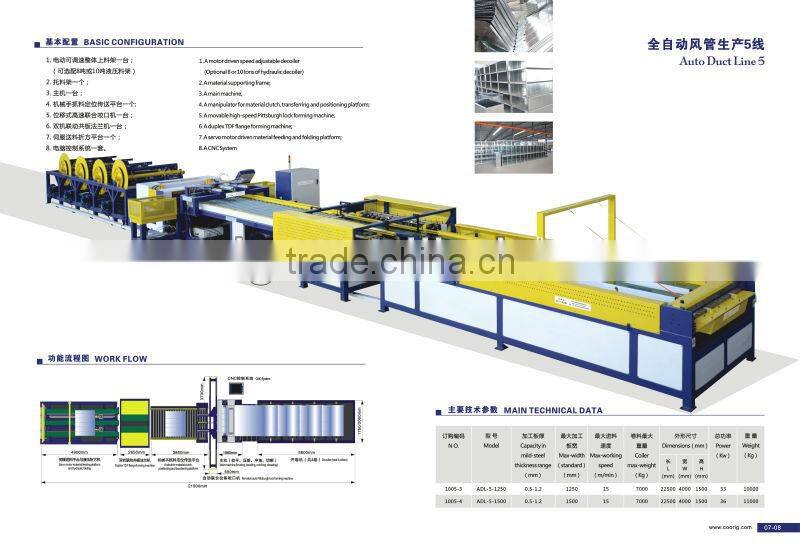

Basic Configurations
* A motor-driven material feeding frame(4 coils; the max loading per coiler is 7tons)
* Optional 8tons or 10 tons of hydraulic material frame
* A material supporting frame
* A main machine
* A manipulator for material clutch, transferring and positioning platform.
* A movable high-speed Pittsburgh lock forming machine
* A Duplex TDF flange forming machine
* A servo-motor driven material feeding platform
* A TDF Hydraulic folding machine
* A CNC system and a set of production software

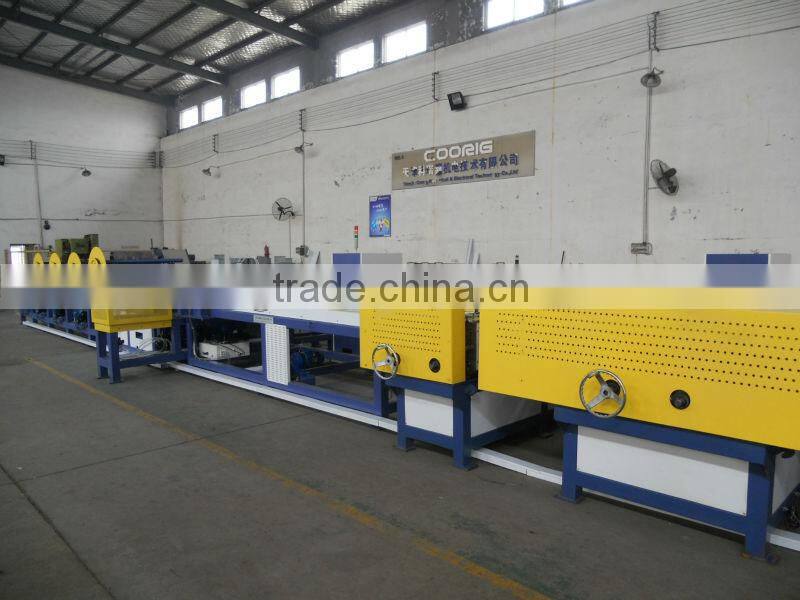

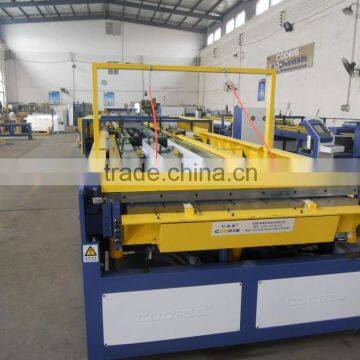

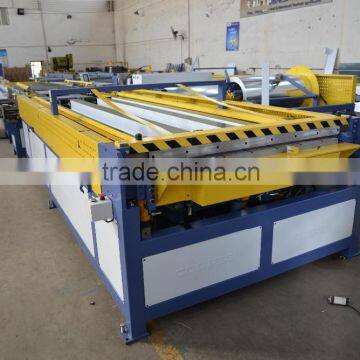

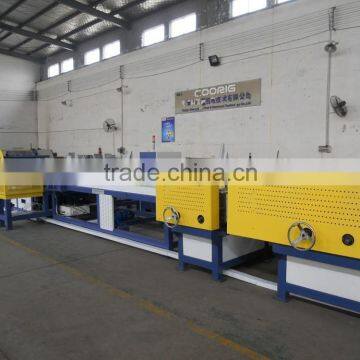

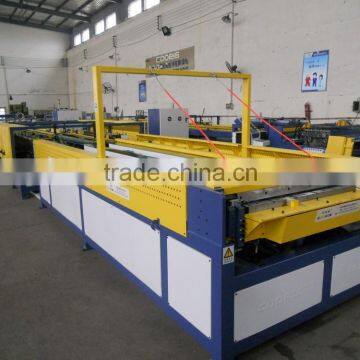

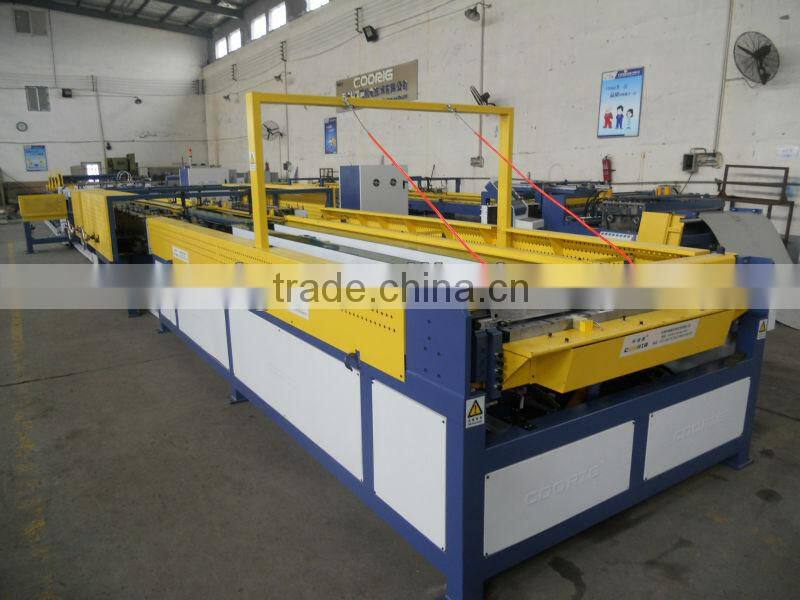

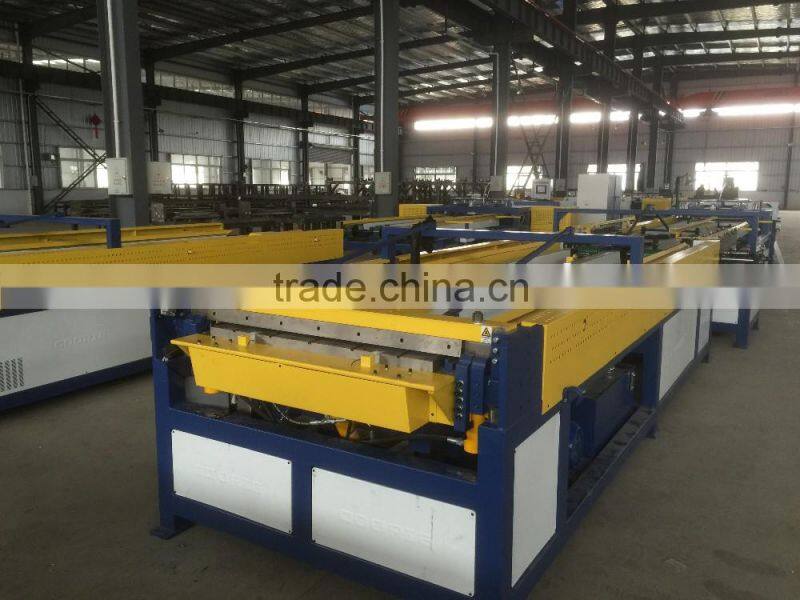

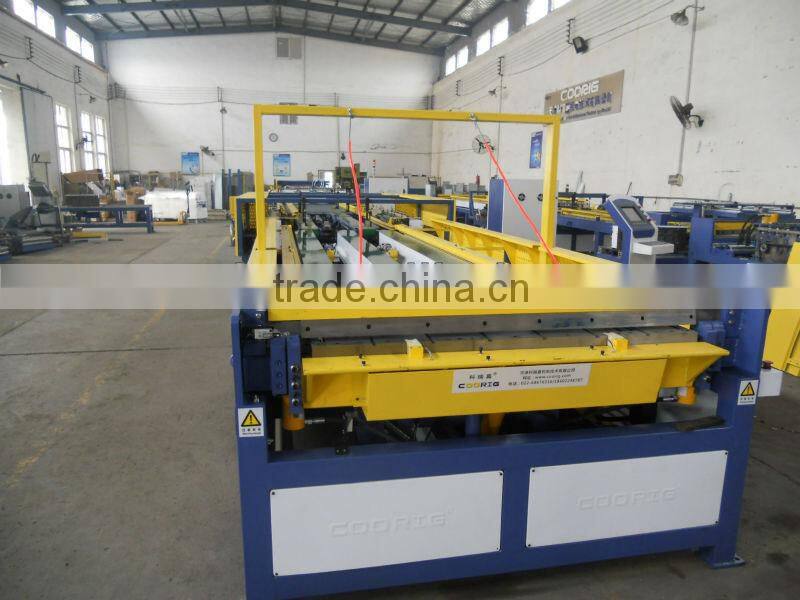

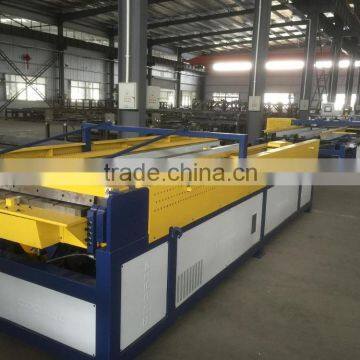

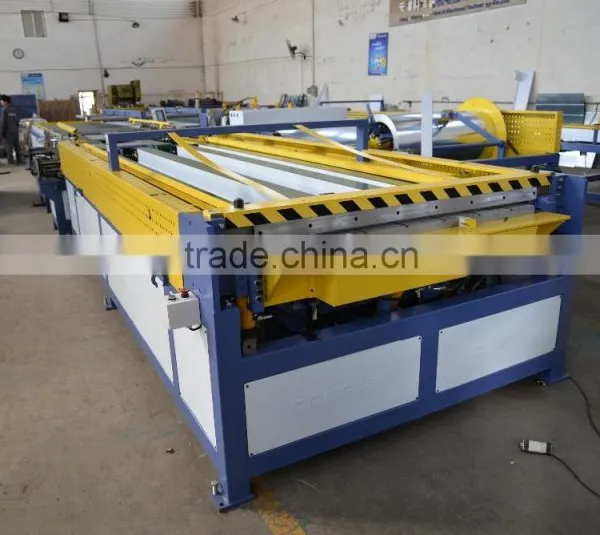

Appearance of this machine:

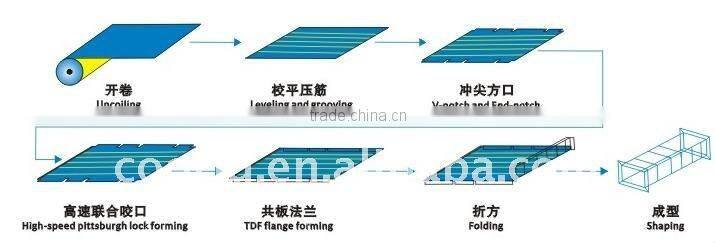

Work Flow:
Main technical data
CERTIFICATE
Note:
Most of our customers are proud of using our production line, since we not only bring
machines of good quality, reasonable price and excellent after-sales service to them,
but also they can realize the real COORIG value! Welcome you to visiting our machines
on-site.
Welcome you choosing COORIG and growing with us!
Purchasing Auto duct line 2 firstly
Upgrading To Super Auto Duct Line 2
Upgrading To Auto Duct Line 4
Production Line Upgrading
Our Services
After service and maintenance
The equipment after technical service , the installing , operation , maintenance we supply good technical consulting service , user can through telephone or Web ( QQ ,MSN .email ,remote assistance ,and other way ) to communicate with our technical department . Supplier ensure give the feedback in 24 hours after received the question . If the telephone or the remote assistance can't solve the problem , supplier will arrange our engineer to come to user scene for equipment maintenance.
Company Information
Tianjin COORIG Technology Co., Ltd. was established in 2004 which is a professional manufacturer for HVAC duct processing equipments and sheet metal forming equipments, our company has passed the ISO9000 certification and BV certification, develop a stable, efficient and automated product is our responsibility.
COORIG uphold the “automation”, “fast and efficient service” as the core concept, always insist on technological innovation, independent research and development of new products to meet the diverse needs of customers, we have obtained the patents for national utility models. The company’s core products are auto duct line series and CNC plasma cutting machine series. Our products not only has a large market share in our domestic market, but also exported to Russia, India, Brazil, Australia, the Middle East, Southeast Asia, South America etc in 24 countries and regions.
Services create value, Technology leading the trend, Professional achieved the future, select COORIG is your vision!
