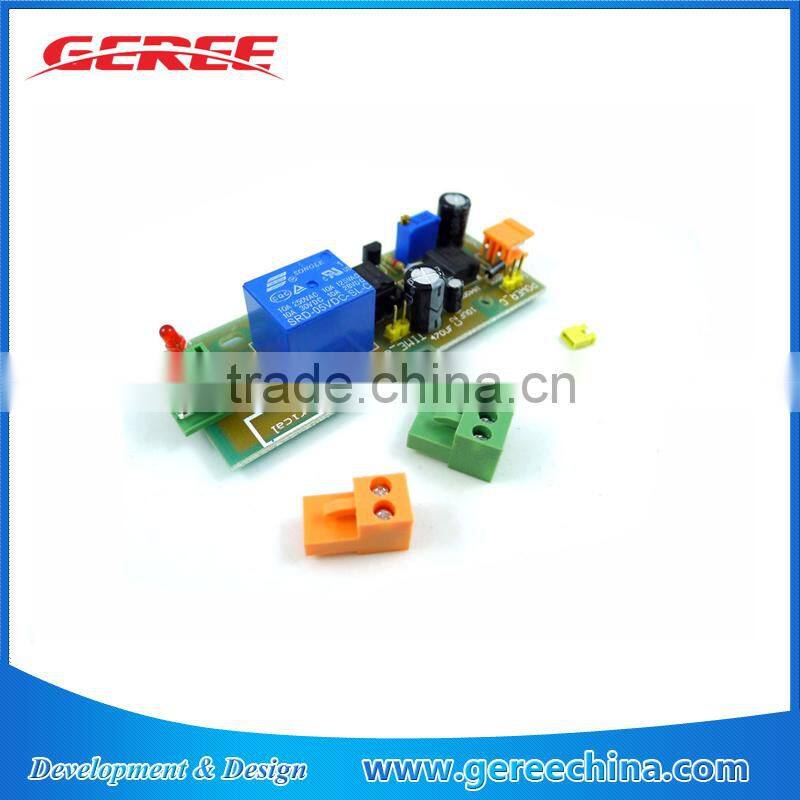

Timer Relay Switch 1-300 second 5-12v DC input TIME OVER RESET Delay

• when the preset time is over , the switch RESET
• Time over RESET
• Main chip: NE555
• Board size:82*23mm
• Input voltage: 5-12v DC
• Adjustable time: 1-300 second
• Control voltage: 250vac/10A or 30vdc/10A

Specifications:

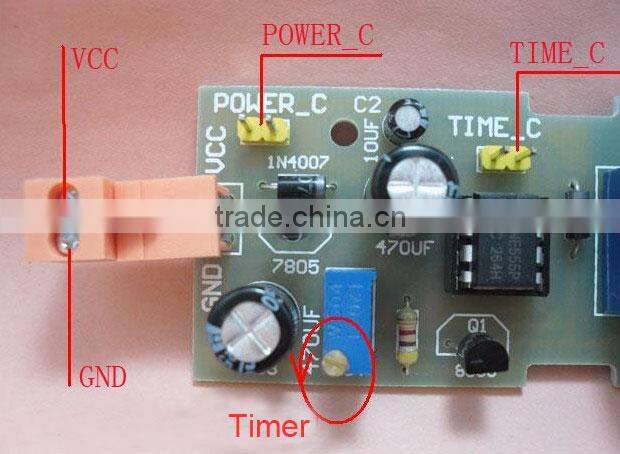

In order to adjust the delay time in a more convenient way,  you need a choose a short-circuit cap (TIME_C)
remove shorting cap (TIME_C), it is 5 seconds delay, to delay from 5 seconds to 5 minutes , need put on the TIME_C shorting cap.

When the input signal 5-7V, POWER_C shorting cap plug;

7V-12V input signal when, POWER_C shorting cap removed.

Package include:


1 pc x NE555 Timer Delay Switch 1-300 second 5-12v DC input TIME OVER RESET

with connectors
