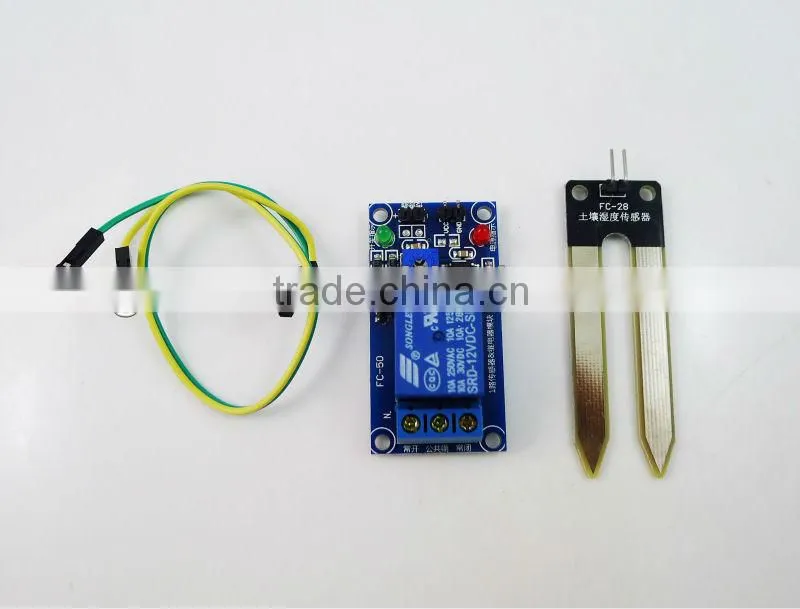

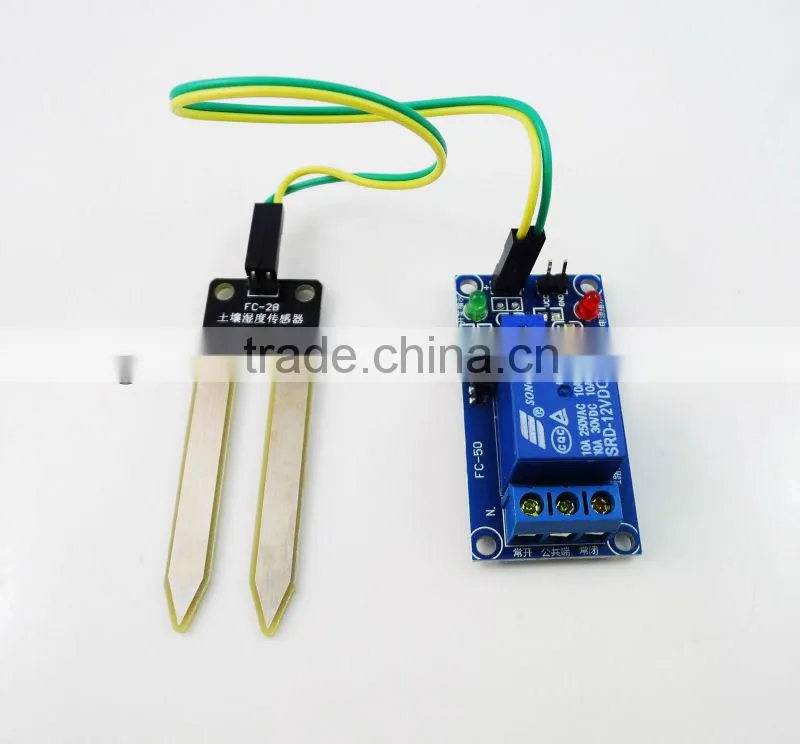

Help CenterAutomatic Watering Soil Humidity Sensor Controller Module 12V Soil Humidity Sensor Controller Module
Related Products
-
Thermal Relay Control Sensor Module DC 12VUS$ 0.1 - 3.4MOQ: 10 Pieces -
Light Detection Switch Photosensitive Sensor Relay ModuleNegotiableMOQ: 20 Pieces
-
Relay Control Module for Ard Uino Robot Kit DC 12V Rain Water Sensor ModuleUS$ 2.3 - 3.7MOQ: 20 Pieces
-
DC 12V Rain Water Sensor ModuleNegotiableMOQ: 20 Pieces
-
12V Soil Relay Module Automatic Watering Soil Humidity SensorUS$ 2.2 - 3.5MOQ: 20 Pieces
Specification
Through potentiometer regulation soil humidity control valve value, can automatically on Garden, Garden automatically watering, family pot soil humidity of control, various electronic competition,, with high power following electric, can control big current device, is less than set humidity automatically started following electric sucking-in, is greater than set humidity automatically disconnect, and has delay function, solve no delay of humidity critical state following electric kept of flashing of problem, is a simple practical of soil humidity control system.
Introduce:
1. used the company produces high quality soil sensor detection of soil moisture, surface plating handle, have widened the induction area, can increase conductivity, protection from exposure to rust problems of soil, longer service life;
2. the product is wide-range control of soil humidity, by adjusting potentiometer control the appropriate threshold, when the humidity drops below a set value, start the relay sucks and shuts the, higher than the set value, the relay disconnects;
3. products with the time delay function, delay 3-5 second, when humidity is detected when in a critical state, the relay will not Flash, strobe behavior occurs;
4. adopt songle relay, can withstand a 1500W load, meet the requirements of most people;
5. the product with power supply and relay sucks and shuts the instructions;
Electrical parameters:
Supply voltage: 12VDC input current: more than 100mA
Load 250V AC or DC 30V 10A (current below this range can be used)
Module description:
1. humidity detection sensor applied to soil;
2. the blue potentiometer modules are for soil moisture threshold adjustment, adjust clockwise, humidity will be under the control of the greater and turning it counterclockwise smaller;
3. because of this module with the time delay function, adjust the humidity value, about every mobility need to wait 5-8 seconds, relay changes in corresponding changes in the Green LED lights, until transferred to meet the requirements.
4. product connection information please refer to the following picture.
Wiring Diagrams:
NO Wiring Diagrams ,when the sensor was triggered, the device will work.
