5V 8-Channel Relay Module With Optocoupler Low Level Triger Stable for Arduino

5V 8-Channel Relay Module With Optocoupler Low Level Triger Stable for Arduino thumbnail-1
5V 8-Channel Relay Module With Optocoupler Low Level Triger Stable for Arduino thumbnail-2
5V 8-Channel Relay Module With Optocoupler Low Level Triger Stable for Arduino thumbnail-3
5V 8-Channel Relay Module With Optocoupler Low Level Triger Stable for Arduino thumbnail-4
5V 8-Channel Relay Module With Optocoupler Low Level Triger Stable for Arduino photo-1
5V 8-Channel Relay Module With Optocoupler Low Level Triger Stable for Arduino photo-2
5V 8-Channel Relay Module With Optocoupler Low Level Triger Stable for Arduino photo-3
5V 8-Channel Relay Module With Optocoupler Low Level Triger Stable for Arduino photo-4
US$ 7 - 8 MOQ: 10 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GEREE
Model Number:
R065M
Contact Supplier Request Quote Chat Now
Shenzhen Geree Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GEREE
Model Number R065M

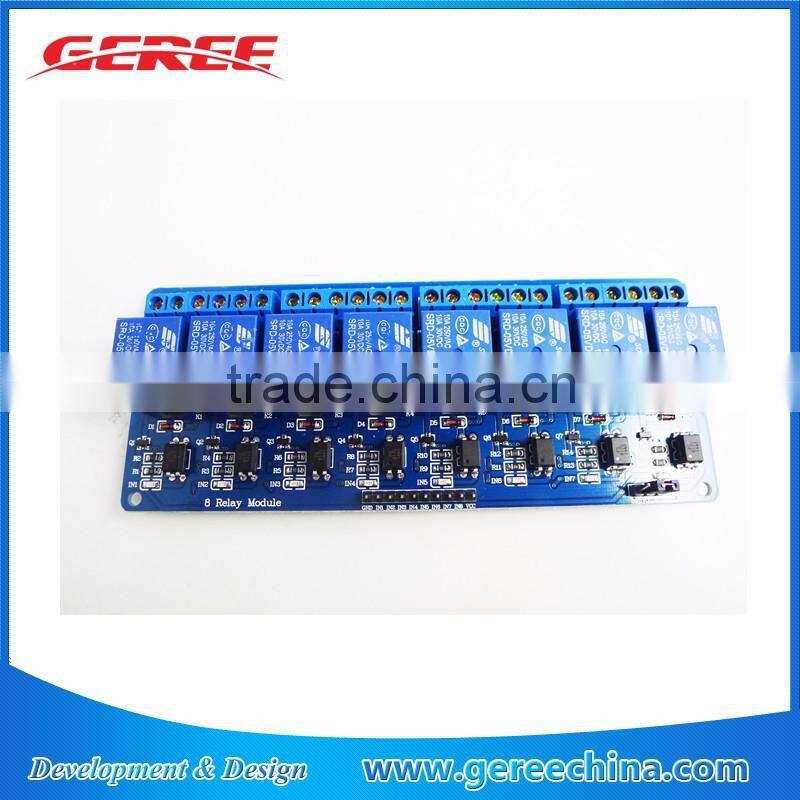

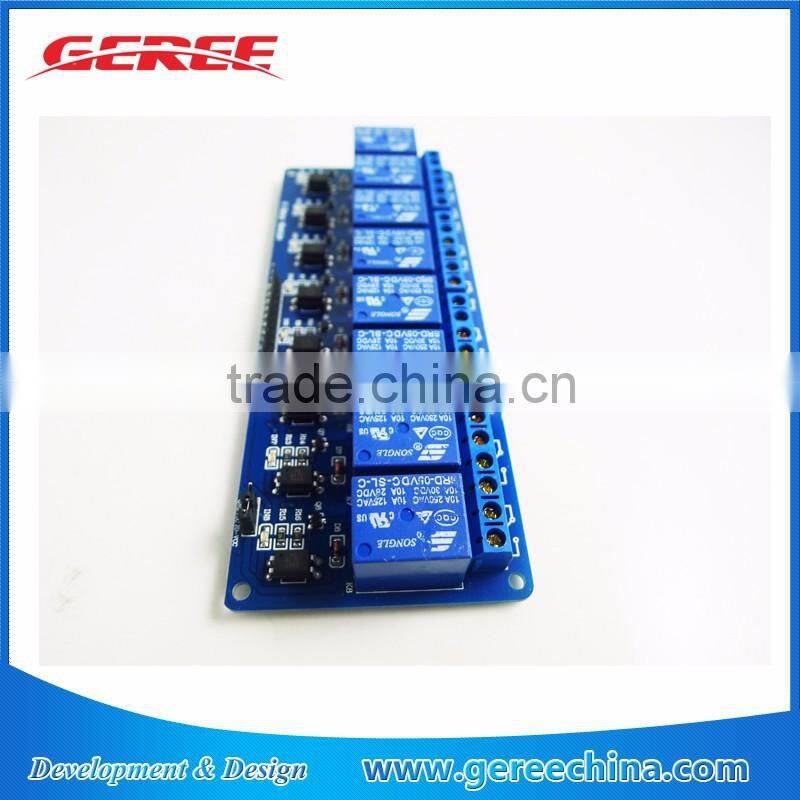

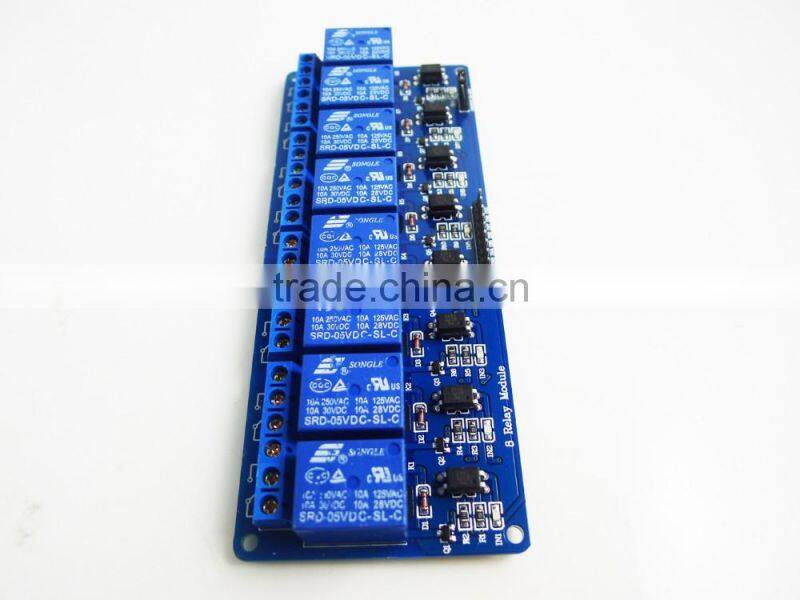

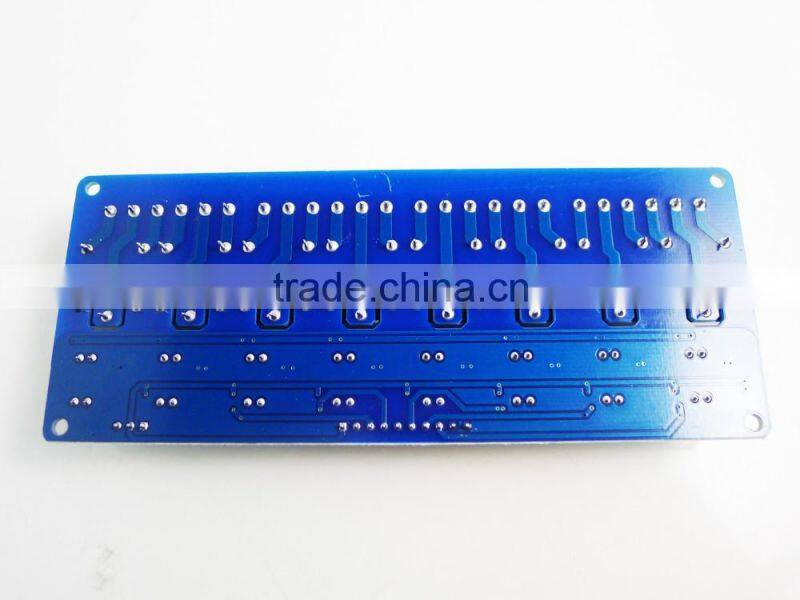

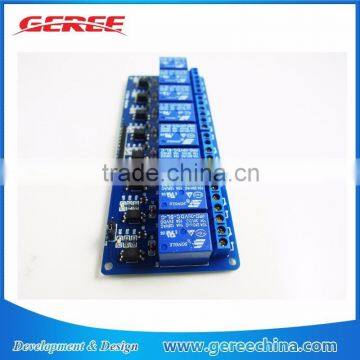

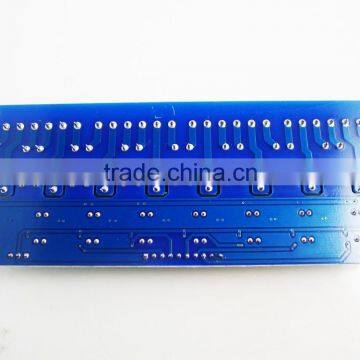

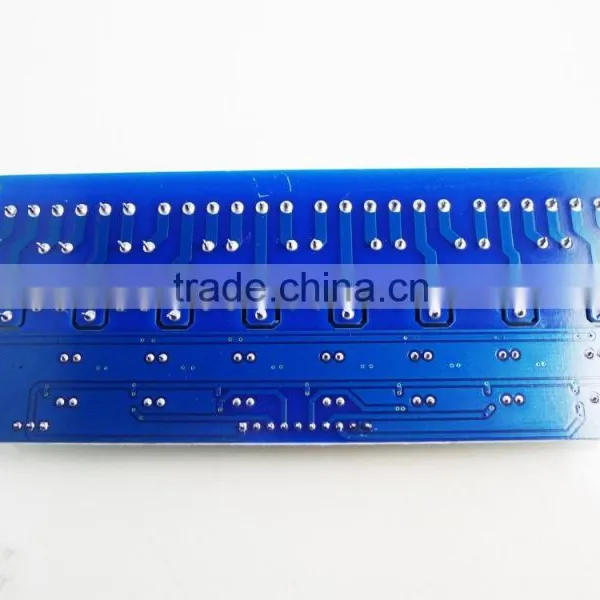

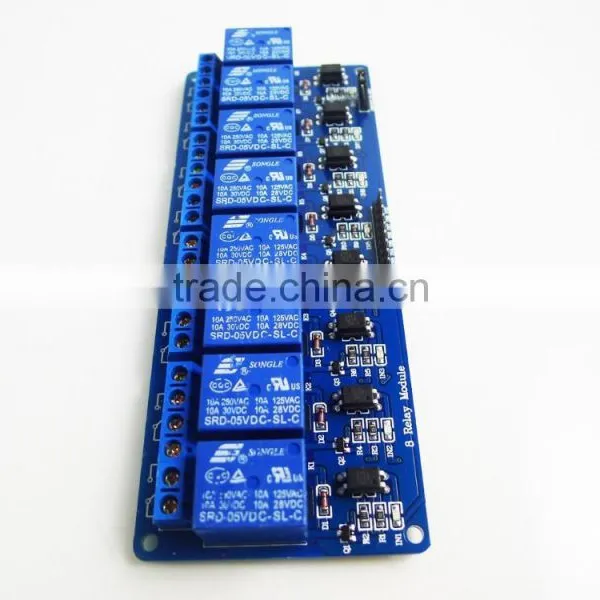

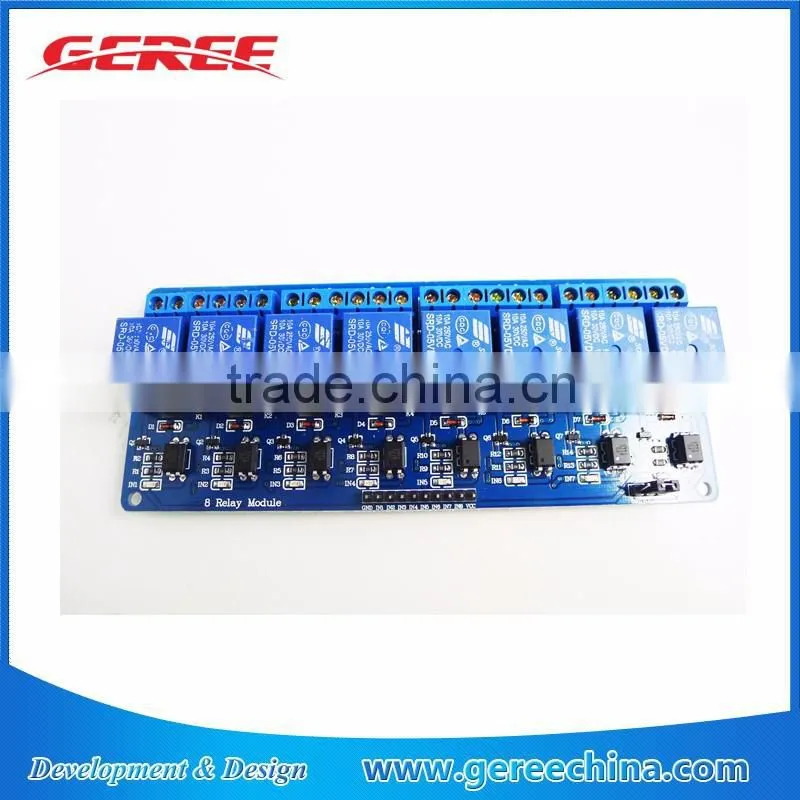

5V 8-Channel Relay Module with Optocoupler Low Level Triger Stable for Arduino



5V 8-Channel Relay Module with Optocoupler Low Level Triger Stable for Arduino5V 8-Channel Relay Module with Optocoupler Low Level Triger Stable for Arduino5V 8-Channel Relay Module with Optocoupler Low Level Triger Stable for Arduino5V 8-Channel Relay Module with Optocoupler Low Level Triger Stable for Arduino

Module Description:

1, the module complies with international safety standards, the load control area and regional isolation

tank;

2, using double-sided FR-4 circuit board design, high-end chip production process;

3, using loose music authentic relay control;

4, with the relay instructions, pull off, disconnect does not shine;

5, the signal input has a low signal, often beginning with a common terminal will be turned on;

6, the relay can control the various devices and the load;

7, 8 and 8 normally open normally closed contact;

8, blue KF301 terminals to the control line is more convenient.

9, Module size: 138m * 56mm * 18.5mm (L * W * H), Weight: 120g

10 with 4 fixing bolt holes, hole 3.1mm, pitch 131mm * 49.5mm

11, finished by 100% functional testing and stability testing

Features:

1.Using high-current relay, AC250V 10A DC30V 10A

2.Contact some independent wiring, safe and reliable

3.Standard interface, can be extended in a variety of development board

4.With fixed screw holes for easy installation

5.Suitable for a variety of platforms such as 51/AVR/AVR/ARM

Module interface:

1, VCC: 5V power supply connected to the positive

2, GND: 5V power supply connected to the negative

3, IN1-IN8: trigger signal, active low



Relay outputs: a 12-line interface, the interface can be directly connected to all leads, user-friendly

1, NO1 - NO8: normally open relay interfaces, relay before the vacant after the pull shorted with COM

2, COM1 - COM8 Relay Common Interface

3, NC1 - NC8: normally closed relay interface relay shorted with COM ago, after the pull-vacant

Uses:

1, support all MCU control.

2, industrial areas;

3, PLC control;

4, smart home control;

Package:
1X 8CH 12V RELAY
