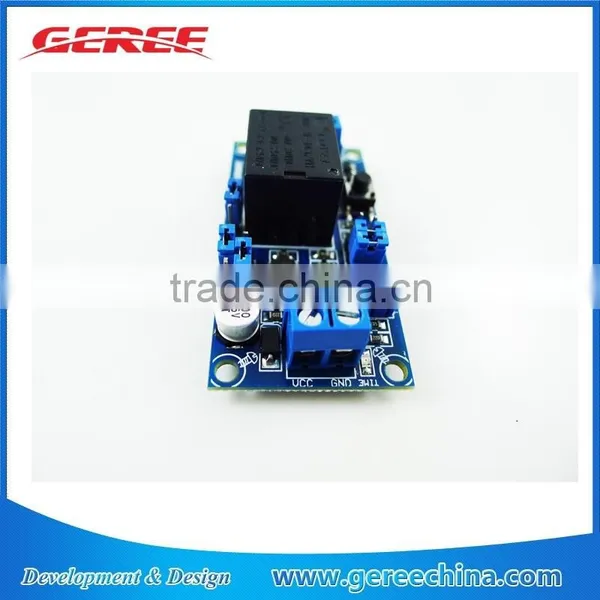

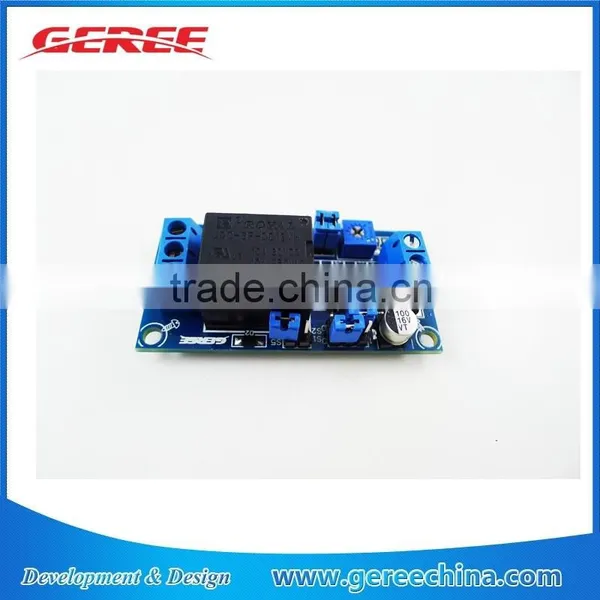

auto timer protection relay 12v 0.1s to 1 hour Turn on/Turn off module with reset button delay relay

DC 12V delay relay Turn on / Turn off module with reset button delay relay


Description :

12V delay turn on or delay off module ,only can use one funcation at the same time.

1. With 8 time ranges selected shortest 0.1s most up to 1 hour

2. Protection against power reversal protection diode, better protection module

3. Can be accessed by a large current load (250V ac 10A or 30V dc 10A)

4. With delay adjustment potentiometer clockwise adjustment time longer

5, with reset button,the button only can reset this relay,haven't the switch funcation.

Function:
Plug On S6 ,delay turn off
plug on s7, delay turn on

Electrical parameter:

Input voltage: 12V

Quiescent dissipation: 5.5mA

Maximum power consumption:42mA

Relay load capacity:

250V 10A AC (2500W ideal power AC)

30V 10A DC (300W ideal power DC

Package:
 1*12V delay relay Turn on/ Turn off module with reset
