Specifications
1) DC DC Converter step down ModuleInput voltage: DC 7-32V
Output voltage: DC 0.8-28V
Output Current: 12A

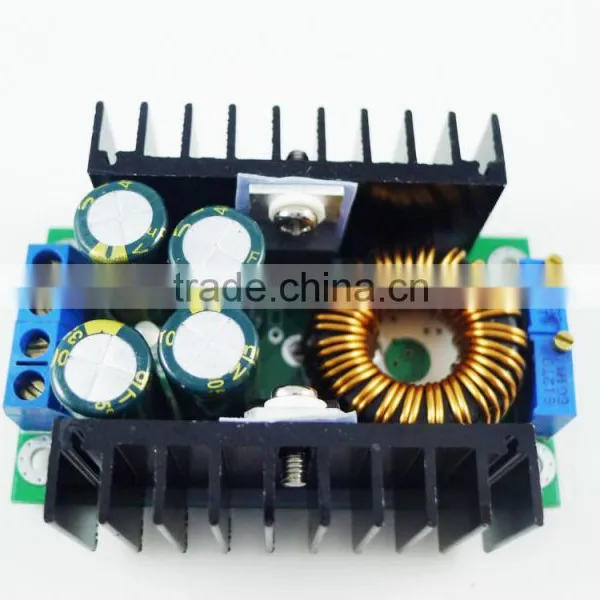

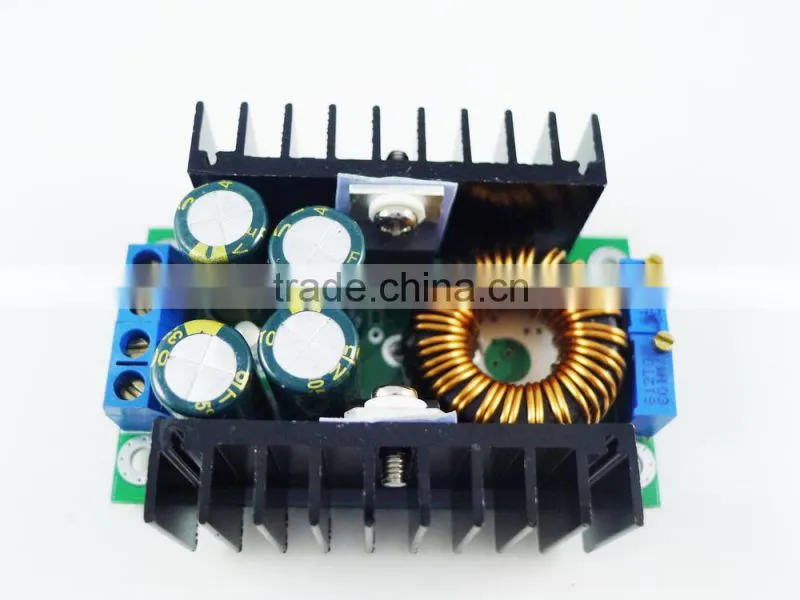

DC CC CV constant current voltage 7-32V input LED drive power module/ power adapter /power supply/ step down
Introduction: The peak output current of 12A
The constant current function is very stable, the temperature drift is less than 5%(20-60℃,5A).
Parameters: Module Properties: non-isolated step-down module, constant current and constant voltage module (CC CV)
Input voltage: DC 7-32V
Output voltage: DC 0.8-28V (continuously adjustable)
Output Current: 12A MAX (please add cooling fan if power tube temperature exceeds 65℃ )
Constant current range :0.2-12A ( sontinuousely adjustable )
Dropout voltage: 1V Output Power: Maximum power around 300W
Conversion efficiency : up to approximately 95%
Output ripple : about 50mV when input 24V output 12V 5A
Operating temperature : Industrial grade (-40 ℃ to +85 ℃)
No-load current : Typical 20mA Load regulation : ± 1% ( constant voltage)
Voltage regulation : ± 1% Dynamic response speed : 5% 200uS Potentiometer adjustment: clockwise ( increase ) , counterclockwise ( decrease ). The potentiometer close to the input port is for voltage adjust (CV), the potentiometer close to the output port is for current adjust(CC).
Input Reverse Polarity Protection: No
Output prevent backflow : No
size:about 65*47*23.5mm
Package :
1 X DC-DC power
