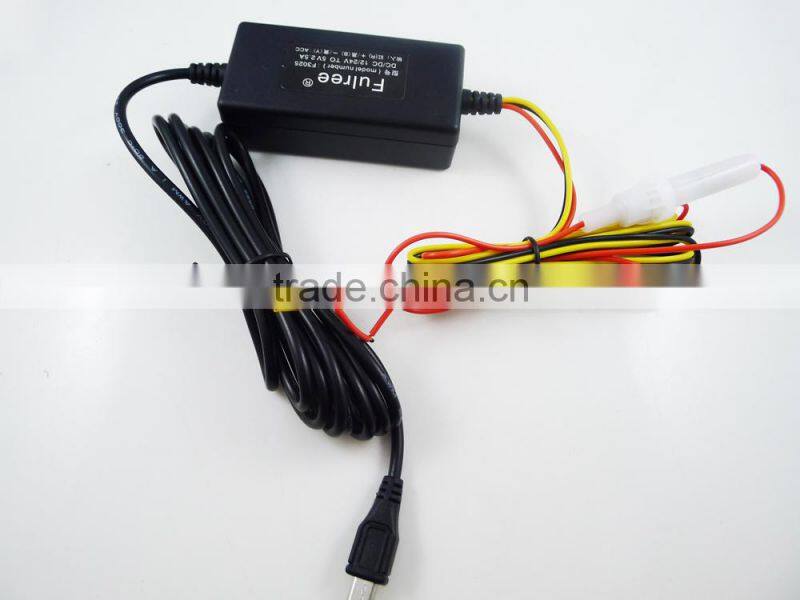

DC DC 12V 24V To 5V 2.5A 2M Micro USB Charger Output With Timer Car Power Supply Module

DC to DC Converter 12V 24V Step down to 5V micro USB Power Supply


Features:
    Input voltage: 11.5-30VV
    Output voltage: 5V

    Output Current: 2.5A MAX , can use for 2.5A current .
  power cable lenght : 1M ,micro usb output lenght : 2M


  100% Brand new

    Module Properties: non-isolated buck, with low voltage protection,with timer

    Light compact, convenient to use and transport

  Operating Temperature: Industrial (-40℃ to +85℃) (ambient temperature exceeds 40 degrees, lower power use, or to enhance heat dissipation)

Short circuit protection: red DC +, black DC -, yellow, VCC .
Voltage selection:1.(11.5V/23.5V) 2.(12V/25V) 3.(13.2V/26V) 4.(13.8V/28V)                      Time selection:5.(12H) 6.(24H) 7.(48H) 8.infinity
For example:press button 1 and 5 will run protection when the voltage is 11.5V or 23.5V and the monitor time is 12 hours (if the input power lower than 11.5V or 23.5V,then ouptut is not available)
The default setting is 1 and 5 when the current setting is not the above 8 status


Package:
 1 x DC12v 24V to 5v  Converter
