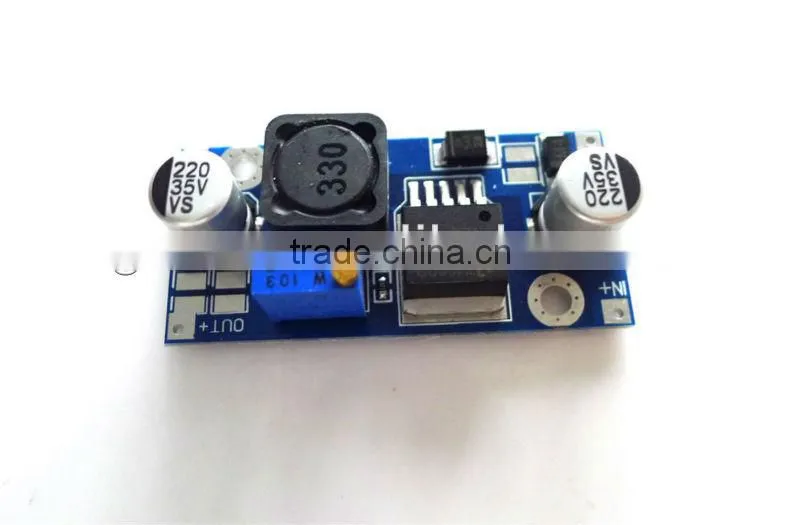

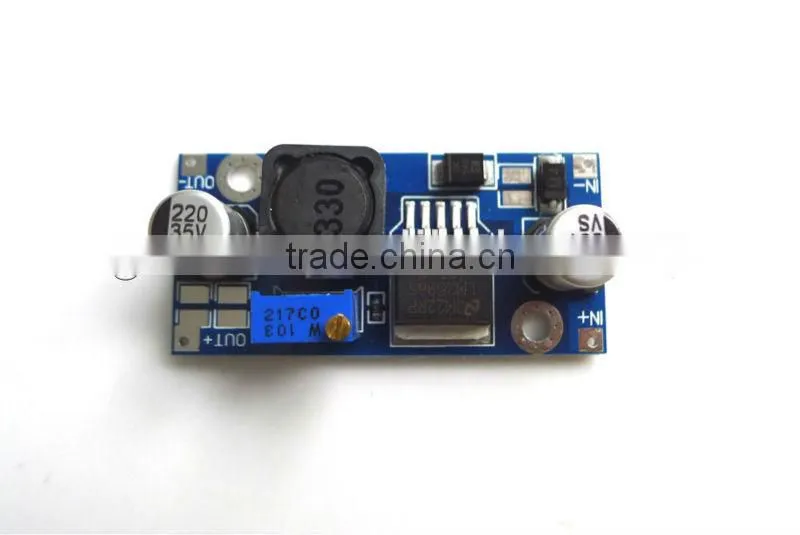

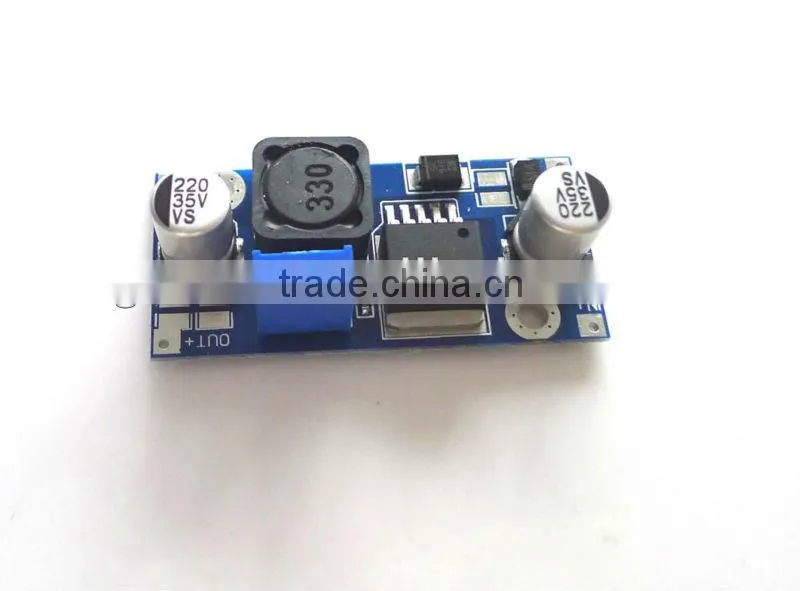

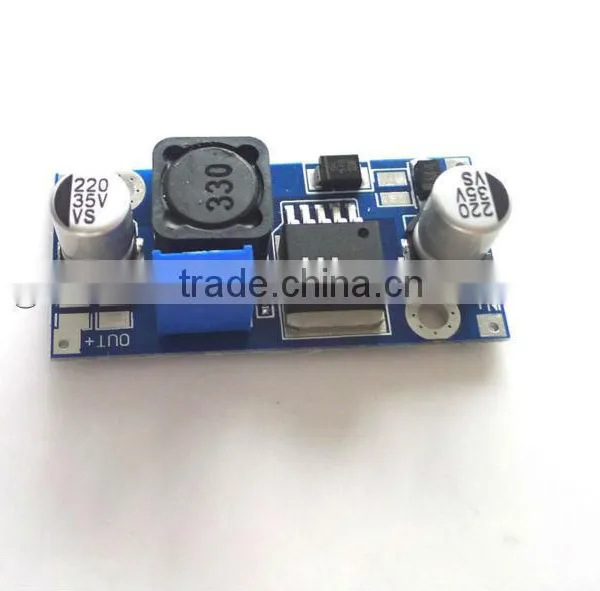

DC-DC Buck Converter Step Down Module LM2596
- 100 Piece / Pieces per Month
- shenzhen/HK
- T/T Credit Card
Product Details
Model Number: | D0011V | Type: | Voltage Regulator | Brand Name: | Geree |
Place of Origin: | Guangdong, China |
Product Description
Specifications
1)DC DC Converter LM2596 Module Output 1.23V-30V2)Input voltage: 4V-35V
3)Output voltage:1.23V-30V
Features :
DC-DC Buck Converter Step Down Module LM2596 Power Supply Output 1.23V-30V
Basic Attributes | |||
Module property | Non-isolation buck | Rectification mode | Non-synchronous rectification |
Input voltage | 4V-35V | Output voltage | 1.23V-30V |
Input current | 3A(maximum) | Conversion efficiency | 92%(highest) |
Switching frequency | 150KHz | Output ripple | 30mA9maxmum) |
Load regulation | ±0.5% | Voltage regulation | ±2.5% |
Work temperature | negative 40 to Nonnegative 85 | Overall dimension | 48*23*14(length*width*height)(mm) |
Payment Terms: T/T &Western Union are warmly welcomed.Paypal is also acceptable for samples.
Shipping Terms: Sample order send by DHL, Fedex,UPS or EMS
Delivery Time: 3-5 working days,some items are in stock.
Packing: ordinary gift box can make the package according to customers' requirements
Warranty time : we provide 12 month warranty for all of our goods.
