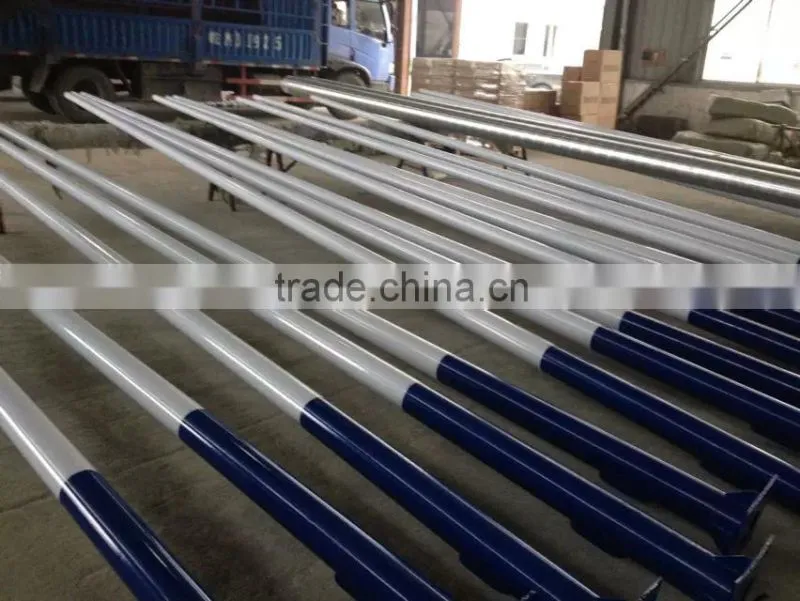

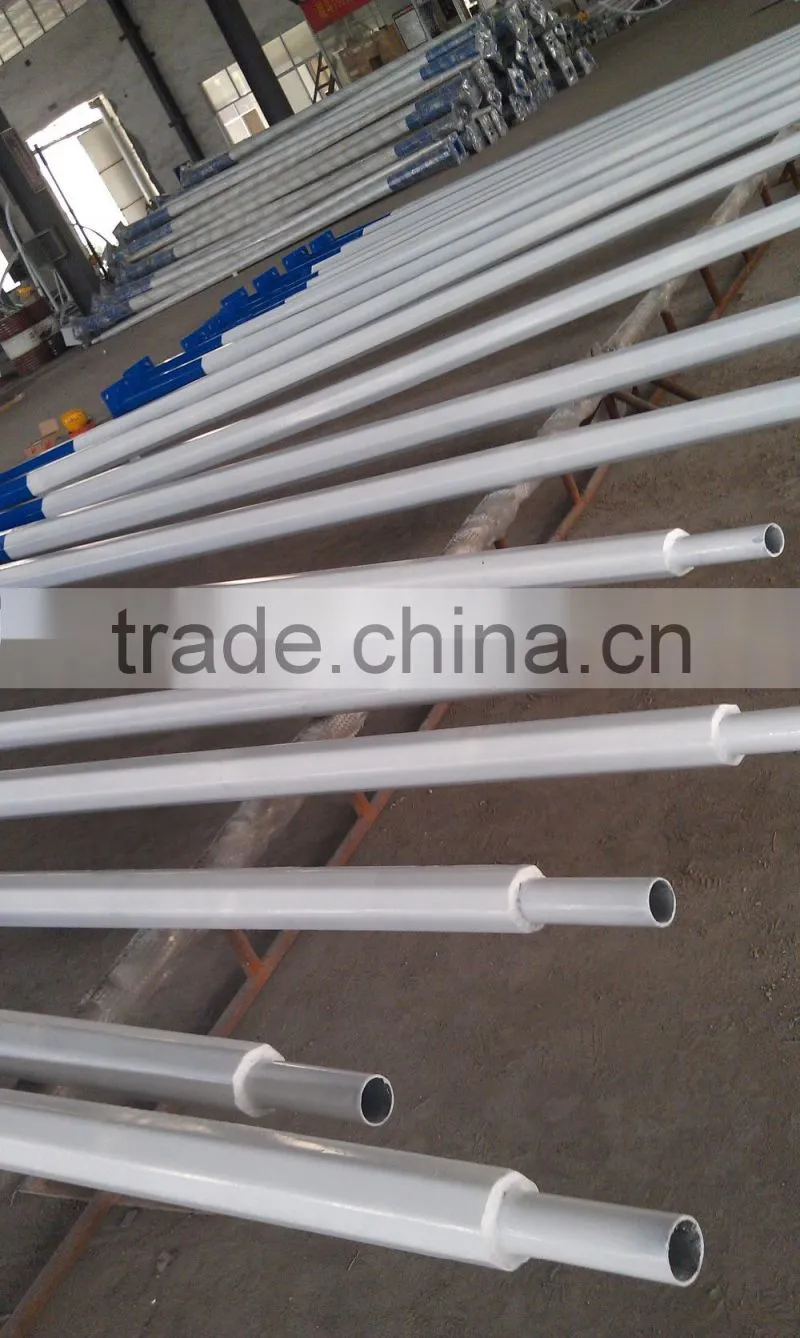

Q235B steel column for street lighting

Specification:

Type

steel lamp poles

Shape

Conoid ,Multi-pyramidal,Columniform,polygonal or conical

Material

Usually   Q345B/A572,minimum yield strength>=345n/mm2
Q235B/A36,minimum yield strength>=235n/mm2
As well as Hot rolled coil from Q460 ,ASTM573 GR65, GR50 ,SS400, SS490ST52

Torlance of dimenstion

-0.02

Design Load in Kg

300~ 1000 Kg appliced to 50cm from the to pole

Surface treatment

Hot dip galvanized Following ASTM A 123, color polyester power or any other standard by client required.

Standard

Octagonal tapered column
Certified by SIRIM QAS INTERNATIONAL.
Approved by JABATAN KERJA RAYA MALAYSIA.
Conforms to Standard:
Pole design : BS EN 40
Material : BS EN 10025 S275 / JIS G3101 SS400
Welding : BS 5135
Galvanizing : BS 729 / ISO 1461 ASTM A 123

Length of per section

Within 14m once forming without slip joint.

Suit for

Highway
Roadway
Residential subdivisions
Commercial development

Option

Height from 6m to 12m
Flange mounted or planted type
Variable arm length from 0.125m to 3.0m with single or double arm type
Variable spigot size from 35mm to 60mm.

Production Process

Raw material test → Cutting →Molding or bending →Welidng (longitudinal )→Dimension verify →Flange welding →Hole drilling →Calibration → Deburr→Galvanization or powder coating ,painting →Recalibration →Thread →Packages
