LED Volt Ammeter 4.5-24V to 1-20V 2A DC Converter Constant Voltage Current

Name: LED Volt Ammeter 4.5-24V to 1-20V 2A DC Converter Constant Voltage Current
Brand: Geree
SKU: 118673449
Availability: InStock

Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Model Number:

D0053V

Type:

Voltage Regulator

Brand Name:

Geree

Shenzhen Geree Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/HK

Delivery Detail:

Delivery time depends on order quantity.

Model Number D0053V

Type Voltage Regulator

Brand Name Geree

Place of Origin Guangdong, China

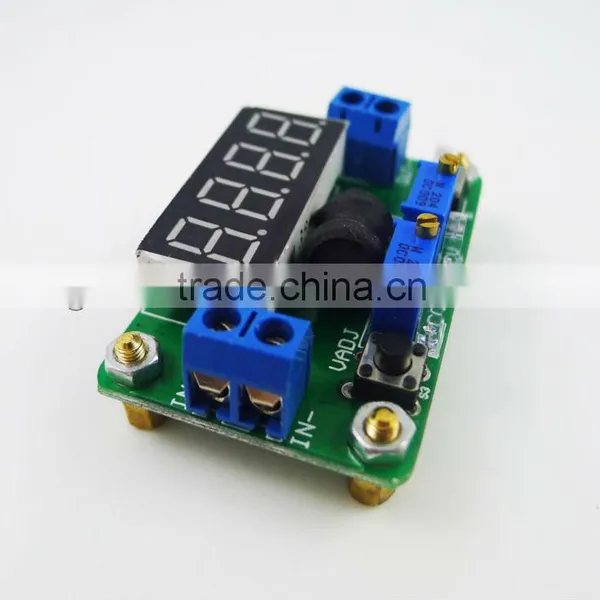

DC Step Down Converter 2A Constant Voltage Current with Voltmeter Ammeter Red LED

Features :
--Input voltage: DC 4.5v-24V
--Output Voltage: DC 0.93V-20V (Buck Mode, input voltage must be 2V higher than output voltage)
--Output Current: 0-2.00A (Adjustable)
--Output Power: 20W MAX
--Ammeter: 0.00-2.00A ( display output current only)
--Voltmeter: input 4.5-24V, output 0.9-20V
--Display led Color: Red
--Size: 52 mmx 33 mmx 18 mm
--Left Switch: Boot default display voltage **. * U, Press switch display *.**A, Press switch again display voltage and current 5S alternate display, Press Switch again display voltage.
--Right Switch: switch for display Input Voltage or Output voltage
--LED Indicator: Blue for Constant Current Working status; Red for input voltage status.
--Left VADJ potentiometer: Clockwise step up voltage, Counterclockwise step down voltage (constant voltage working status)
--Right VADJ potentiometer: Clockwise step up current, Counterclockwise step down current (constant current working status)
Note:
Please DOn't use the module to charge battery. if the output voltage stop charging, the battery voltage will damage the DC Converter. or please install a diode at the output postive port.
IF you need adjust the current ,please use the Multimeter Current position to short the output , then the "CC" LED will on , you can adjust the current now.
