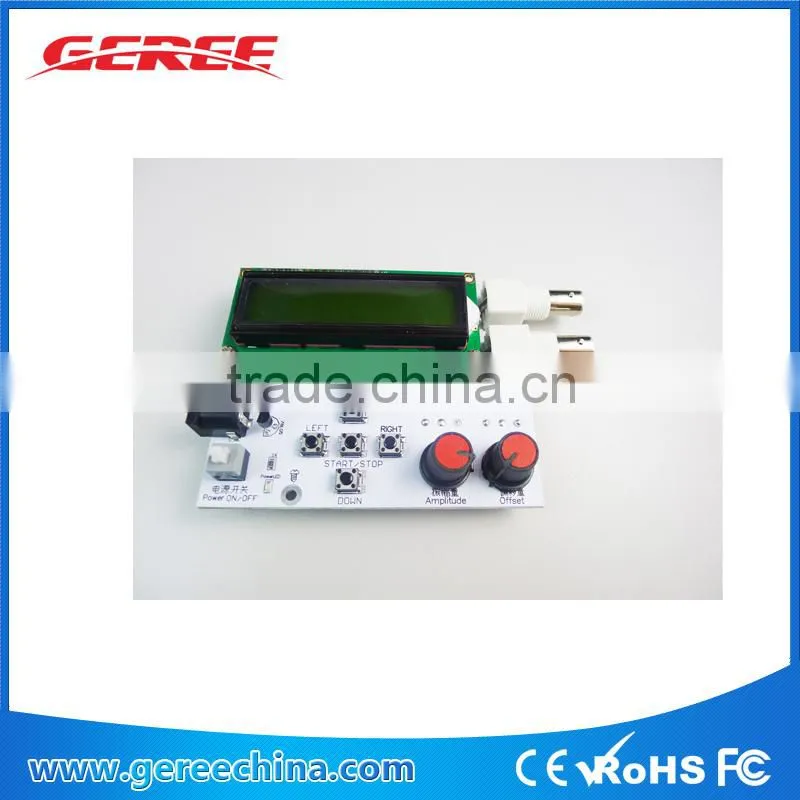

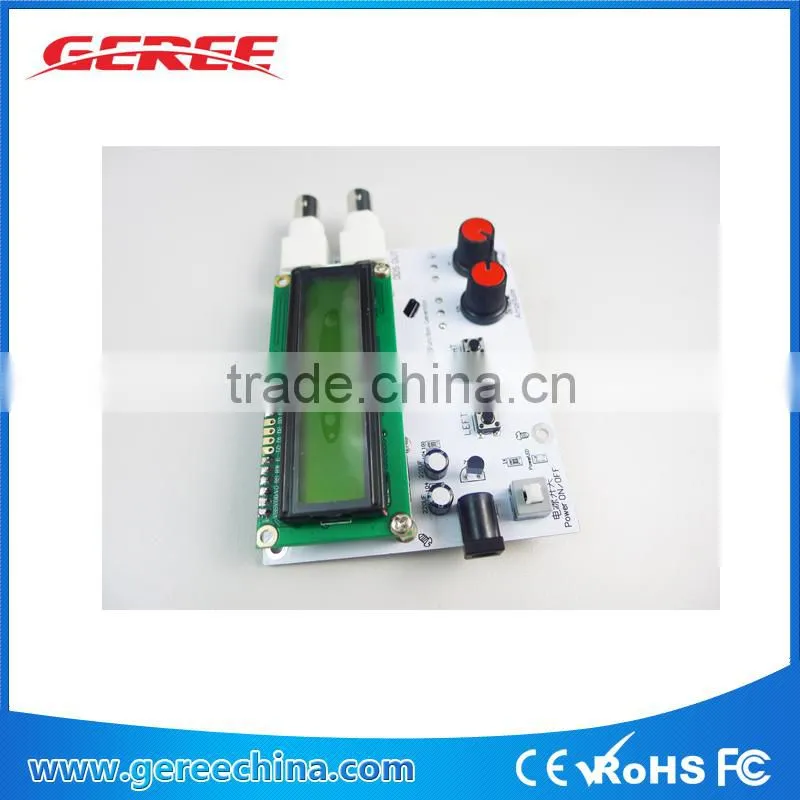

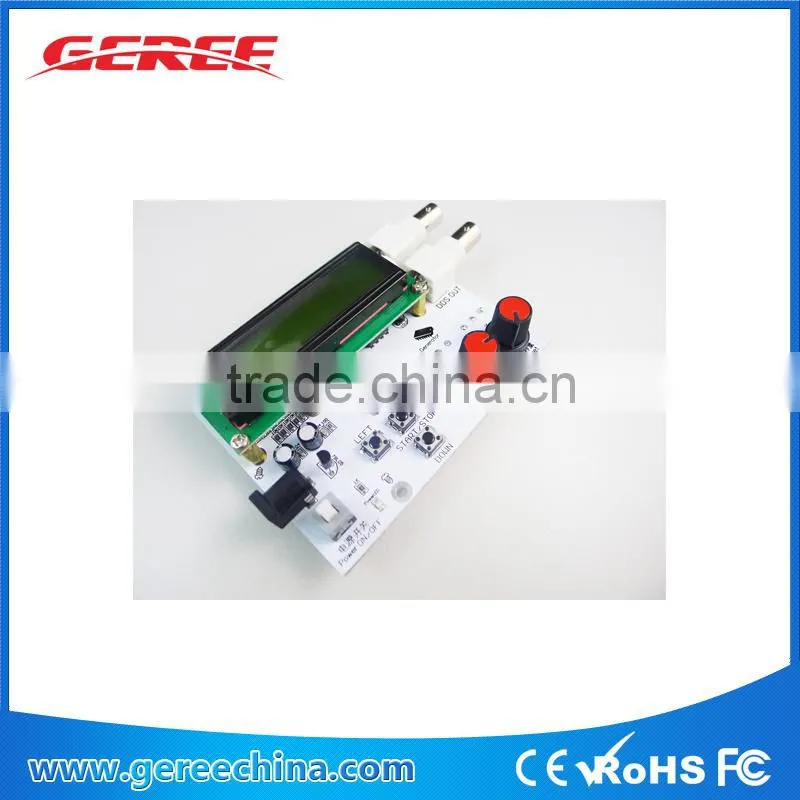

DDS Function Signal Generator Module Sine Square Sawtooth Triangle Wave
Specification:
. Operating voltage: DC7V-9V
. DDS frequency range: 1HZ-65534Hz.
. High-speed frequency (HS) output up to 8MHz; 1MHZ/2MHZ/4MHZ/8MHZ
. DDS signal amplitude of the offset amount can be adjusted separately by two potentiometers;
. DDS signals: sine wave, square wave, sawtooth, reverse sawtooth, triangle wave, the ECG wave and noise wave.
. 1602 LCD menu;
. Intuitive keyboard.
. Section into the value: 1,10,100,1000,10000 Hz;
. The power automatically restore the last used configuration.
. Offset: 0.5pp-5Vpp
. Amplitude amount: 0.5Vpp-14Vpp
. Output impedance: 20-200 ohms
KEY FUNCTIONS:
The UP output waveform select
The DOWN output waveform select
LEFT output frequency -
RIGHT output frequency +
STOP / RUN the output stop / start
"UP" key waveforms order:
ECG = electrocardiogram wave (in the OFF state, the "left "and "right" keys to set the output frequency. Middle button start, all of the following waveform set)
Rev Sawtooth = reverse sawtooth
SawTooth = sawtooth
Triangle = triangle wave
Square = square wave
sine = sine wave
High speed (High frequency output, must meet the HS OUT interface)
noise = Noise wave
Freq Step = Step frequency value
Package List:
1 x New DDS Function Signal Generator Module Sine Square Sawtooth Triangle Wave
