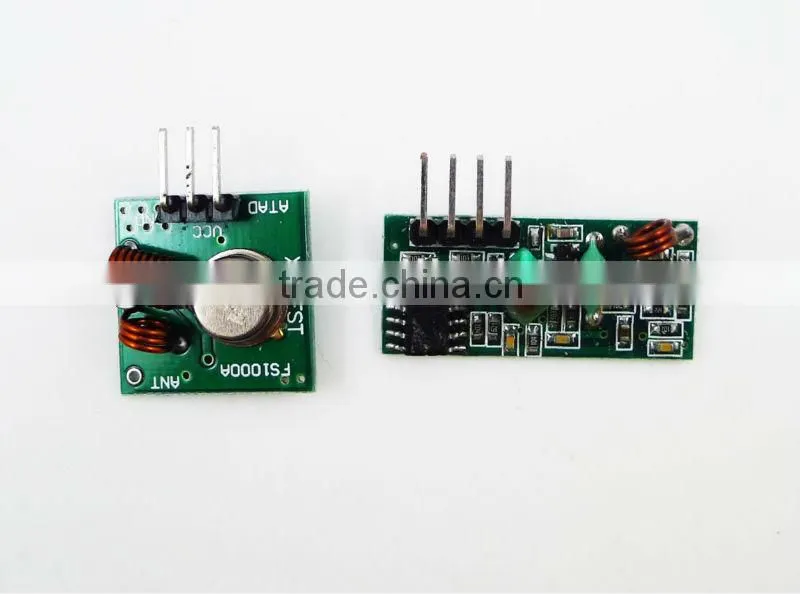

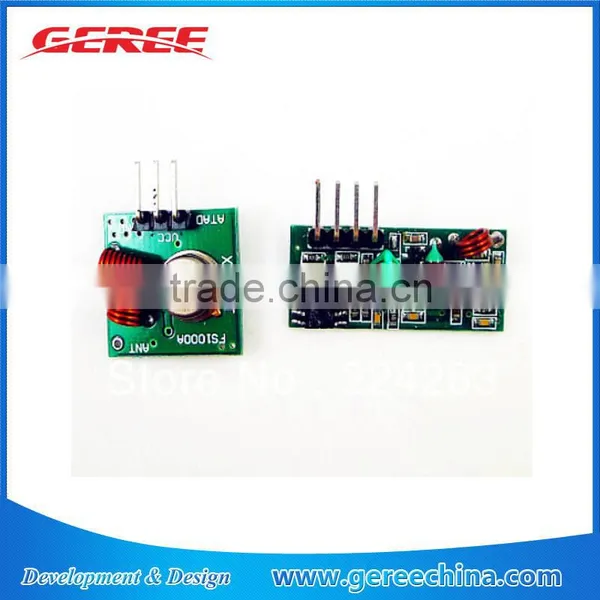

433MHZ or 315MHZ RF transmitter and receiver link kit for ARM/MCU WL
- 100000 Piece / Pieces per Month
- shenzhen/HongKong
- T/T Credit Card PayPal
Product Details
| Place of Origin: | Guangdong, China | Brand Name: | Geree | Model Number: | F0010M |
Product Description
Specfications:

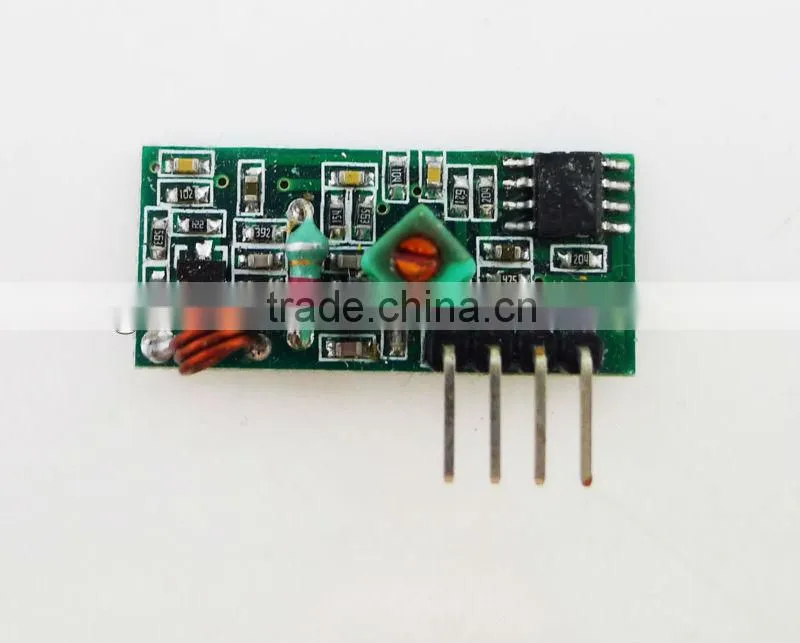

Receiver
- Model:MX-05V
- Voltage:DC5V
- Current:4MA
- Frequency:433.92MHZ
- Sensitivity:-105DB
- Antenna:32CM single core wire,heliciform shaped
- Size:30*14*7mm

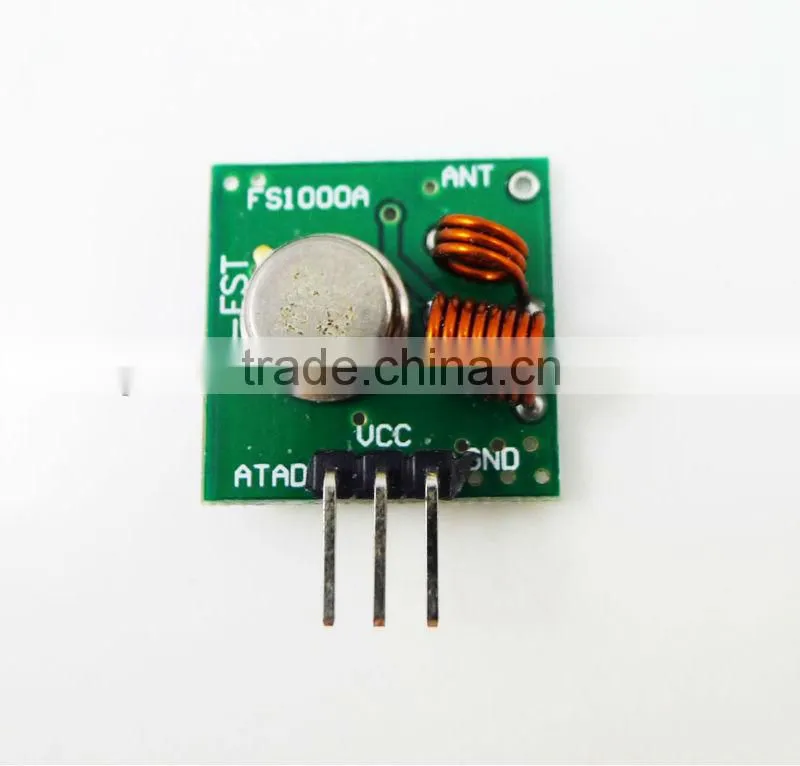

Transmitter:
- Model:MX-FS-03V
- Transmitter distance:20-200Meters(influenced the voltage)
- Voltage:3.5-12V
- Size:19*19mm
- Working mode:AM
- Transmitter speed:4KB/S
- Transmitter power:10mW
- Frequency:433M
- Attenna:25cm Single core wire or mutil-core wire
- Pin arrangement: left-right(DATA;VCC;GND)
Applications:
- Remote controller,receive modulr,car bugular alarm,Rolling door,window,remote control LED, Amplifer and so on.
Payment Terms: T/T &Western Union are warmly welcomed.Paypal is also acceptable for samples.
Shipping Terms: Sample order send by DHL, Fedex,UPS or EMS
Delivery Time: 3-5 working days,some items are in stock.
Packing: Polybag can make the package according to customers' requirements
Warranty time : we provide 12 month warranty for all of our goods.
