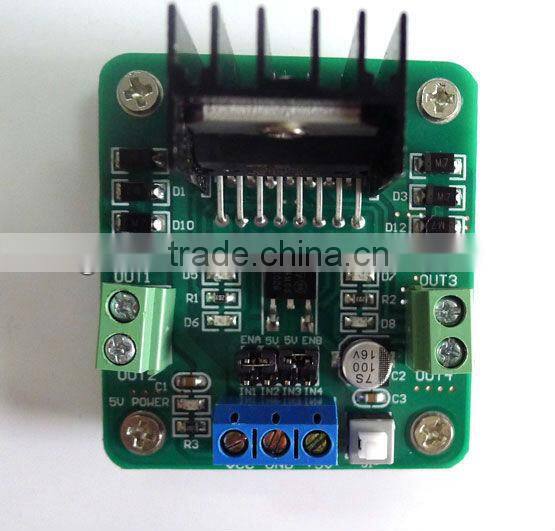

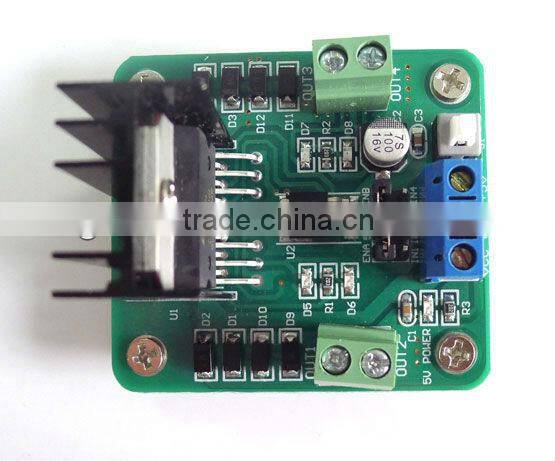

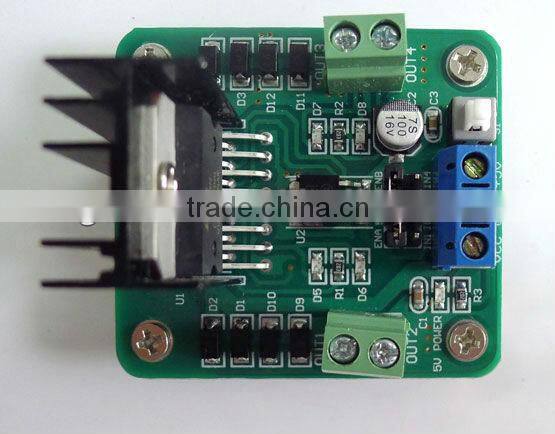

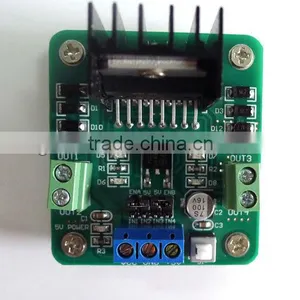

L298N Step Stepper Motor Driver Controller Module for Robot Smart Car

Name: L298N Step Stepper Motor Driver Controller Module for Robot Smart Car
Brand: Geree
SKU: 118669197
Availability: InStock

Negotiable MOQ: 20 Pieces (Price negotiable depending on order volume and customization)

Key Specifications

Model Number:

F026M

Type:

Other, module

Brand Name:

Geree

Shenzhen Geree Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen/HongKong

Delivery Detail:

Delivery time depends on order quantity.

Model Number F026M

Type Other, module

Brand Name Geree

Place of Origin Guangdong, China

Specifications

1)100% Brand New
2)good quality,fast shipping
3)some items are in stock
4)12 months warranty

5pcs L298N Stepper Motor Driver Controller Board Module

Feature:

Driver: L298N Dual H Bridge DC Motor Driver IC
Driven part of the terminal supply area Vs: +5 V ~ +35 V; such as the need to take power within the board, the supply area Vs: +7 V ~ +35 V
Driven part of the peak current Io: 2A
The logical part of the terminal supply area Vss: +5 V ~ +7 V (can take power within the board +5 V)
The logical part of the operating current range: 0 ~ 36mA
Control signal input voltage range:
Low:-0.3V ≤ Vin ≤ 1.5V
High: 2.3V ≤ Vin ≤ Vss
Enable signal input voltage range:
Low: -0.3 ≤ Vin ≤ 1.5V (control signal is invalid)
High: 2.3V ≤ Vin ≤ Vss (control signal active)
Maximum power consumption: 20W (when the temperature T = 75 °C)
Storage temperature: -25 °C ~ +130 °C

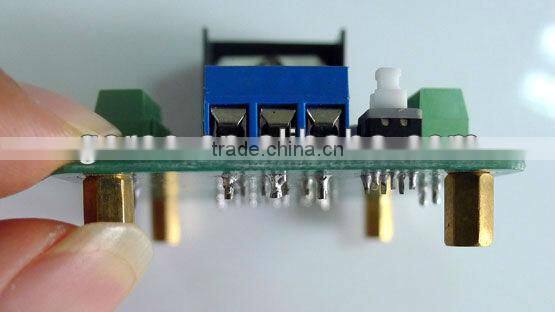

Driver Board Size: 55mm * 49mm * 33mm (with fixed copper pillar and the heat sink height)
Driver Board Weight: 33g
Other Extensions: control of direction indicators, the logic part of the plate to take power interface.
