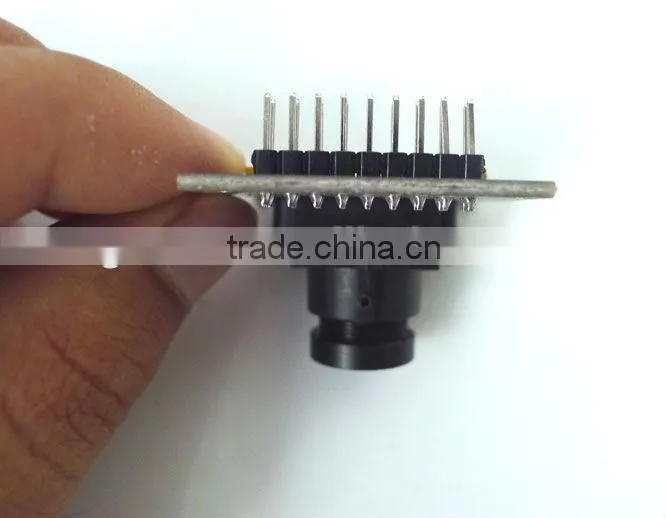

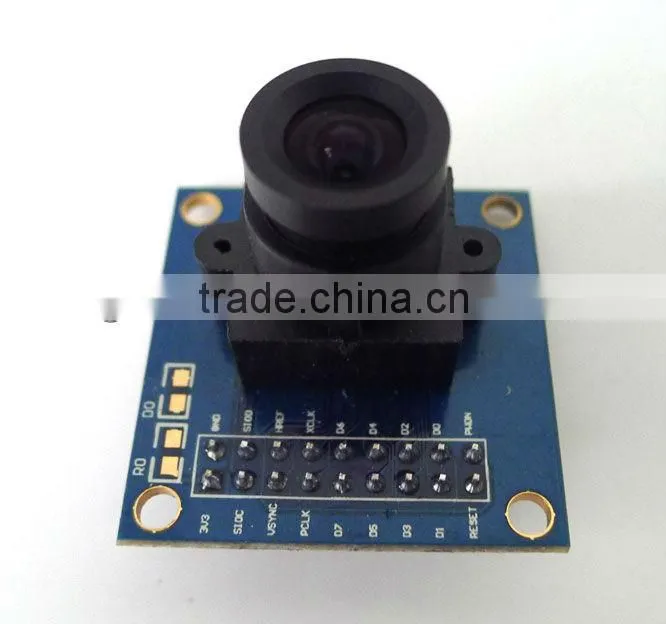

Help CenterVGA OV7670 Camera Module Lens CMOS 640X480 SCCB Compatible W/ I2C Interface
Related Products
-
650nm 5mW Dot Red Laser Module 6.5mm for ProjectsUS$ 0.1 - 0.46MOQ: 50 Pieces -
3 IN 1 0.36" RED Real Time + Thermometer + Voltmeter Clock ModuleNegotiableMOQ: 20 Pieces
-
Best Price Correlation Photoelectric Sensor Infrared Correlation Count SensorNegotiableMOQ: 20 Pieces
-
RS232 Serial Port To TTL Converter Module SP3232 With Dupont CableNegotiableMOQ: 20 Pieces
-
NRF24L01 2.4GHz Wireless Transceiver Module Arduin NEW Model F0018MNegotiableMOQ: 20 Pieces
Specifications
VGA OV7670 Camera Module Lens CMOS 640X480 SCCB Compatible W/ I2C InterfaceFeature:
Brand new and high quality.
High sensitivity for low-light operation.
Low operating voltage for embedded application.
Standard SCCB interface compatible with I2C interface.
Raw RGB, RGB (GRB4:2:2, RGB565/555/444),YUV(4:2:2) and YCbCr(4:2:2)output format.
Support VGA, CIF and from CIF to 40 x 30 format.
Vario Pixel method for sub-sampling.
Auto Image Control: AEC, AGC, AWB, ABF, ABLC.
Image Quality Control: Color saturation, hue, gamma, sharpness and anti-blooming.
ISP includes noise reduction and defect correction.
Support image scaling.
Lens shading correction.
Flicker 50/60Hz auto detection.
Color saturation level auto adjust.
Edge enhancement level auto adjust.
De-noise level auto adjust.
Parameter:
Photosensitive Array: 640 x 480.
IO Voltage: 2.5V to 3.0V.
Operating Power: 60mW/15fpsVGAYUV.
Sleeping Mode: <20μA.
Operating Temperature: -30 to 70 deg C.
Output Format: YUV/YCbCr4:2:2 RGB565/555/444 GRB4:2:2 Raw RGB Data (8 digit).
Lens Size: 1/6".
Vision Angle: 25 degree.
Max. Frame Rate: 30fps VGA.
Sensitivity: 1.3V / (Lux-sec).
Signal to Noise Ratio: 46 dB.
DynamicRange: 52 dB.
Browse Mode: By row.
Electronic Exposure: 1 to 510 row.
Pixel Coverage: 3.6μm x 3.6μm.
Duck Current: 12 mV/s at 60°C.
PCB Size (L x W): Approx. 1.4 x 1.4 inch / 3.5 x 3.5 cm.
